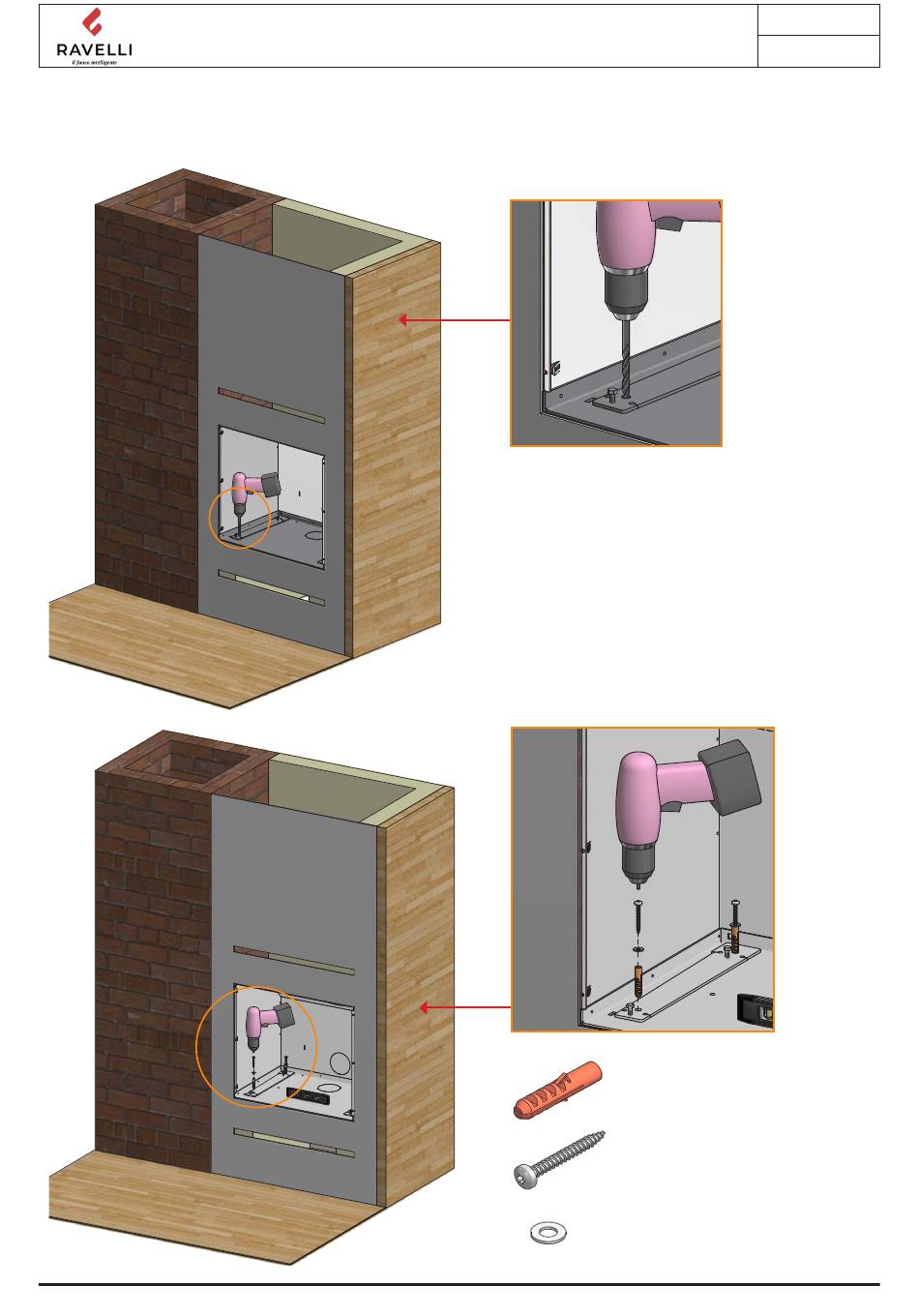

To secure the cassette, pre-drill the 4 holes with a 10 mm drill bit
Forboring af huller for kassette
EMNE:
VÆGT:
N/A
AREAL:
Use and maintenance manual Chronos, Zeus, Ercole e Ermes
TG.NR:
N/A
DATO: 23-04-12
SIGN:
Krog Iversen & Co A/S
DK-5492 Vissenbjerg©
Scan 1001
NAVN:
MATERIALE:
DIMENSION:
C:\Working Folder\Designs\Scan 1001\91001013.idw
STI:
Mount the rawl plugs, screws and discs.
Make sure that the cassette is level before
fastening it.
In order to fasten the insert, you can use the
delivered torx key that you will find
in the bag in the combustion chamber
91001013
BC
Scan 1001
NAVN:
MATERIALE:
DIMENSION:
C:\Working Folder\Designs\Scan 1001\91001016.idw
STI:
Rev.1 12/12/2019
Page 71
Forboring af huller for kass
EMNE:
Fastspænding kassette
EMNE:
4 x Rawl plugs 10 x 50
4 x Torx screws 6 x 50
4 x Washers Ø6,5 / Ø16 x 1,1
VÆG
N/A
AREAL:
N
VÆGT:
N/A
AREAL:
