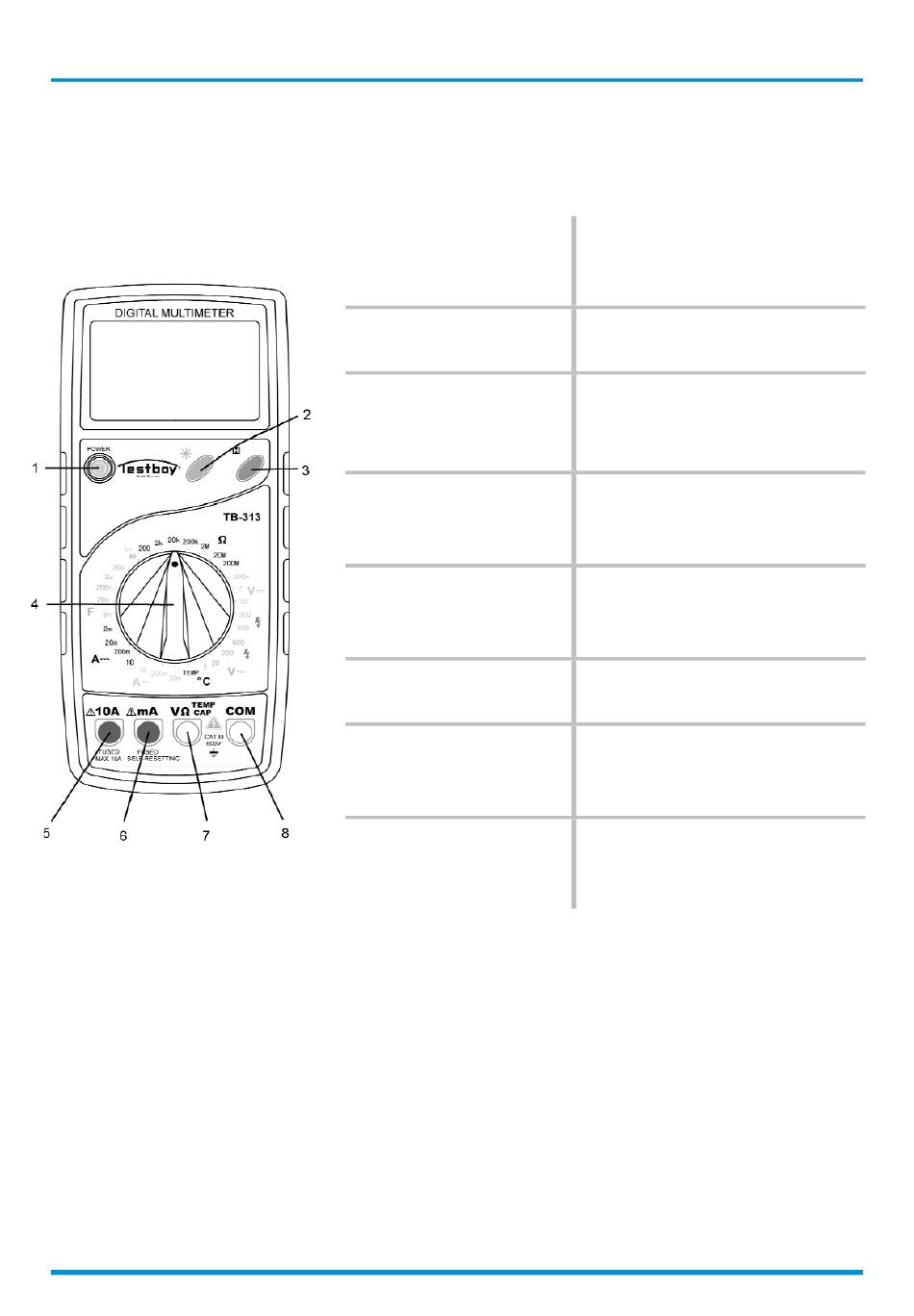

Switches, buttons and sockets description

32
(1) ON/OFF switch
(2) Lighting switch
(☼)
(3) Memory log but-
ton (H)
(4) Measuring functi-
on selector switch
(5) 10 A socket (left)
(6) mA socket
(7) Input socket
V/Ω/TEMP/CAP
(8) Ground socket
The device is turned on and
off using the "POWER"
push-button switch.
Press this button to turn the
torch function on and off.
Press this button to store the
actual measurement value.
Use the rotary selector
switch to select the various
measurement modes.
The 10 A socket must be
used for current measure-
ments above 200 mA.
For current measurements
up to 200 mA.
Red test lead for all types of
signals supported by the in-
strument.
Black test lead for all types
of signals supported by the
instrument.
