Note: The Injector Manifold should be installed above water level
whenever possible. If the Injector Manifold is installed below water
level, take proper precautions to prevent water from draining through
the injector and damaging the surrounding area. For example, use
clamps on all tube connections, run ozone tubing above water level
and provide adequate drainage around the pool equipment.
Pool

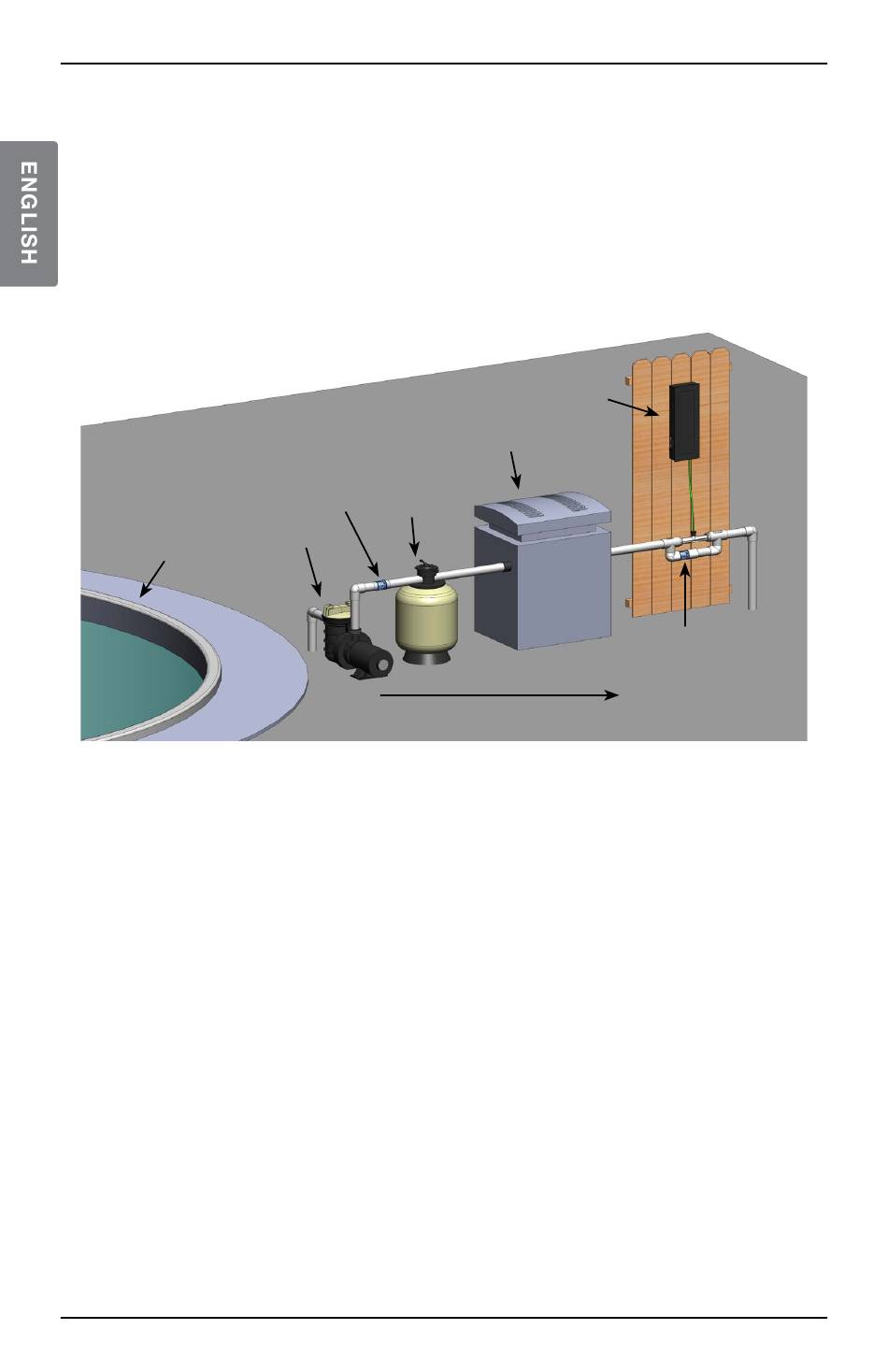

Figure 2: Injector Manifold Mounting Location
Locate an appropriate section of the return line and install the injector
manifold with PVC cement. Be very careful to observe and follow the
correct water flow direction (as indicated by the arrow on the injector
manifold).
2D-2. Water Check Valve
If the pool equipment is mounted above the water line, a check valve
must be installed between the pump outlet and the Injector Manifold.
This will prevent the pump from draining and losing its prime (when
not in use).
Note: If a 1/3# DELCheck
chlorine feeders.
2D-3. Pressure Test
If a pressure test is required, it should be performed prior to
connecting the Ozone Gas Line. Install the 3/4" pipe cap provided
onto the Injector for the pressure test.
