Eclipse Installation & Operations Manual
SECTION 2. Installation
2A. Location
The DEL Eclipse units are designed for wall mounting. Mount
generator in a clean, protected area, either indoors or outdoors
(preferably out of direct sunlight). Locate generator out of reach of
sprinklers or drainage spouts. Allow sufficient access for maintenance,
all tubing, and electrical wires. Ozone generator should be installed at
least (not less than) one foot above the maximum water level.
Note: Remove and discard the foam packaging from inside the
enclosure before mounting the unit.
2B. Wall Mounting
1. Open the Enclosure Door and locate the three mounting holes on
the back wall of the Enclosure. There will be two holes located near
the top on the left and right and one located in the center near the
bottom. Refer to Figure 1 for clarification.
4-2162-01 Rev.E
5.77
2.68
19.60
EC-40

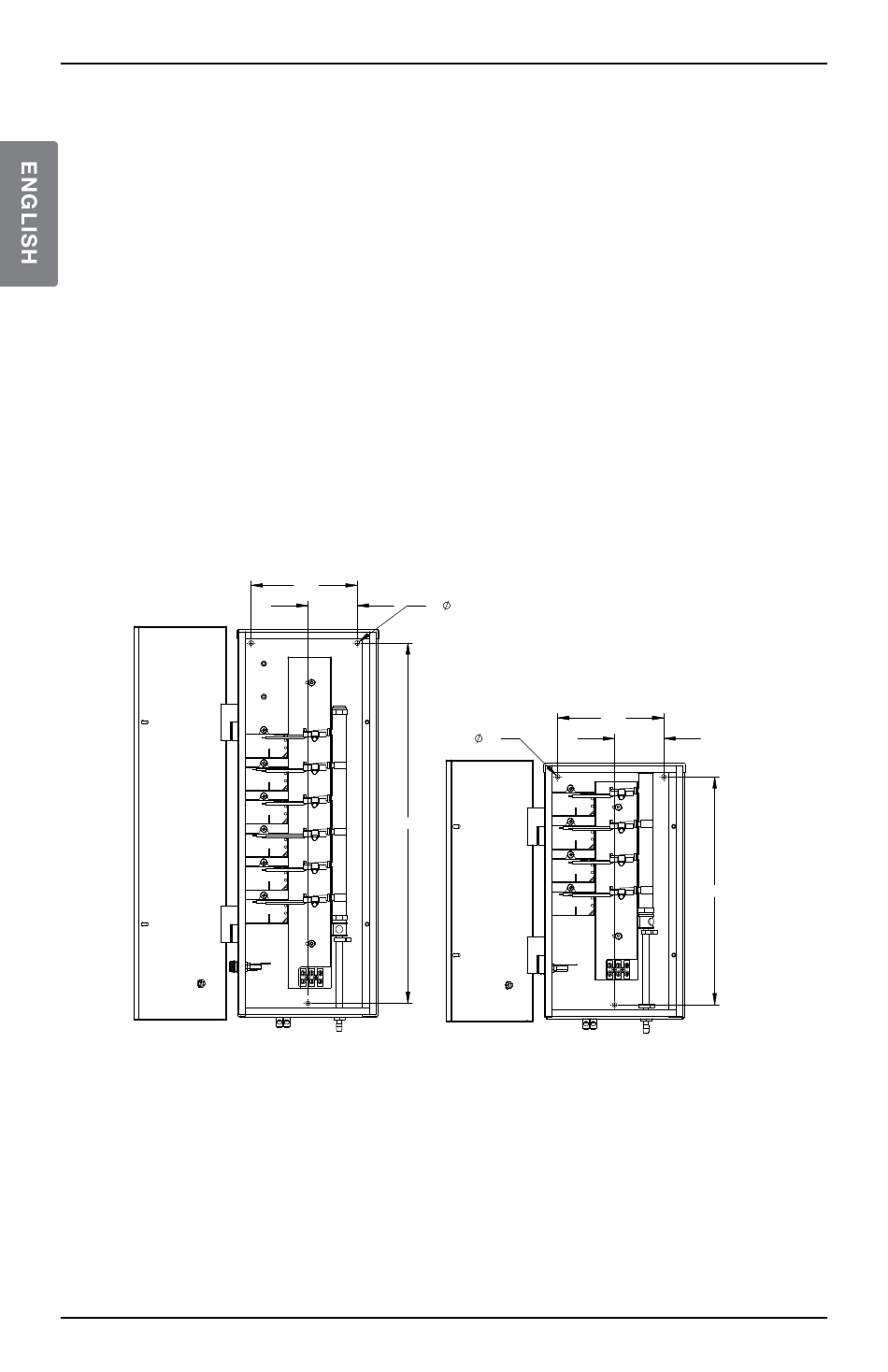

Figure 1: Mouting Hole Dimensions
3X
.25
3X
.25
EC-10 AND EC-20
2
5.77
2.68
12.40
