Row, block, angled installation
Row (up to 5 tanks),
block (2-25 tanks)
and angled instal-
lation (3-14 tanks)
D
GB
continue for multi-
row installation
F
I
NL

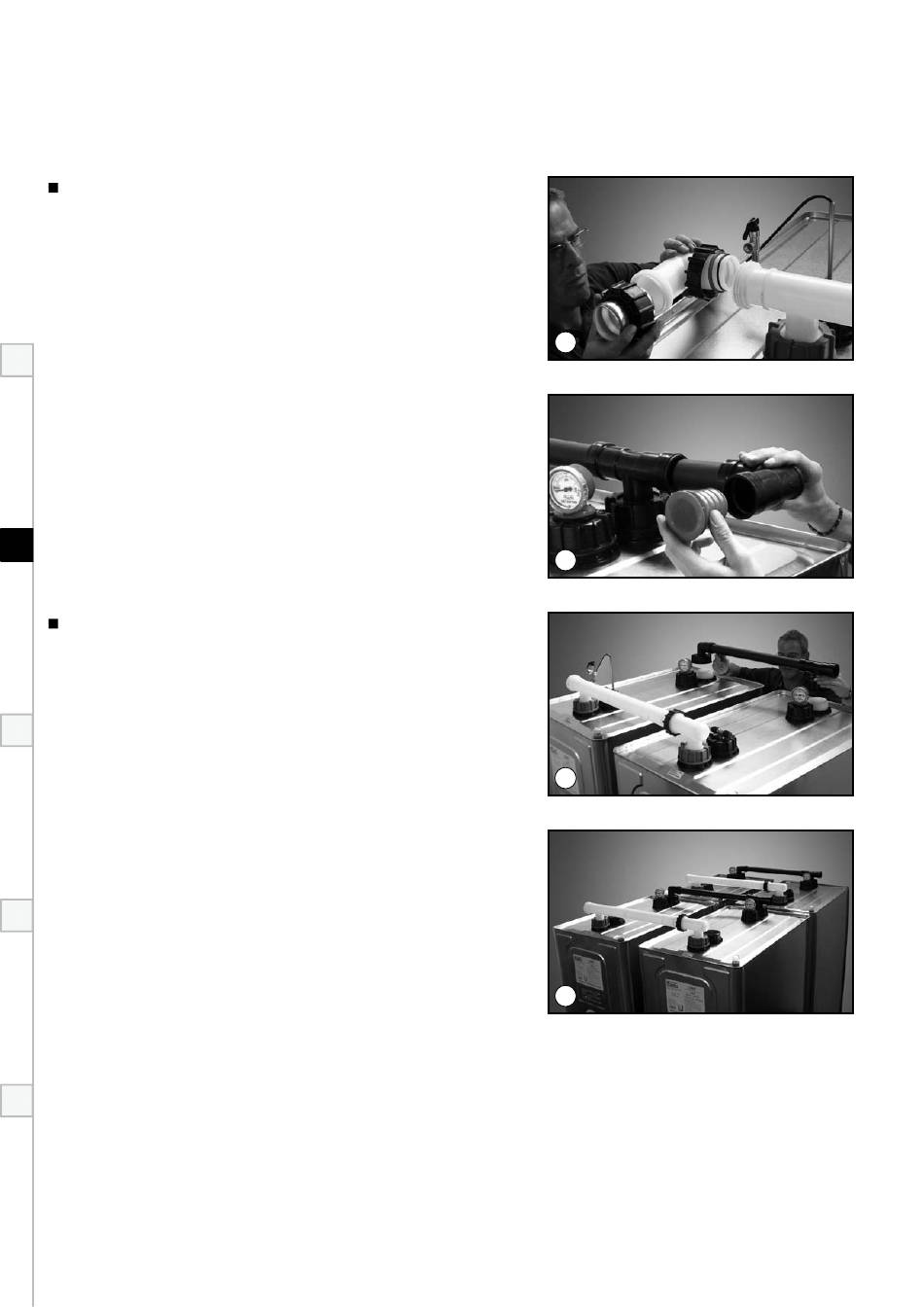

only with single-row installation! install angled
manifold and fill connection, lubricate O-rings.
only with single-row installation! install angled
manifold and compression seal for ventilation
connection . the single-row tank system is now
completely installed.
install the next tank row onto mounting frame .
tank centre-to-centre distances between the rows
of 780 mm with dWt 620 (1150 mm with dWt
1000) are permitted with accompanying spacers .
Screw fill-level meter into the bushing on every 3rd
tank connection .
Repeat installation steps for the lines for each
tank row as indicated in images 2, 3, 5, 6, 7, 8,
except ...
9
10
11
12
