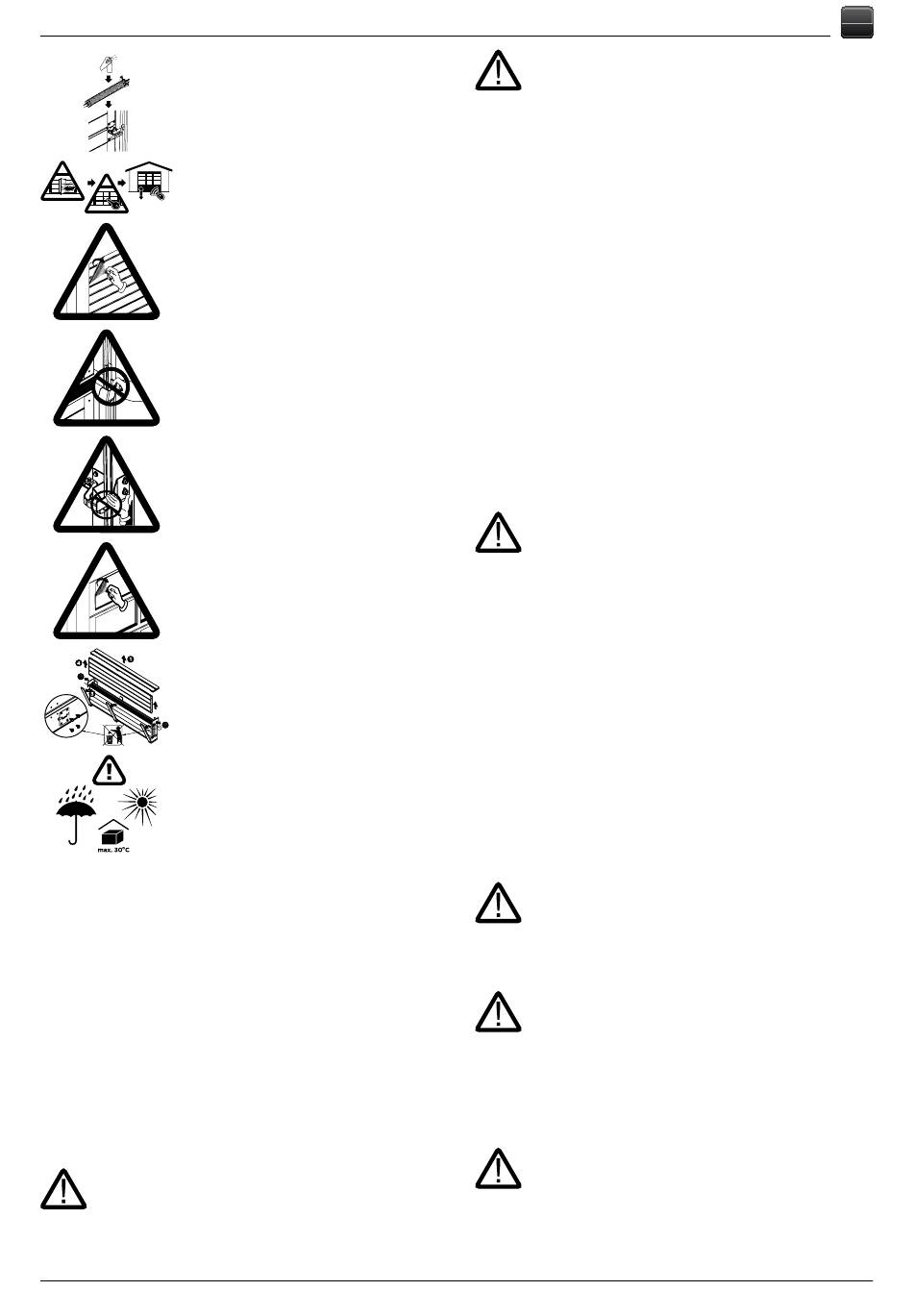

[C000386] Follow the Operating and Mainte-
nance manual to inspect and maintain the door.
Before commissioning the door and during its use
relubricate the rollers, hinges, guards, springs and
bearings.
[C000387] Close the wicket door and lock it with
the key before operating the garage door.
[C000388] Remove the protective film from the
door sheet metal skin immediately after installation.
[C000389] Do not remove or modify any compo-
nent of the garage door.
[C000390] Keep your hands and all objects clear
from the working range of all moving components of
the door and the door latch, lock and guides.
[C000391] Remove the protective film from the
glazing immediately after installation.
[C000392] Removing the panels from the packag-
ing. Do not discard the panel fixing screws, you can
reuse them to install the hinges.
[C000393] Protect the garage door in the packag-
ing against weather.
[A000005] 4. ASSEMBLY RECOMMENDATIONS
Prior to assemble and operate the door, the guidelines contained in this instruction
should be read carefully. All assembling and operating instructions must be strictly
observed. It ensures the correct assembly, and durable and failure-free operation.
All works related to door assembly must be carried out in described order.
[A000006] 5. REQUIRED ASSEMBLY CONDITIONS
The door should be used and operated in compliance with its intended use.
Selection and application of doors in construction industry should be based on
technical documentation of the facility developed in compliance with regula-
tions and standards in force.
[B000005] The doors can be mounted to reinforced concrete walls, those
made of bricks, or steel frameworks. A room intended to mount the doors should
be finished completely (plastered walls, finished floor), walls must not have any
faults in quality of work. The room should be dry and free of chemicals being
harmful for coating paints.
Both side walls, and frontal wall and door assembly opening lintel must be verti-
cal and perpendicular to the floor, and must be finished.
It is prohibited to install the door in a room in which fin-
ishing works are still to be done (plastering, gypsum fin-
ishing, grinding, painting, etc.).
Floor in bottom sealing area must be levelled and constructed in such a way
as to ensure free water drain. Appropriate ventilation (drying) of garage must
be ensured.
Technical description IIiO/BS/SNP/01/2020/ID-95695

Assembly and Operating Instructions – Sectional garage door UniPro SNP
Installing of electrical drive unit to the door by profes-
sional installer or competent person is to be done ac-
cording to the Assembly and Operating Instruction of
the drive unit.
• [C000184] It is prohibited to open the door leaf if the
guides are not mounted.
[B000092] The area to install the door should be free from any pipes,
cables, etc.
[D000635] 6. INSTALLATION INSTRUCTIONS
These actions require a Professional Installer or may only be performed by Com-
petent Persons.
Keep this pack list for future reference. Before attempting to install the product
verify the dimensions (width and height) of the door installation opening. Care-
fully follow the depicted installation actions in the given order. The maximum
tightening torque of sheet metal screws to the panels is 7 to 9 [Nm]. Higher
values may shear the fastener.
Fig. 10 Install the gasket on the door frame.
Screw the back fastening section to the vertical tracks by passing
the screws through the inner holes to build the "assembly frame".
Screw the bracket sheet panel.
Fig. 15 Align the frame with the wall opening with a spirit level as the
reference, make the track flush with the opening edge and fasten
the frame to the wall.
Fig. 20 Install the horizontal track. Screw down the suspenders to the hori-
zontal track.
Fig. 25 Verify the diagonals of the tracks, readjust if necessary. Fasten the
horizontal tracks to the ceiling; keep the required dimensions.
Never install the tracks in a way that will not prevent
them from shifting when operating the door.
Fig. 35 Install the first bottom panel.
Fig. 35.2 If installing a pull handle on the door, fix it so that it will not shift to
the sides.
Fig. 40 Installing the hinges.
Fig. 45 Install the spacer bush on the first hinge roller.
Fig. 50-60 Install all other panels. Install the panels with a gap of 1 to 2
[mm] in between. Place approx. 2 [mm] thick cardboard pieces
between each panel, near each hinge, to keep the proper clear-
ance between the panels during their installation. Remove the
cardboard after fastening the hinges.
Fig. 65 Install the top roller holder to have the roller touch the bottom part
of the track (in manually operated doors) or the top part of the
tract (in power-operated doors).
Fig. 70 Lift the door leaf. Prop the raised door leaf to prevent it from falling
down.
Fig. 75 Pass the double cable over the top roller at the door frame.
Pass the double cable over the double pulley.
Attach the double cable end to the bolt driven into the bracket
sheet panel. Secure the cable from coming off by securing the nut
on the bolt.
The installed cables must not cross one another.
Fig. 80.1 Install the double pulley guard, then fasten the spring to the catch.
Fig. 80.2 Fasten the other catch to the spring bottom.
Fig. 80.3 Mount the spring on the tension adjuster.
First adjust the proper cable tension and the spring
tension, then drive in the safety screw of the spring
bottom catch.
Fig. 85 Verify that the tension of the cables and the springs is correct.
Readjust if necessary:
• if the door leaf falls down significantly, increase the spring
tension;
• if the door leaf rises significantly, reduce the spring tension.
Failure to complete the aforementioned actions may
result in injury of persons and/or damage to nearby
objects by the rapid fall of the door leaf.
Fig. 90.4 Attach the latch lock to the latch assembled on the panel and mark
the latch engagement holes in the door frame. Drill the latch holes
with a Ø 8.5 [mm] bit.
Fig. 90.5 Screw down the latch link lightly on the lock side to permit free
