Trimmer Adjustment; Final Test - Automatismos Pujol P-504 E Manuel D'installation Et D'utilisation

? ざ
40 41 1 2
? ざ
NO COM P N
MICRO LINE 230 Vac
SELECTION OF PROGRAMMES AND FUNCTIONS WITH THE DIP-SWITCHES
DIP1 automatIC ClosIng
OFF = Activated
ON = Deactivated
DIP2 CommanD moDe
OFF = For pulses
ON = Hold to run control
DIP3 res Ponse to rePeateD start CommanDs (8-9 terms.)
OFF = "Condominium" function: OPEN; only with the FCA (LIMIT SWITCH OPEN) in CLOSE;
In closing STOP and REOPEN
ON = "Step-by-step" functioning OPEN-STOP-CLOSE-STOP
ATTENTION! To memorise a new confguration, cut power off for a few seconds.

TRIMMER ADJUSTMENT

Working time: Active only if DIP2 is OFF
Set a time of 4 to 8 seconds more than actual manoeuvre time.
Pause time: Active only if DIP1 is OFF
It allows adjustment from 4 to 110 seconds, starting from the FCA position
or from the end of opening work time. When this time has elapsed a closing
manoeuvre will start automatically.
Motor power: When the initial inrush time of 2 seconds has fnished it is
easy to adjust the electric power supplied to the motor.
N.B. Adjust with precision to limit the thrust force of the motorised door
according to the values established by current standards and such to
guarantee an adequate level of safety.
When installing and using these devices all the instructions provided by the manufacturer must be followed; the manufacturer will not be held responsible for any damages caused by improper or unreasonable use.

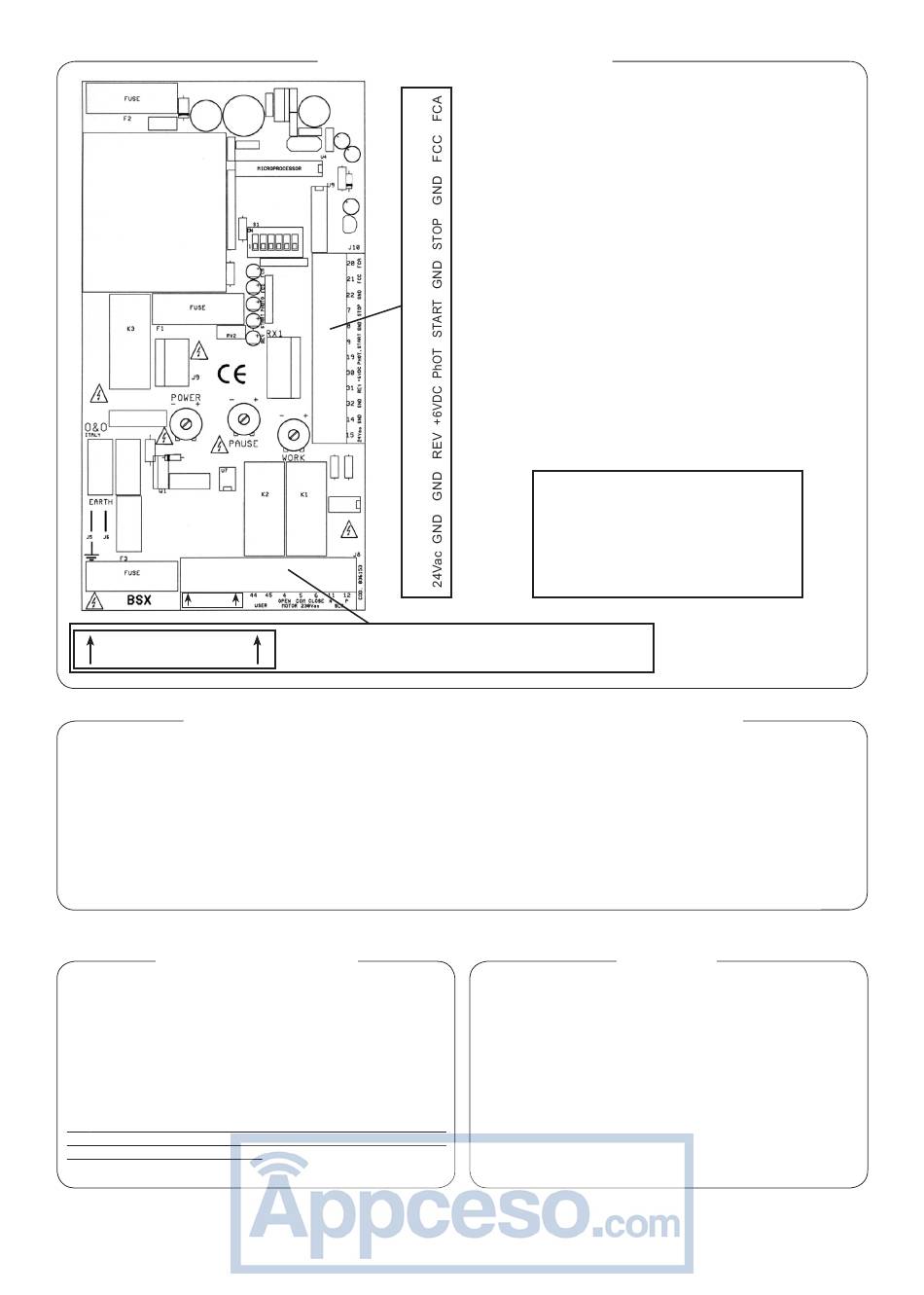

REFERENCES ON THE CONTROL UNIT
20
21
22
7
8
9
19
30
31
32
14
15
44 45 4 5
USER OPEN COM
MOTOR 230 Vac
DIP4 FunCtIonIng oF FlashIng lIght outPut (11-12 terms.)
OFF = =O F l F a F s hingcontrolleddirectlybythecontrolunit(useSL-LAMP modelfashinglight)
ON = = O O N u tpuatlwaysactive=fashinglightfashing(SLRmodel)
DIP5 reVerser (also see note)
OFF =
ON =
DIP6 2 seConDs Pre-FlashIng
OFF = Activated
ON = Deactivated
- 5 -
https://appceso.com
J8: "Power" terminal board
J10: "Low voltage" terminal board (SELV)
K2: Open relay
K1: Close relay
K3: Courtesy light relay
RX1: Radio receiver connector
U4: BSX/B and BSX/BL model microprocessor
F1: 24 Vac (500 mA) fuse
F2: 12 Vac (500 mA) fuse
F3: 5A line fuse
J9: Jump model (BSx/B) and Lamp model (BSx/BL) card connector
S1: Programming dip-switch
J5 e J6: Plugs for earth connections (line and motor).
NOTE: wih t DP I 5 O FF (reverser u f nction
enabled) use of the limit switches is essential.
The FCA stops opening while the FCC only stops
the reverser function and closing movement
continues for another 5 seconds.
Adjust the FCC so it triggers before the door is
completely closed.
6 11 12
CLOSE N P
SLR
Activated. In opening and in closing it stops and reverses movement for two seconds after knocking
against an obstacle.
Deactivated

FINAL TEST

Prior to powering on:
• Set the dip-switches according to the operation required.
• Check the electrical connections.
Incorrect connections could damage the equipment irreversibly.
Power on:
• Check that, under normal conditions, the LEDs relative to the N.C. inputs are on.
• Check correct functioning of the START input, verifying that the LED only
turns on following a command.
• Check correct direction of movement, reversing connections on terminals
4 and 6 (opening and closing) and on terminals 20 and 21 (FCA and FCC)
if necessary.
• Make sure the safety devices used are working properly.
• Carefully adjust the trimmers.
