Digisystem, How to Use the Conductive Rod
4
4.1
Description
4.2
Conductive Rod main
parts

How to Use the Conductive Rod

General Information

The Conductive Rod is a service tracer enabling small diameter non-conductive pipes or ducts
to be traced. It can be used in Line mode or Sonde mode.

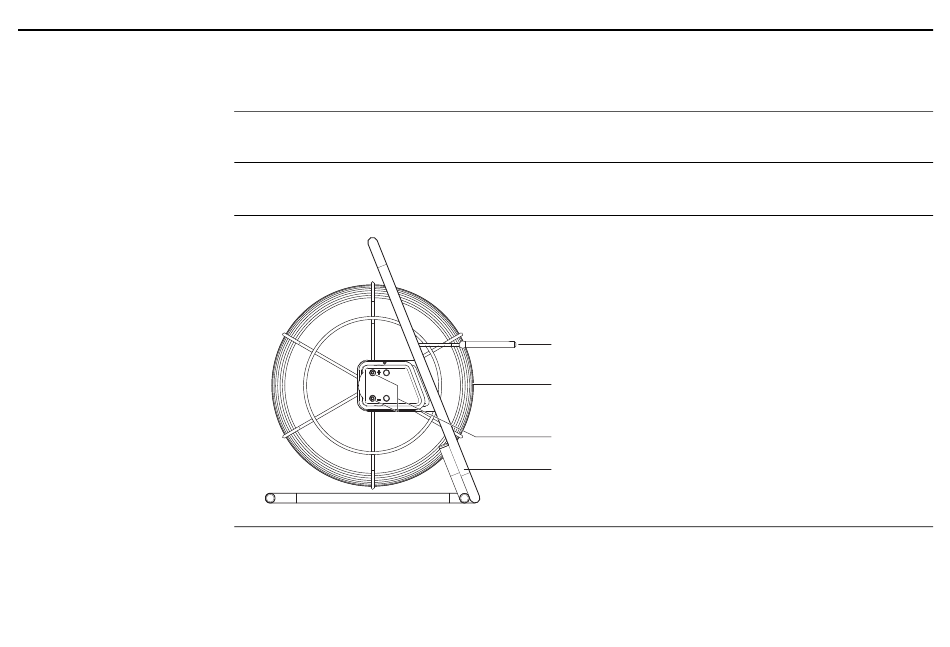

Conductive Rod Overview

a) End of Coil: Sonde mode
Used to accurately pinpoint the end
point of the rod.
b) Rod: Line mode
a
Flexible, Glass Fibre sheathed, which
incorporates copper wires to conduct the
b
signal.
c) Connection Terminals
Used to connect to the Transmitter.
c
d) Frame
Houses the flexible rod. Can be used in
d
both vertical (shown) and horizontal
orientation.
