Step 1. Reversing Stainless Panel Door Swing - Monogram ZIR300NPKII Mode D'emploi

Installation Instructions - Stainless Door Panel
Stainless Steel Door Panel Kits are available with either
Euro handles or Pro handles.
Unit Euro Handle Kits Pro Handle Kits
ZKCSC184
ZKCSC249
ZKCSC244
ZKCSC304
Stainless steel panel is fully assembled with brackets
and handle already installed
LH door kits can be modified to fit RH swing units and
RH door kits can be modified to fit LH swing units.
Leave the protective film on the door until the
installation is complete.
WARNING
Door Trim Pinch
Point Hazard
Improper installation can lead to a finger pinch point
hazard between the side door trim and the cabinets
when operating the door, especially with children.
To minimize this risk you must follow the installation
instructions for cabinet dimensions, trim assembly, and
door stop angle.

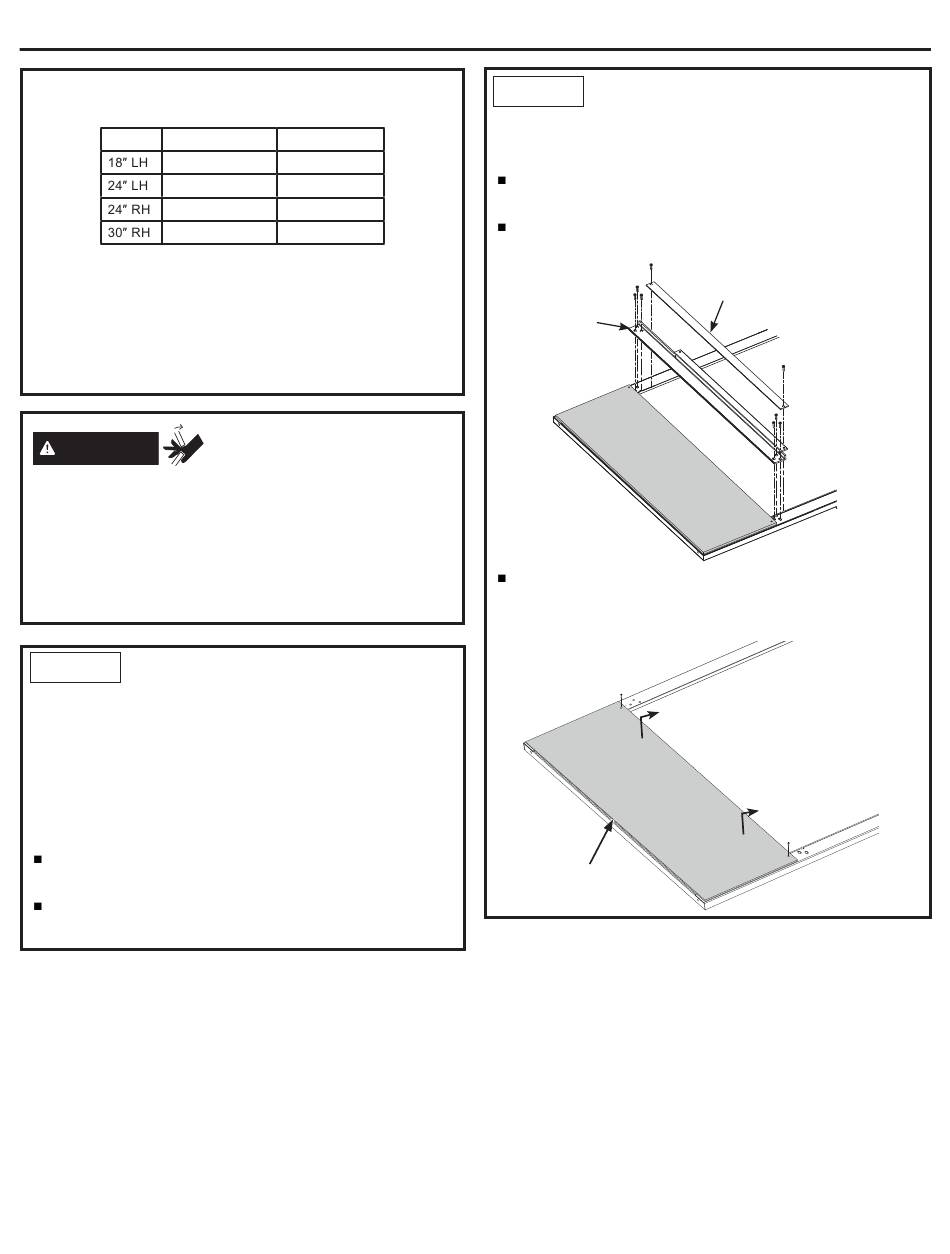

STEP 1 REVERSE STAINLESS
PANEL DOOR SWING (if necessary)
Follow the instructions in this step to make a RH swing
panel a LH swing panel or to make a LH swing panel
a RH swing panel if the door swing was reversed on
an 18" or 30" unit during installation. Stainless panel
kits are available in both a LH and RH swing for 24"
refrigerators and freezers.
Remove all packaging from the stainless door kit.
(DO NOT remove protective film.)
Place the door (handle side down) on a clean
protected work surface to prevent scratches or dents.
ZKCSP184
ZKCSP249
ZKCSP244
ZKCSP304
as a LH or RH swing door.
STEP 1 REVERSE STAINLESS
PANEL DOOR SWING (if necessary)
(Cont.)
Remove the 6 T20 Trox screws holding the bottom
mounting bracket in place.
Remove the 2 T20 Torx screws holding the bottom
panel band.
Bottom
Mounting
Bracket
Remove the 2 T20 Trox screws holding the panel
cover in place. Lift the side next to the mounting
bracket and pull toward the other end of the panel to
release.
Panel Cover with
2-T20 Torx Screws
46
Bottom Panel
Band
