S
YSTEM DESCRIPTION
The display can show two values at the same time, which can be selected from those available in part A and part
B of the display.

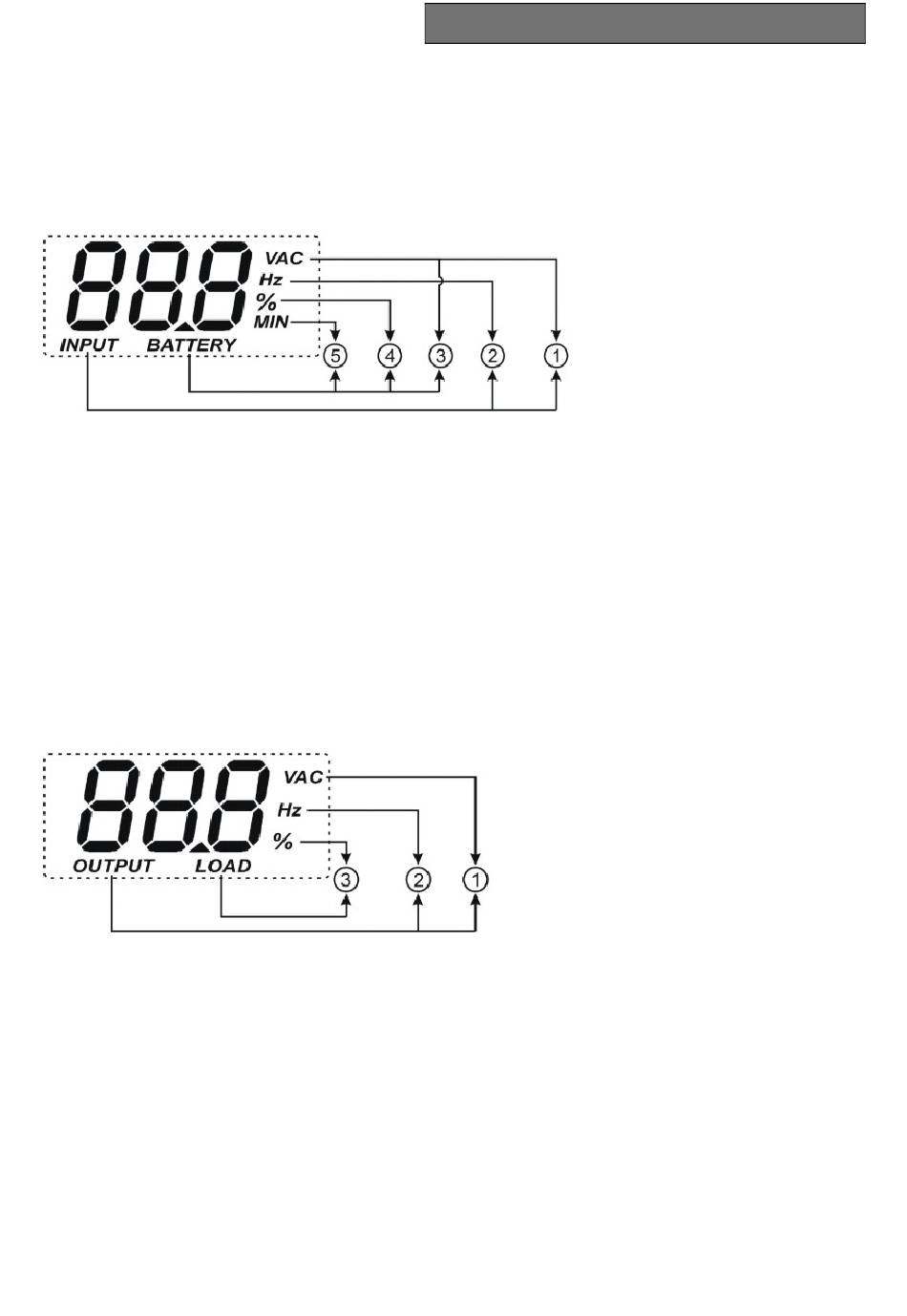

Detailed description for Part A (on the left):
Part A
① INPUT-VAC: input voltage (unit: Volt)
② INPUT-Hz: input frequency (unit: Hz)
③ BATTERY-V: total battery voltage (unit: Volt)
④ BATTERY-%: estimated back-up time (as a percentage) of the battery charge
⑤ BATTERY-MIN: estimated battery back-up time (unit: Minutes)
Note: The estimated back-up time in minutes is also provided when the UPS is working in mains mode.
Detailed description for Part B (on the right):
Part B
① OUTPUT-VAC: output voltage (unit: Volt)
② OUTPUT-Hz: output frequency (unit: Hz)
③ LOAD-%: load applied in output (as a percentage)
Part C and Part D show the status of the UPS (see section "LCD indicators" for details).
