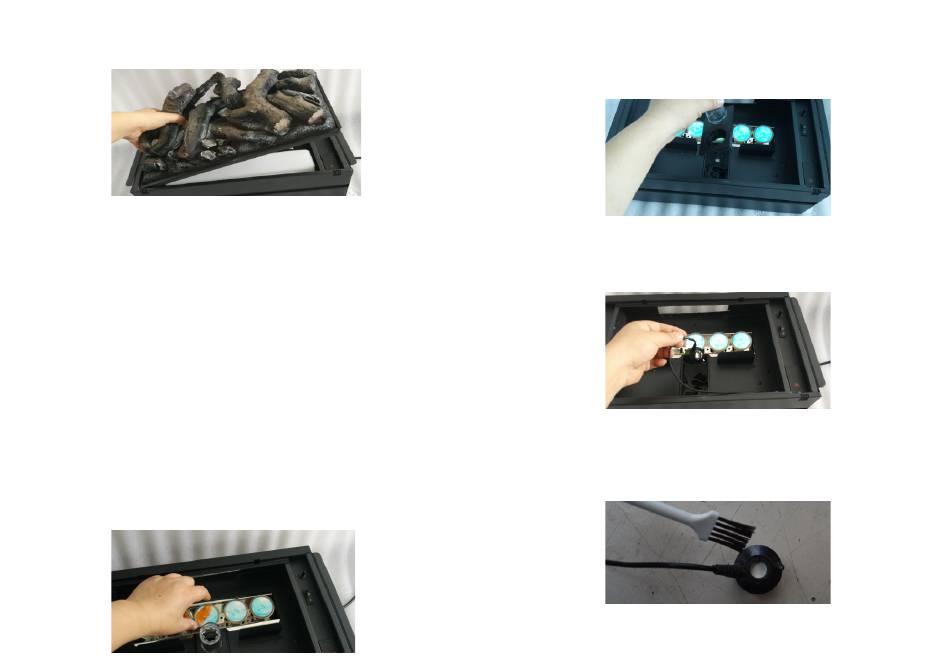

A. Take of log set. Keep in mind that the log-piece has to be removed by holding it lopsidedly,
lifting the right side before lifting it up as a whole. When placing it back, place the left side first and
then the right side.
B. Take out the water tank.
C. Twist off the cap on water tank for water refilling. Before placing it back, carefully check that the
watertank is not leaking.

Replacing the Bulbs

If the areas of artificial flame turn dark, please change the bulbs. There are 5 or 7 halogen bulbs in
the electric fireplace under the artificial charcoal, you only need to change the problem bulb.
The halogen bulb used in the fireplace is not a regular type, please contact the sales agent if a
bulb requires changing.
WARNING
In order to prevent burning, please wait for 10 minutes after cutting off the power until the bulb
cools down.
I. Specification of Bulbs:
Five or Seven halogen bulbs, the lamp holder is model MR16+C.
The rated voltage is AC230V and the rated power is 30W.
II. How to change a Bulb:
Take out the log set and water tank as shown in the images shown on REFILLING WATER
Take off the problem light bulb, replace with new light bulb. Please make sure
the light bulb is cool before replacement.
6
Atomizer Cleaning
1. In order to enjoy the optimum visual effect of your mist fireplace it is suggested that you clean
the water scale and stain on the atomization unit at least every two to four weeks. (The volume
of mist will reduce by no less than 30% after 3000 hours use.)
2. Take out the log set and water tank as the steps show on above images.
3. Take out the distributor as per the following image.
Take out the atomizer and unplug the connector.
4. Add a small amount of water into the atomizer, use a small brush to clean the dirt on atomizer
head, pour away the water after cleaning. (ATTENTION: Do not put the atomizer directly into
water for cleaning.)
