Sender Typ 04281R2
A
A
B
B

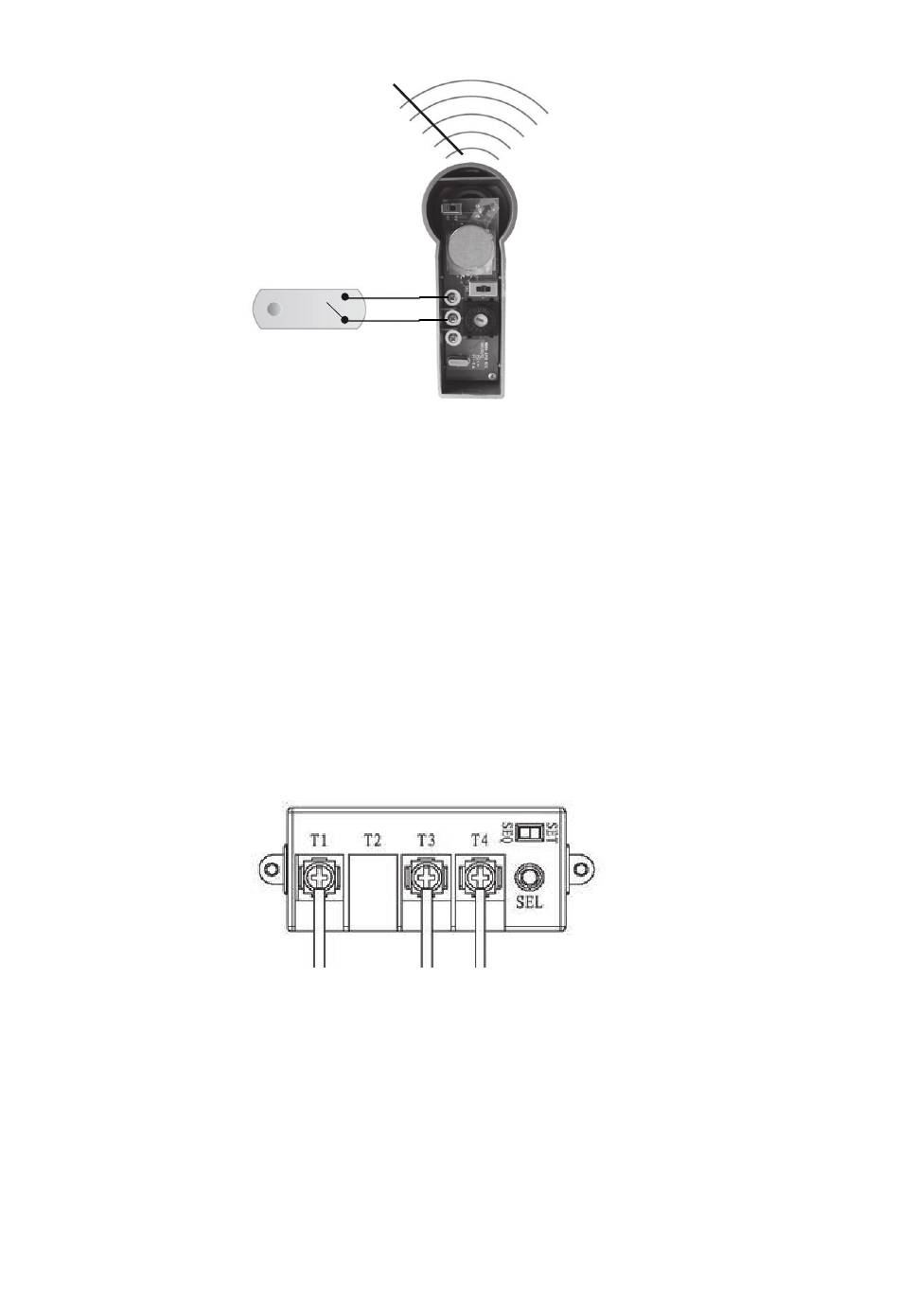

10. Melody selection with wired gong module

The bell connected to T3 and T4 enables the gong to play a stipulated
polyphone melody or alternating polyphone melodies.
On pushing the slide switch (7) to „SEQ" the „SEL " button (6) can be
pressed to select the desired polyphone melody. To ensure that the gong
only plays this selected melody the slide switch (7) must be pushed to the
„SET" position without having pressed any other buttons in the meantime.
If the slide switch remains in the „SEQ" position any random polyphone
melody is played.
Note: On changing the battery or changing a module respectively the
melody is automatically reset to a standard melody and must be reset if
necessary.

11. Melody selection with radio extension kit

If a radio module (radio extension kit, not included) has been inserted into
the slot then melody selection takes place via the transmitter (Fig. 5).
Slide switch : K1 – for 3-sound-tone, K2 – for Westminster-melody,
K3 – for polyphone melody
Slide switch : „SEQ" - for alternating melody at K3;
„SET" – to use a selected melody at K3
If slide switch  is at K3 then the gong plays a defined polyphone melody
or alternating polyphone melodies.
20
