Probing Techniques to Maximize CMRR

The common-mode rejection of the probe is highest when using the
accessories shown in Figures 4 and 5. These accessories minimize
the distance between the probe head and the signal source.

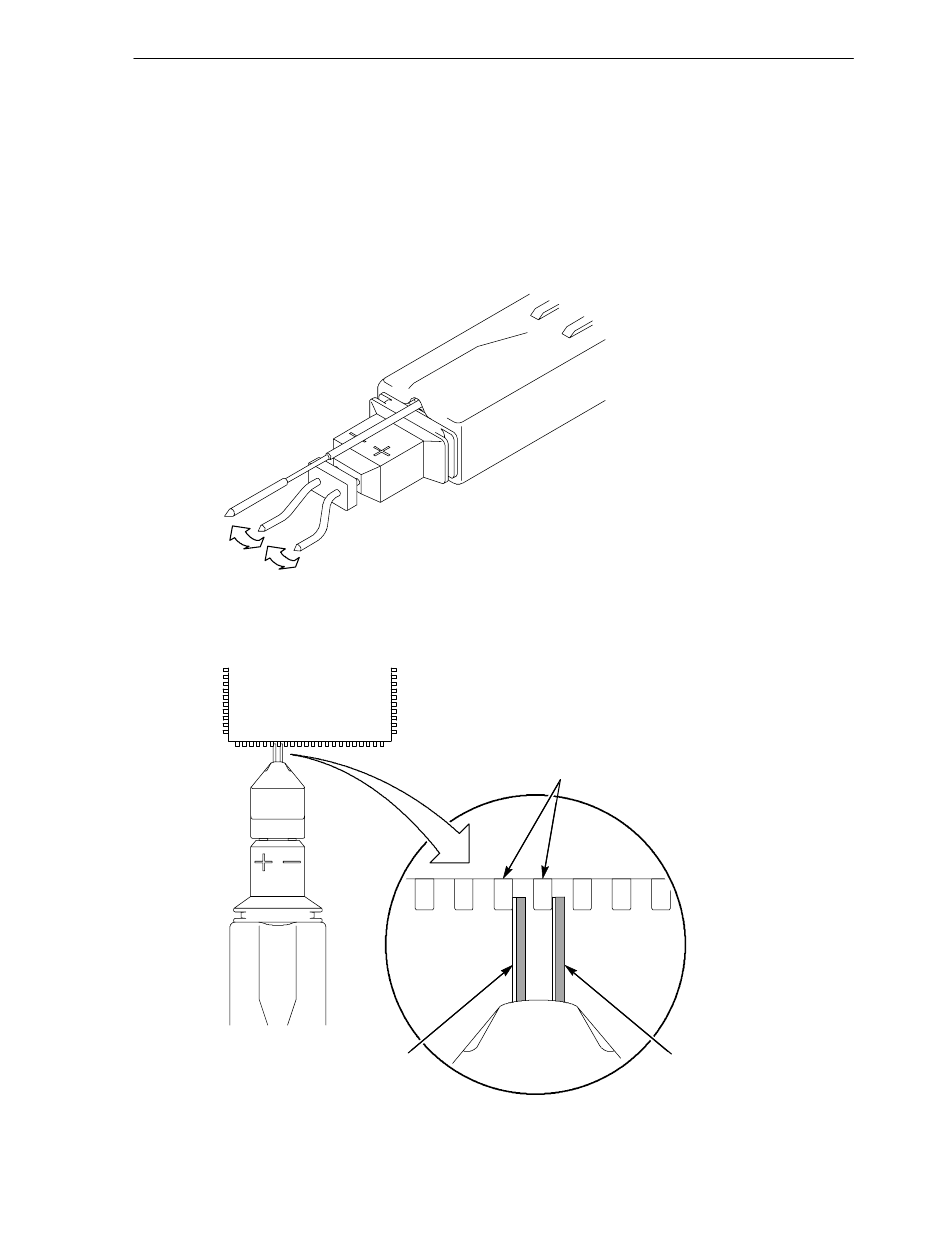

Figure 4: Using the input lead accessories to achieve high CMRR
Conductive side
Figure 5: Using the TwinFoot adapter
P6246 & P6247 Instructions
IC pads being probed
of probe tip
Operating Basics
Insulated side
of probe tip
