Getting Started

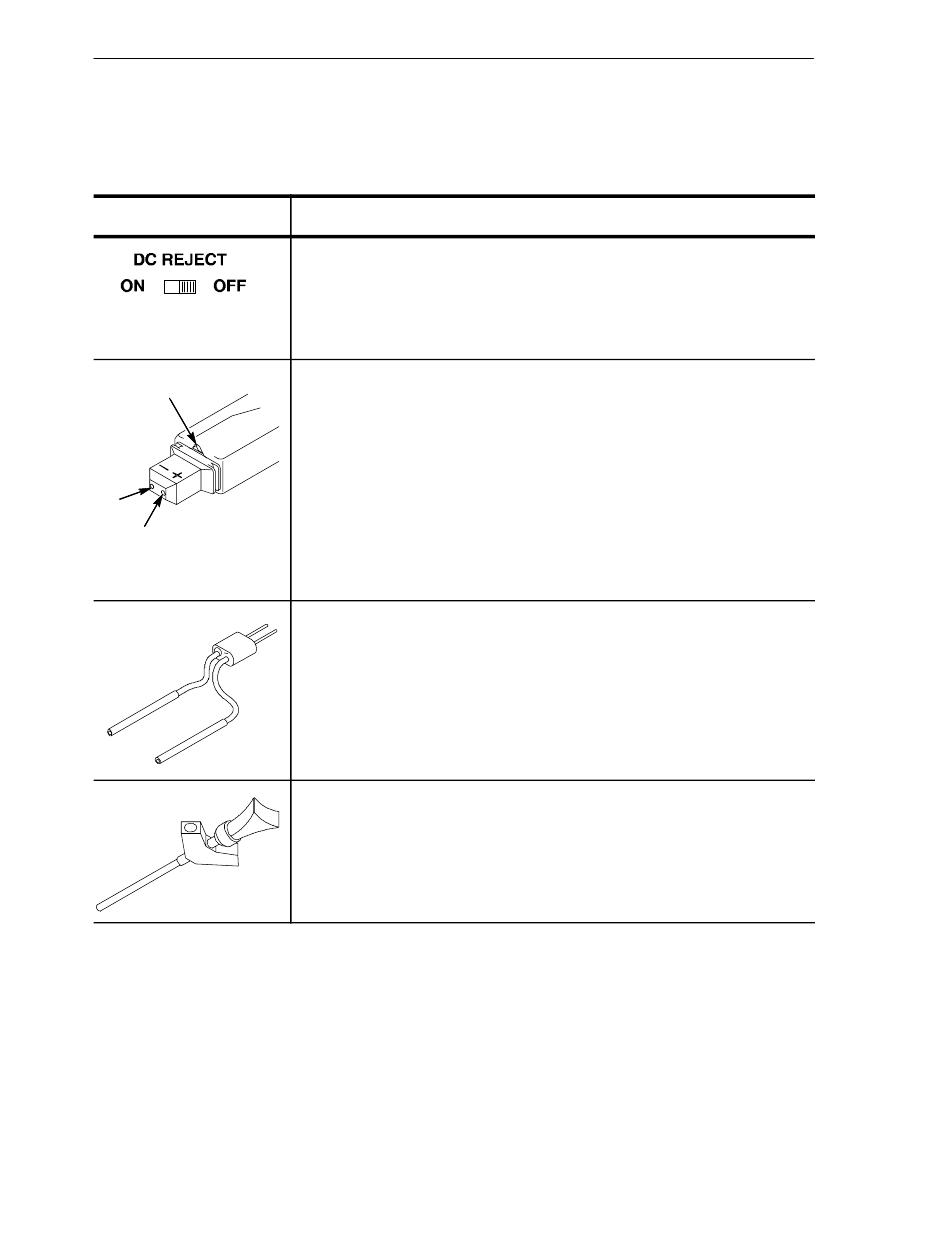

Table 1: P6246 and P6247 features and standard accessories (Cont.)
Feature/Accessory
Ground
- -
+
8
Description
DC reject. The ON position passes only the AC component down
to 4 Hz in the ÷ 10 setting and 0.4 Hz in the ÷ 1 setting.
The OFF position passes both DC and AC components of the
signal.
Input connections. The (+), (--), and ground connections of the
probe head accept the standard and optional probe accessories.
You can also plug the head directly onto a pair of 0.025-inch
square pins that have the standard spacing of 0.100-inch on
center.
CAUTION: To avoid damaging the input connectors, do not insert
anything larger than a 0.025-inch square pin into the inputs. To
prolong the life of the connectors, use smooth gold-plated pins
only.
Y-lead adapter. The Y-lead adapter plugs directly into the probe.
The socketed ends of the leads may be connected to the probe
tips and accessories, or fitted onto 0.025-inch pins.
Integrated circuit (IC) grabbers. Use the IC grabbers to probe
the leads on dual-in-line packages (DIP).
