5 Electrical installation

Wiring

Connecting busbars

5.3 Wiring
5.3.1 Connecting busbars

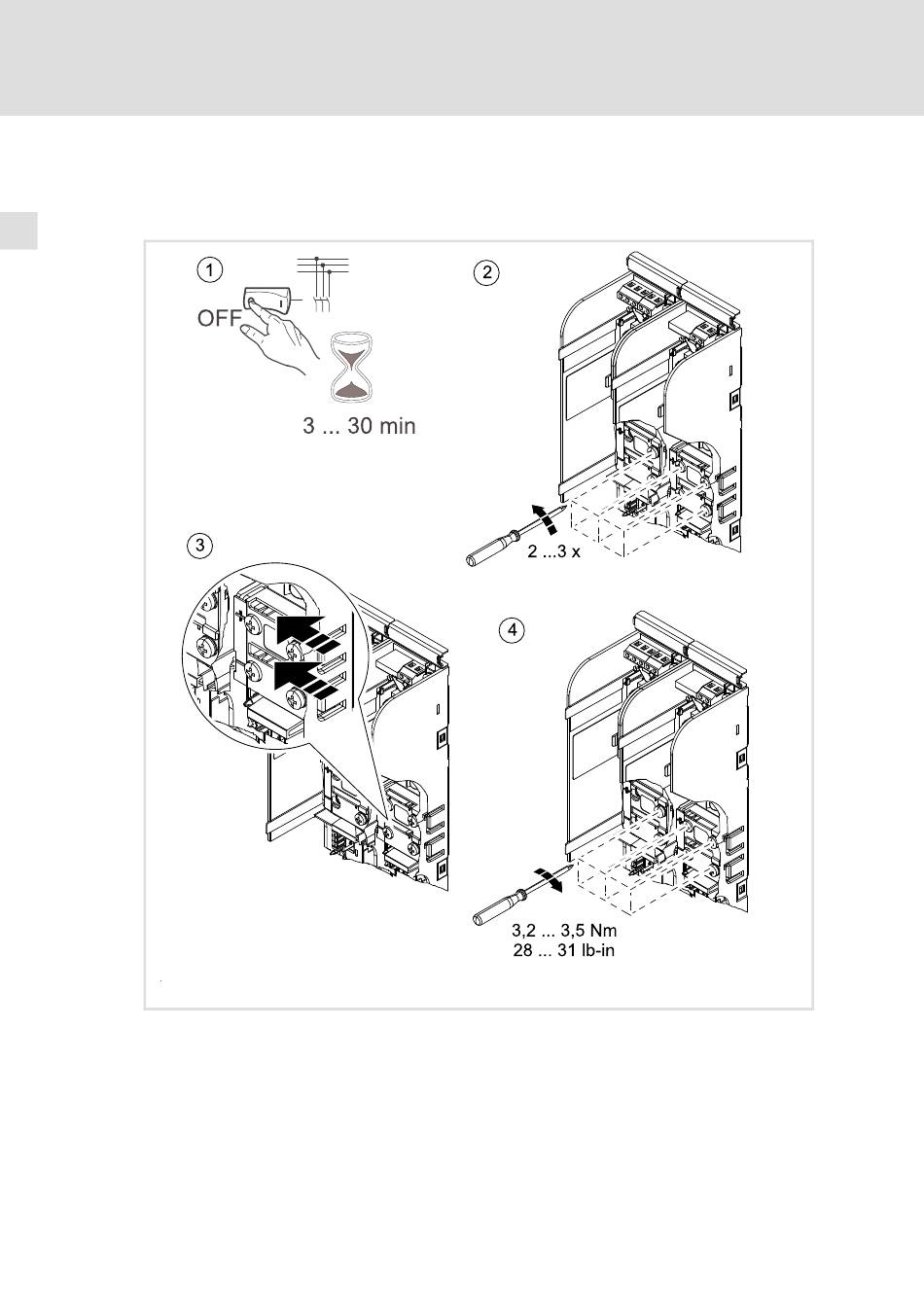

Fig. 5−2 Example: Connecting busbars
Proceed as follows to connect the busbars:
1. If devices of the interconnected system have already been in operation:
–
If necessary, switch off the supply system and wait until the discharge
time has elapsed (depending on the device, this may take up to 30
minutes).
–
Make sure that all power terminals are deenergised.
