Attach the left and right swing handle bars (3 L+R) by placing them on top of the swing bars (13 L+R).
Fix with four Allen bolts M8*20 (6), four spring washers φ8 (9) and four curved washers φ8 (5). Do
not tighten the bolts fully.
Attach the footplate support bars (29 L+R) to the crank (38 L+R) with coated Allen bolts M8*20 (10),
spring washers φ8 (9) and washers Ф8*21*2t (32). Fix the plastic covers (53) to the rear side of the
footplate support bars (29 L+R) with screws (54). Do not tighten the bolts fully.
Attach the footplate support bars (29 L+R) to the lower swing bars (13 L+R) with Allen bolts M10*78
(21), washers φ10 (17) and nylon lock nuts M10 (16). Fix the plastic covers (22) to the front side of
the footplate support bars (29 L+R) with eight screws M5*12 (23).

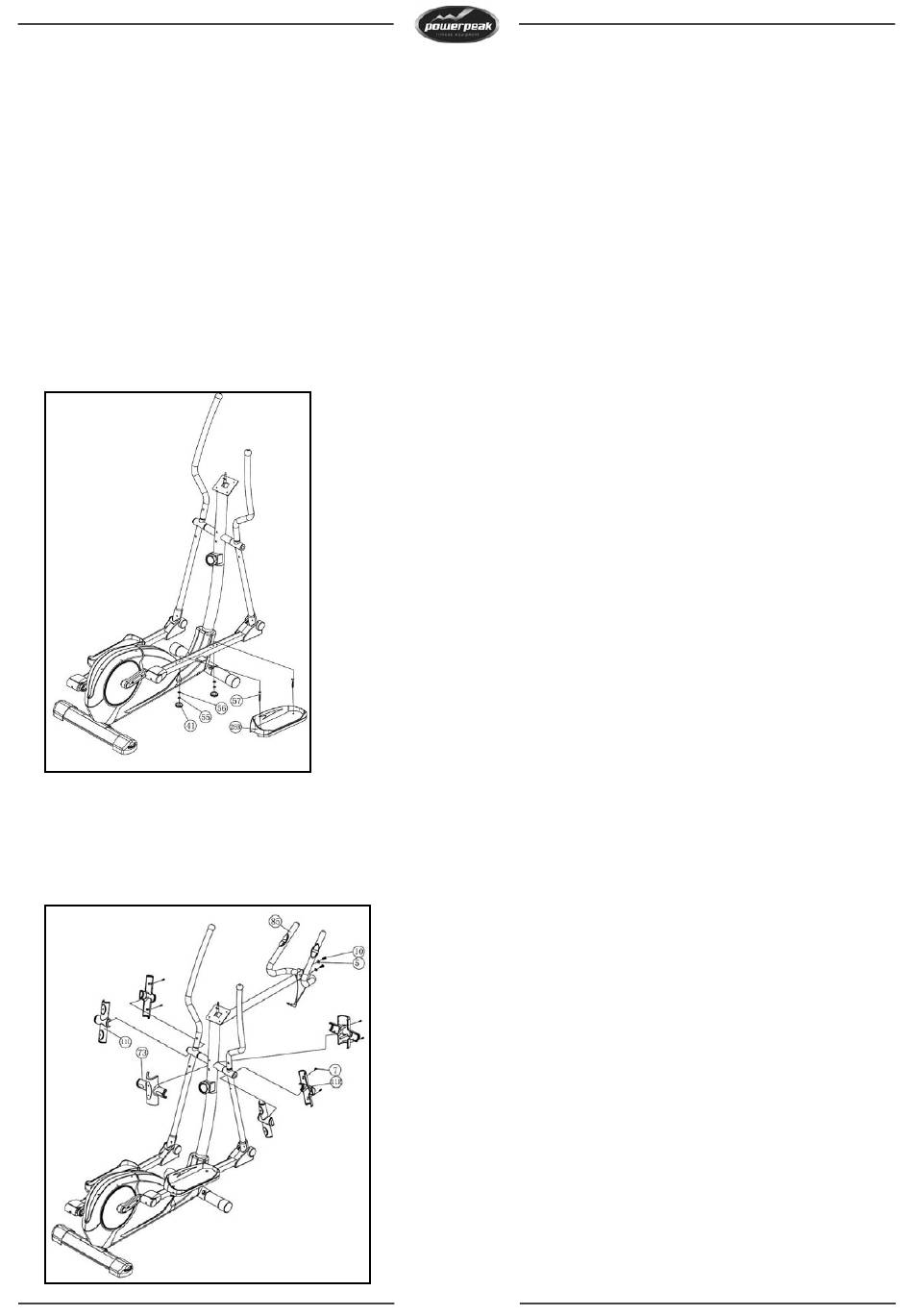

Step 4: Footplates assembly
Attach the right footplate (28 R) to the right footplate support bar (29 R) with carriage bolts M6*55
(57). Fix underneath with flat washers Ф6 (56), spring washers Ф6 (55) and knobs (41). Attach the left
footplate (28 L) in the same manner to the left footplate support bar (29 L).
Step 5: Handlebar assembly
