User's Manual
>> Do not modify or alter either the product or the a ccessories!
Risk of material damage by inappropriate ambient conditions
Incorrect ambient conditions can damage things.
>> Avoid extreme conditions, such as extreme heat, coldness, humidity or
direct exposure to the sun, as well as vibrations and mechanical pressure.
>> Keep enough space around product and to the whole system to ensure
proper ventilation and mobility.
>> M ount only to sufficiently stable and thick surfaces.
>> Take protective measures against pressure points..
>> Regularly check the stability of the system.
1.2

User Groups

Caused to different risk levels and hazard potentials some working steps only
may be done by trained specialists.
Working step User Group
Installing, Consumers and users with basical mechanical knowledge
Uninstalling, can do this work.
Aligning, Care, >> Protect children and people with mental and motoral
Storage, Trans- impairments from using the product!
port, Disposal
Maintenance, Trained specialists only
Repairing >> special safety measures, knowledge and tools are nec-
essary!
Tab. 13: User Groups

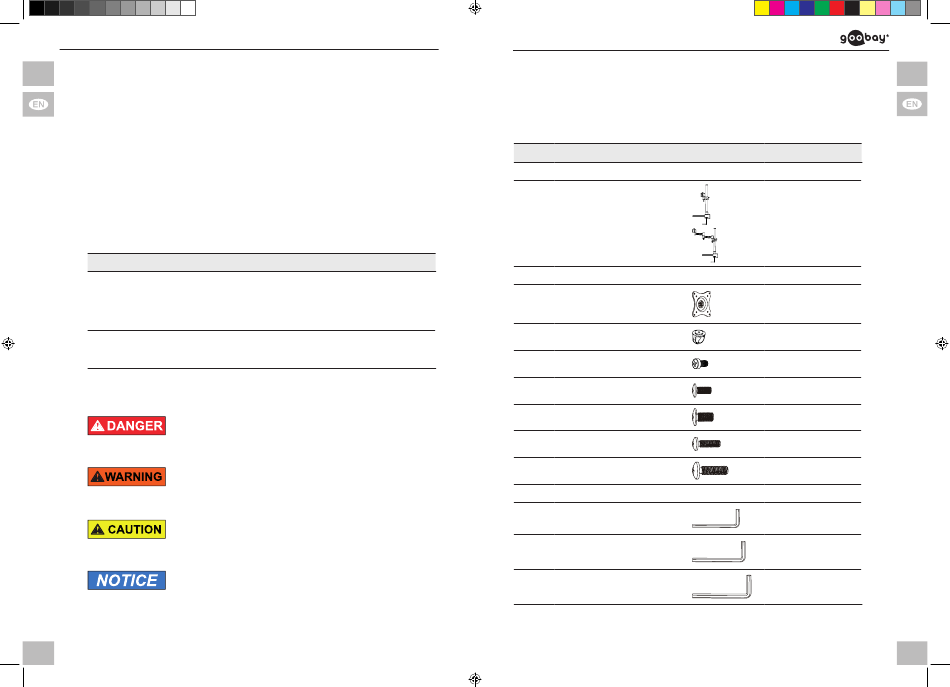

1.3

Warning Levels

Warnings against hazards that will result directly in serious injuries or death
in case of non-observance.
Warnings against hazards that may result in serious injuries or death in case
of nonobservance.
Warnings against hazards that may result in injuries in case of non-obser-
vance.
Warnings against hazards that may result in material damage in case of
non-observance.
18
63496+63497_manual_V4.indd 18-19
2

Description and Function

Your TV desk mount is made for mounting your flat screen to stable and
horizontal work surfaces. It is tiltable and swivelable.
Model 63497 has a greater variability in the depth setting.
2.1

Scope of Delivery

Part Figure
Desk mounting
Pole assembly
63496
or
63497
Flat screen mounting
VESA Plate
Cable guide
M4x10
M4x10
M5x10
M4x14
M5x14
Tools
Allen key 3mm
Allen key 4mm
Allen key 5mm
Tab. 14: Scope of Delivery
Symbol Amount
A 1
B 1
C 1
M 1
M-A 4
M-B 4
M-C 4
M-D 4
D 1
E 1
F 1
