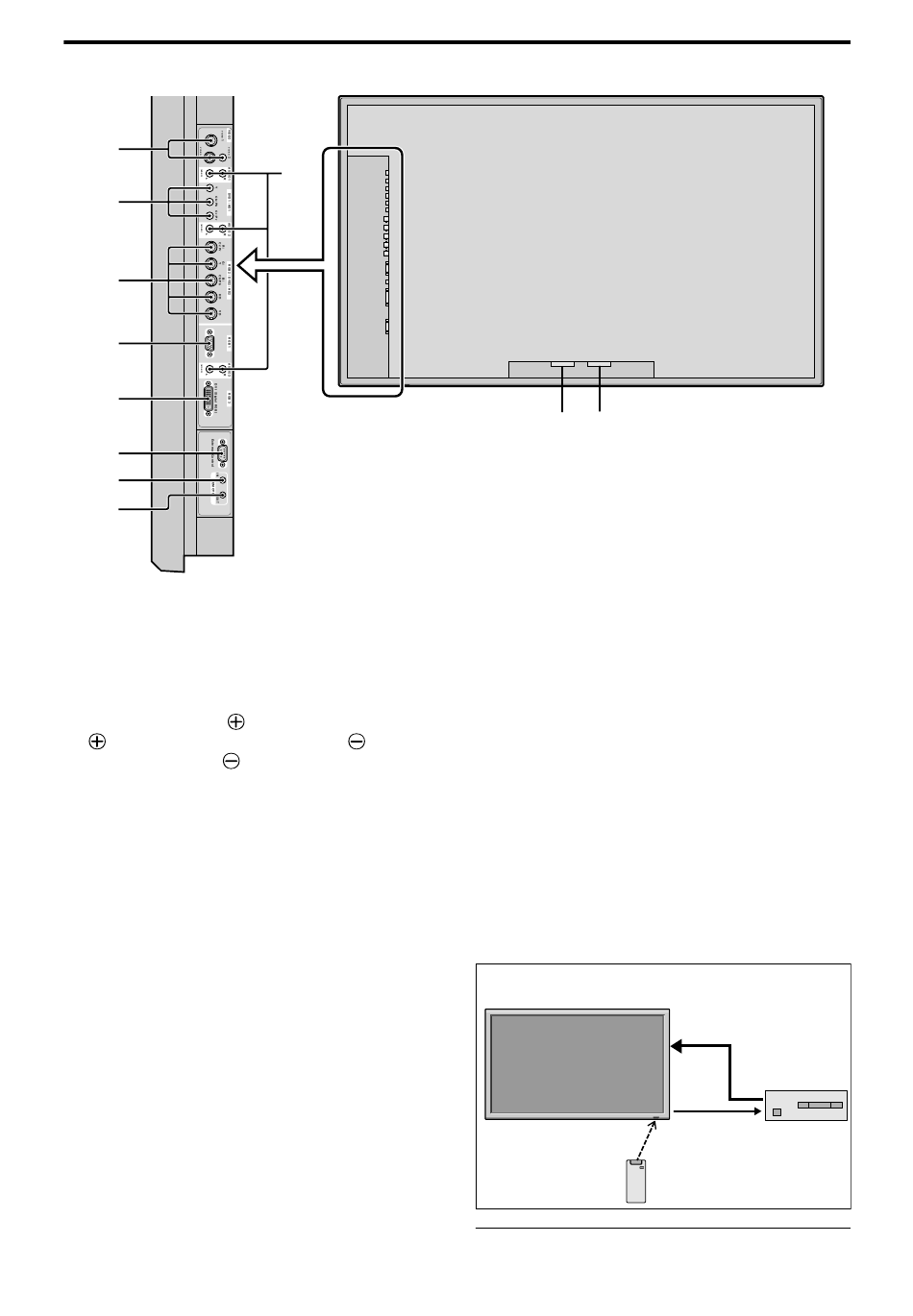

Rear View/ Terminal Board

C
E
F
G
H
I
J
K
A AC IN
Connect the included power cord here.
B EXT SPEAKER L and R
Connect speakers (optional) here. Maintain the correct
polarity. Connect the
EXT SPEAKER terminal and the
speaker wire to the
both LEFT and RIGHT channels.
Please refer to your speaker's owner's manual.
C VIDEO1, 2, 3 (BNC, RCA, S-Video)
Connect VCR's, DVD's or Video Cameras, etc. here.
VIDEO1 can be used for Input or Output.
D AUDIO1, AUDIO2, AUDIO3
These are audio input terminals.
The input is selectable. Set which video image
corresponds to the audio input from the audio menu
screen.
E DVD1 / HD1
Connect DVD's, High Definition or Laser Discs, etc.
here.
F RGB2/ DVD2/ HD2
RGB2: You can connect an analog RGB signal
and the syncronization signal.
DVD2/ HD2: You can connect DVDs, High
Definition sources, Laser Discs, etc.
here.
This input can be set for use with an
RGB or component source.
G RGB1 (mini D-Sub 15pin)
Connect an analog RGB signal from a computer, etc.
here. This input can be used for Input or Output.
D
(positive) speaker wire to the
(negative)
EXT SPEAKER terminal on
A
B
H RGB3
(DVI 24pin)
Connect a digital signal (TMDS) from a source with a
DVI output.
This input can be set for use with an RGB/PC3.
I
EXTERNAL CONTROL
This terminal is used when operating and controlling
the monitor externally with a control system (by RS-
232C).
J REMOTE IN (DC +5V)
Connect the remote cable* to the remote control's
remote jack to obtain wired remote control.
K REMOTE OUT (C-MOS DC +5V)
Connect the remote cable* to the REMOTE IN jack of
the other display monitor to obtain wired remote
control.
Connection Example: Connecting a TV tuner
PLASMA DISPLAY
* The 1/8 Stereo Mini cable must be purchased separately.
En-8
VIDEO
IN
VIDEO
OUT
TV Tuner
REMOTE
OUT
REMOTE
IN
TV Tuner
Remote Control
Carrier fHz: 38kHz
