Connections; Input Mode - Sharp PN-R903 Manuel D'installation

Caution
• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting
cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables
connected to the input and output terminals may cause malfunctions and the other problems.
Power cord
(Supplied)
For power outlet
TIPS
• Set the audio input terminal used for each input mode in AUDIO SELECT on the SETUP menu. The factory settings are
shown below.

Input mode

DVI-I
DisplayPort
HDMI1[PC], HDMI1[AV],
HDMI2[PC], HDMI2[AV]
D-SUB[RGB],
D-SUB[COMPONENT],
D-SUB[VIDEO]
• When installing the monitor in landscape orientation, be sure to clamp
the power cord (supplied) onto the cable clamp attachment using the
supplied cable clamp. When clamping the power cord, take care not
to stress the terminal of the power cord. Do not bend the power cord
excessively.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing
LLC.
• DisplayPort is a registered trademark of Video Electronics Standards Association.
6
E

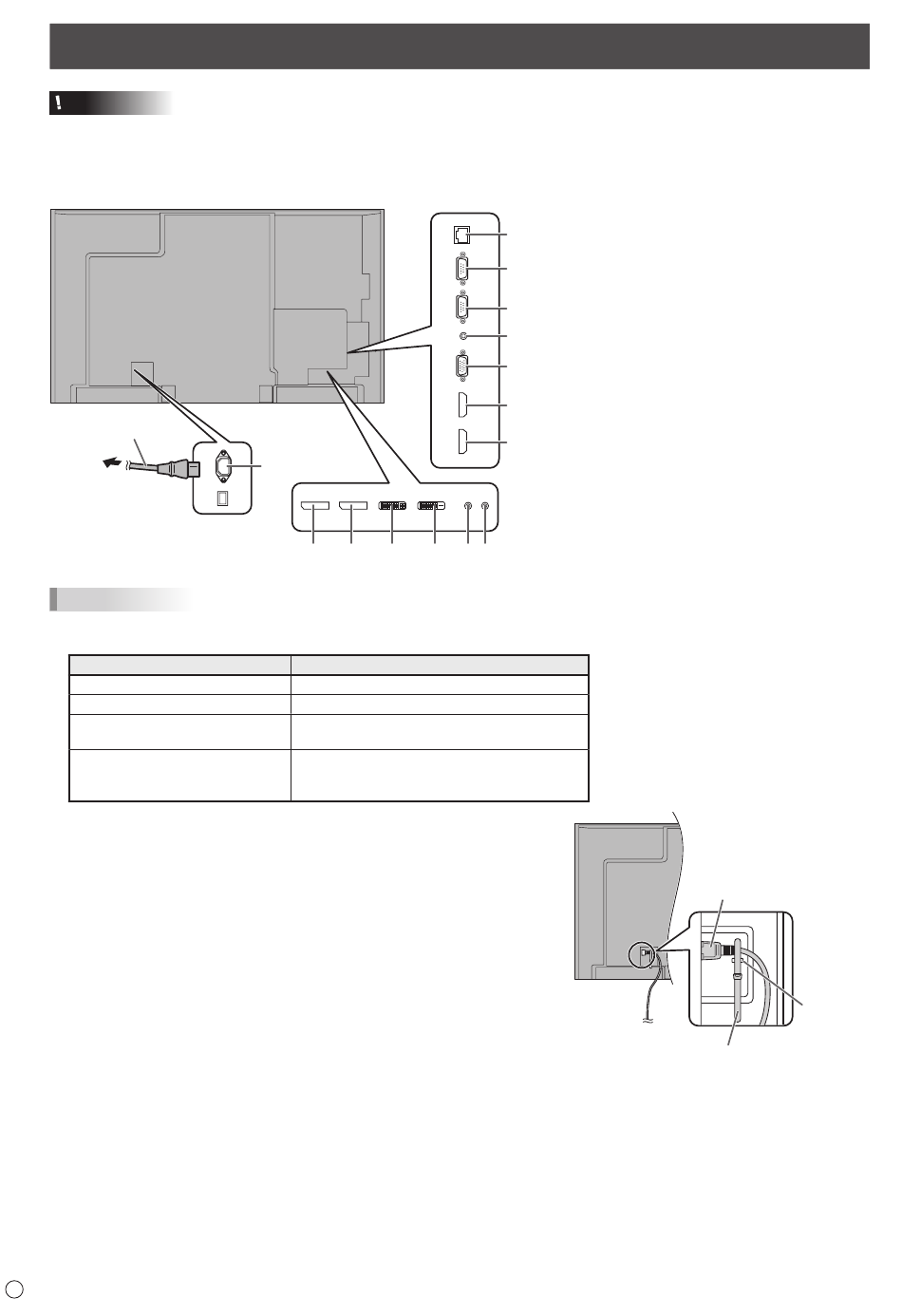

Connections

1
2 3 4 5
Audio input terminal (Factory setting)
Audio1 input terminal
DisplayPort input terminal
PC/AV HDMI input terminal
Audio2 input terminal
1. AC input terminal
2. DisplayPort input terminal
8
3. DisplayPort output terminal
4. DVI-I input terminal
9
5. DVI-D output terminal
6. Audio1 input terminal
10
7. Audio2 input terminal
11 8. LAN terminal
9. RS-232C output terminal
12
10. RS-232C input terminal
11. Audio output terminal
13
12. PC/AV D-sub input terminal
13. PC/AV HDMI1 input terminal
14 14. PC/AV HDMI2 input terminal
6 7
Power cord (Supplied)
Cable clamp
attachment
Cable clamp
