Technical Data
Angle Grinder
Article number
Rated power input
Rated speed
Speed control adjustment
Grinding disc diameter, max.
Thread of grinder spindle
Thread length (max.) of grinder
spindle
Reduced starting current
Constant electronic control
Speed preselection
Soft starting
Kickback stop
Restarting Protection
Overload Protection
Weight according to EPTA-
Procedure 01:2014
– with vibration-damping
auxiliary handle
– with standard-auxiliary
handle
Protection class
The values given are valid for a nominal voltage [U] of 230 V. For differ-
ent voltages and models for specific countries, these values can vary.
Noise/Vibration Information
Sound emission values determined according to
EN 60745-2-3.
Typically the A-weighted noise levels of the product are:
Sound pressure level 90 dB(A); Sound power level
101 dB(A). Uncertainty K =3 dB.
Wear hearing protection!
Vibration total values a (triax vector sum) and uncertainty K
h
determined according to EN 60745-2-3:
2
Surface grinding: a =8.0 m/s , K=1.5 m/s
h
2
Disk sanding: a =5.0 m/s , K=1.5 m/s
h
The vibration level given in this information sheet has been
measured in accordance with a standardised test given in
EN 60745 and may be used to compare one tool with anoth-
er. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main ap-
plications of the tool. However if the tool is used for different
applications, with different accessories or insertion tools or is
poorly maintained, the vibration emission may differ. This
may significantly increase the exposure level over the total
working period.
An estimation of the level of exposure to vibration should also
take into account the times when the tool is switched off or
when it is running but not actually doing the job. This may sig-
nificantly reduce the exposure level over the total working
period.
Bosch Power Tools
Identify additional safety measures to protect the operator
from the effects of vibration such as: maintain the tool and the
PWS Expert
accessories, keep the hands warm, organisation of work pat-
3 603 CA2 8..
terns.
W 1010
Assembly
-1
min 11500
-1
min 2800 – 11500
Mounting the Protective Devices
mm 125
 Before any work on the machine itself, pull the mains
M 14
plug.
Note: After breakage of the grinding disc during operation or
mm 22
damage to the holding fixtures on the protection guard/power

tool, the machine must promptly be sent to an after-sales ser-

vice agent for maintenance. For addresses, see section "Af-
ter-sales Service and Application Service".


Protection Guard for Grinding



kg 2.1
kg 2.1
/II
of the work process. For this, press the release lever 1 up-
ward and turn the protection guard 7 to the required position.
 Always adjust the protection guard 7 in such a manner
that all 3 red cams of release lever 1 engage into the
corresponding notches of the protection guard 7.
 Adjust the protection guard 7 in such a manner that
sparking is prevented in the direction of the operator.
 The protection guard 7 may be turned only upon actua-
2
,
tion of the release lever 1! Otherwise the power tool
2
.
may not continue to be used under any circumstances
and must be taken to an after-sales service agent.
Note: The encoding keys on the protection guard 7 ensure
that only a protection guard that fits the machine type can be
mounted.
Protection Guard for Cutting
 For cutting with bonded abrasives, always use the pro-
tection guard for cutting 12.
 Provide for sufficient dust extraction when cutting
stone.
The protection guard for cutting 12 is mounted in the same
manner as the protection guard for grinding 7.
English | 19

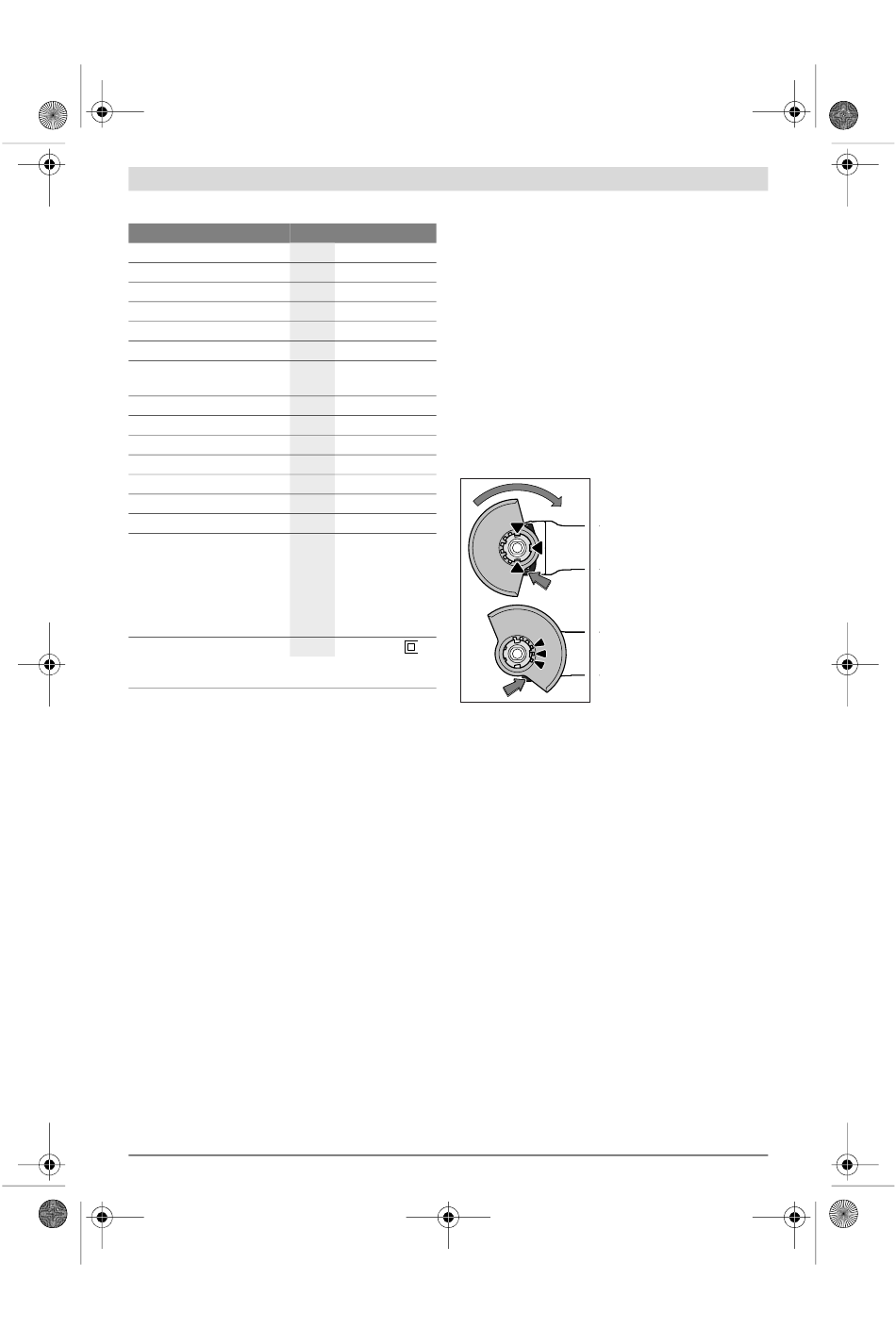

Place the protection guard 7 onto
the spindle collar of the machine
until the encoding keys of the pro-
tection guard agree with the spin-
dle collar. Press and hold the re-
lease lever 1 while doing this.
Press the protection guard 7 onto
the spindle collar until the shoul-
der of the protection guard is
seated against the flange of the
machine, and turn the protection
guard until it can clearly be heard
to engage.
Adjust the position of the protec-
tion guard 7 to the requirements
