LOCATION REQUIREMENTS

IMPORTANT: Observe all governing codes and ordinances. Check the location where the air
conditioner will be installed. Make sure you have everything necessary for correct
installation.
THE LOCATION SHOULD PROVIDE:
• A grounded electrical outlet within 6 ft. (183 cm) of where the power supply cord exits the air
conditioner, for models:
HWF05XCP
NOTE: Do not use an extension cord, plug adapter, surge protector or multi-outlet adapter.
• Free movement of air in the room to be cooled.
• A large enough window opening for the air conditioner. (See Fig.2)
• The air conditioner must not be installed in a through-the-wall sleeve or in a wall. It can only be
installed in a double-hung window.
NOTE: The outside cabinet louvers and air discharge must not be obstructed by bushes, trees,
etc. Air must be able to pass freely through the cabinet louvers. (See Fig.1)

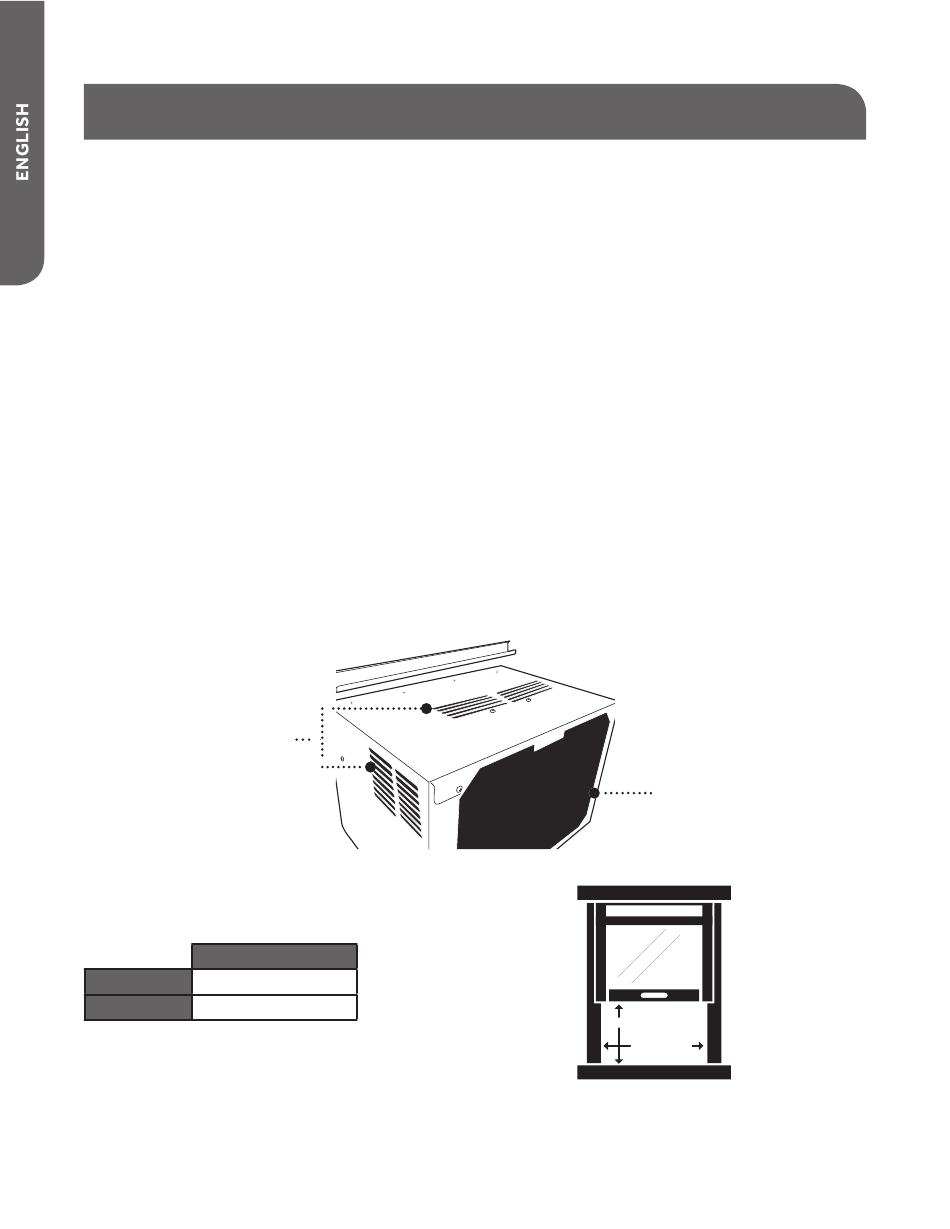

Fig. 1
CABINET LOUVERS
WINDOW INSTALLATION
Window opening measurements: (See Fig. 2)
HWF05XCP
A. Width
21-7/8"-36"
B. Height
WIDTH
PAGE 6
13-3/8"
INSTALLATION REQUIREMENTS
Fig. 2
B-HEIGHT
WIDTH
A-WIDTH
AIR DISCHARGE
HEIGHT
WIDTH
