Manuels Connexes pour Sony CSS-PC1
Sommaire des Matières pour Sony CSS-PC1
- Page 1 2-319-275-11(1) Cyber-shot Station Operating Instructions Mode d’emploi CSS-PC1 2007 Sony Corporation ...
- Page 2 English Before operating the product, please read this manual thoroughly and retain it for future reference. WARNING To reduce fire or shock hazard, do not expose the unit to rain or moisture. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 IMPORTANT SAFEGUARDS For your protection, please read these safety instructions completely before operating the appliance, and keep this manual for future reference. Carefully observe all warnings, precautions and instructions on the appliance, or the one described in the operating instructions and adhere to them. Power Sources This set should be operated only from the type of power source indicated on the marking label.
- Page 4 Lightning For added protection for this set during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power-line surges.
- Page 5 For Customers in the U.S.A. If you have any questions about this product, you may call: Sony Customer Information Services Center 1-800-222-SONY (7669) The number below is for the FCC related matters only. Regulatory Information Declaration of Conformity Trade Name: SONY Model No.: CSS-PC1 Responsible Party: Sony Electronics Inc.
- Page 6 If the plug supplied with this equipment has a detachable fuse cover, be sure to attach the fuse cover after you change the fuse. Never use the plug without the fuse cover. If you should lose the fuse cover, please contact your nearest Sony service station. For Customers in Europe This product has been tested and found compliant with the limits sets out in the EMC Directive for using connection cables shorter than 3 meters (9.8 feet).
-
Page 7: Table Des Matières
Table of contents Notes on using the Cyber-shot Station .................... 8 Features ..............................9 Trademarks ............................9 Identifying the parts .........................10 Set up ..............................11 Placing the camera on the Cyber-shot Station ................12 Removing the camera from the Cyber-shot Station ..............12 Charging the battery pack .......................12 Connecting the camera to your computer via the Cyber-shot Station ........13 Care and maintenance ........................13 Troubleshooting ..........................14... -
Page 8: Notes On Using The Cyber-Shot Station
Notes on using the Cyber-shot Station Refer to the operating instructions for your camera as well as this manual. The Cyber-shot Station is not a dust-proofed, moist-proofed, or water proofed product. About the MODEL SELECT switch The Cyber-shot Station allows you to attach your camera by setting the MODEL SELECT MODEL SELECT switch ( , ). switch ( , ) See page 11 for further details. ... -
Page 9: Features
Features The CSS-PC1 can be used with the DSC-T100, DSC-T25, DSC-T20, DSC-W200, DSC-W90, DSC-W85, and DSC-W80 digital still cameras. Not all digital still cameras are available in all countries. When you place a digital still camera (here in after referred to as the “camera”) on the Cyber-shot Station, you can use the Cyber-shot Station in the following way. -
Page 10: Identifying The Parts

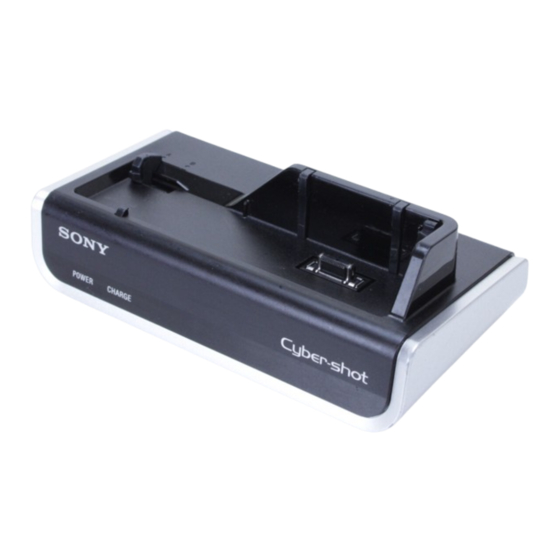

Identifying the parts Cyber-shot Station MODEL SELECT switch Multi connector CHARGE lamp POWER lamp DC IN jack (USB) jack 10-GB... -
Page 11: Set Up
To use your Cyber-shot Station abroad Set up - Power sources You can use the Cyber-shot Station and the AC Preparing the Cyber-shot Station Adaptor (supplied) in any country or region where the power supply is within 100 V to 240 V AC 50/60 Hz. Set the MODEL SELECT switch. Use a commercially available AC plug adaptor, See the table below and set the MODEL if necessary, depending on the design of the wall SELECT switch to match with your camera. -
Page 12: Placing The Camera On The Cyber-Shot Station
Charging the battery pack Placing the camera on the Cyber-shot Station Place the camera with the battery pack inserted on the Cyber-shot Station. Remove the Adaptor ring, the Conversion lens, Charging starts automatically. The CHARGE lamp etc. from the camera. of the Cyber-shot Station lights up. Attach the camera as shown below. When the camera is turned on, the Cyber-shot Station stops charging the battery pack. When the charging reaches to Normal charge*, the CHARGE lamp goes off. -
Page 13: Connecting The Camera To Your Computer Via The Cyber-Shot Station
Care and maintenance Connecting the camera to your computer via the Clean the Cyber-shot Station with a soft cloth Cyber-shot Station slightly moistened with water, and wipe the surface with a dry cloth. Do not use any type of solvent Connect the Cyber-shot Station to your such as thinner, alcohol or benzine as this may computer by the USB cable supplied with ... -
Page 14: Troubleshooting
Troubleshooting If any problems occur with your products, refer to the following solutions. If the problem persists, contact your Sony dealer. Symptom Cause/Solution Unable to charge the battery pack (when The camera is turned on. the CHARGE lamp fails to light) Turn the camera off. The AC Adaptor is disconnected. -
Page 15: Specifications
Included items Specifications Cyber-shot Station (CSS-PC1) (1) Cyber-shot Station USB cable (1) AC Adaptor (AC-LS) (1) Input/Output connectors USB jack: mini-B AC Power cord (mains lead) (1) DC IN jack Set of printed documentation Multi connector Design and specifications are subject to change General without notice. Dimensions (Approx.): 124 × 45 × 65 mm (5 ×... - Page 16 Français Avant d’utiliser cet appareil, lisez attentivement ce mode d’ e mploi et conservez-le pour toute référence ultérieure. AVERTISSEMENT Afin de réduire les risques d’incendie ou de décharge électrique, n’exposez pas cet appareil à la pluie ou à l’humidité. Note pour les clients européens Cet appareil a été...
- Page 17 Table des matières Remarques sur l’utilisation de la Cyber-shot Station ..............4 Caractéristiques ..........................5 Marques commerciales ........................5 Identification des différents éléments ....................6 Installation ............................7 Placement de l’appareil photo sur la Cyber-shot Station ............... 8 Retrait de l’appareil photo de la Cyber-shot Station ..............8 Recharge de la batterie ........................
-
Page 18: Remarques Sur L'utilisation De La Cyber-Shot Station
Remarques sur l’utilisation de la Cyber-shot Station Consultez le mode d’ e mploi de votre appareil ainsi que ce manuel. La Cyber-shot Station ne doit pas être soumise à la poussière, à l’humidité ou à l’eau. A propos du commutateur MODEL SELECT Commutateur ... -
Page 19: Caractéristiques
Caractéristiques La CSS-PC1 peut être utilisée avec les appareils photos numériques DSC-T100, DSC-T25, DSC-T20, DSC- W200, DSC-W90, DSC-W85 et DSC-W80. Tous les appareils photo numériques ne sont pas disponibles dans tous les pays. Si vous placez un appareil photo numérique (appelé ci-après « appareil photo ») sur la Cyber-shot Station, vous pouvez utiliser celle-ci de la manière suivante. -
Page 20: Identification Des Différents Éléments
Identification des différents éléments Cyber-shot Station Commutateur MODEL SELECT Multi-connecteur Témoin CHARGE Témoin POWER Prise (�SB) Prise DC IN -FR... -
Page 21: Installation
Pour utiliser votre Cyber-shot Station à Installation l’étranger - Sources d’alimentation Vous pouvez utiliser la Cyber-shot Station et Préparation de la Cyber-shot Station l’adaptateur secteur (fourni) dans n’importe quel pays ou région où la tension d’alimentation est comprise entre 100 V et 240 V CA, 50/60 Hz. Réglez le commutateur MODEL SELECT. -
Page 22: Placement De L'appareil Photo Sur La Cyber-Shot Station
Placement de l’appareil Retrait de l’appareil photo photo sur la Cyber-shot de la Cyber-shot Station Station Retirez la bague adaptatrice, le convertisseur, etc. de l’appareil photo. Fixez l’appareil photo comme illustré ci- dessous. Maintenez la Cyber-shot Station lorsque vous ... -
Page 23: Recharge De La Batterie
Recharge de la batterie Raccordement de l’appareil photo à votre ordinateur via Insérez la batterie dans l’appareil photo, puis la Cyber-shot Station placez-le sur la Cyber-shot Station. La charge commence automatiquement. Le témoin Raccordez la Cyber-shot Station à votre CHARGE de la Cyber-shot Station s’allume. ordinateur à... -
Page 24: Dépannage
Dépannage Si un problème survient avec vos produits, reportez-vous aux solutions suivantes. Si les problèmes persistent, contactez votre revendeur Sony. Symptôme Cause/Solution Impossible de recharger la batterie L’appareil photo est sous tension. (lorsque le témoin CHARGE ne s’allume ... -
Page 25: Spécifications
Articles inclus Spécifications Cyber-shot Station (CSS-PC1) (1) Cyber-shot Station Câble �SB (1) Connecteurs d’entrée/de sortie Adaptateur secteur (AC-LS) (1) Prise USB : mini-B Cordon d’alimentation secteur (1) Prise DC IN Jeu de documents imprimés Multi-connecteur La conception et les spécifications sont sujettes... - Page 28 Printed on 70% or more recycled paper using VOC (Volatile Organic Compound)-free vegetable oil based ink. Imprimé sur papier 70 %, ou plus, recyclé avec de l’encre à base d’huile végétale sans COV (composés organiques volatils). Printed in Japan...
