Frame Dz - Novoferm NovoDock L320 Notice De Montage

10.1
Instruction

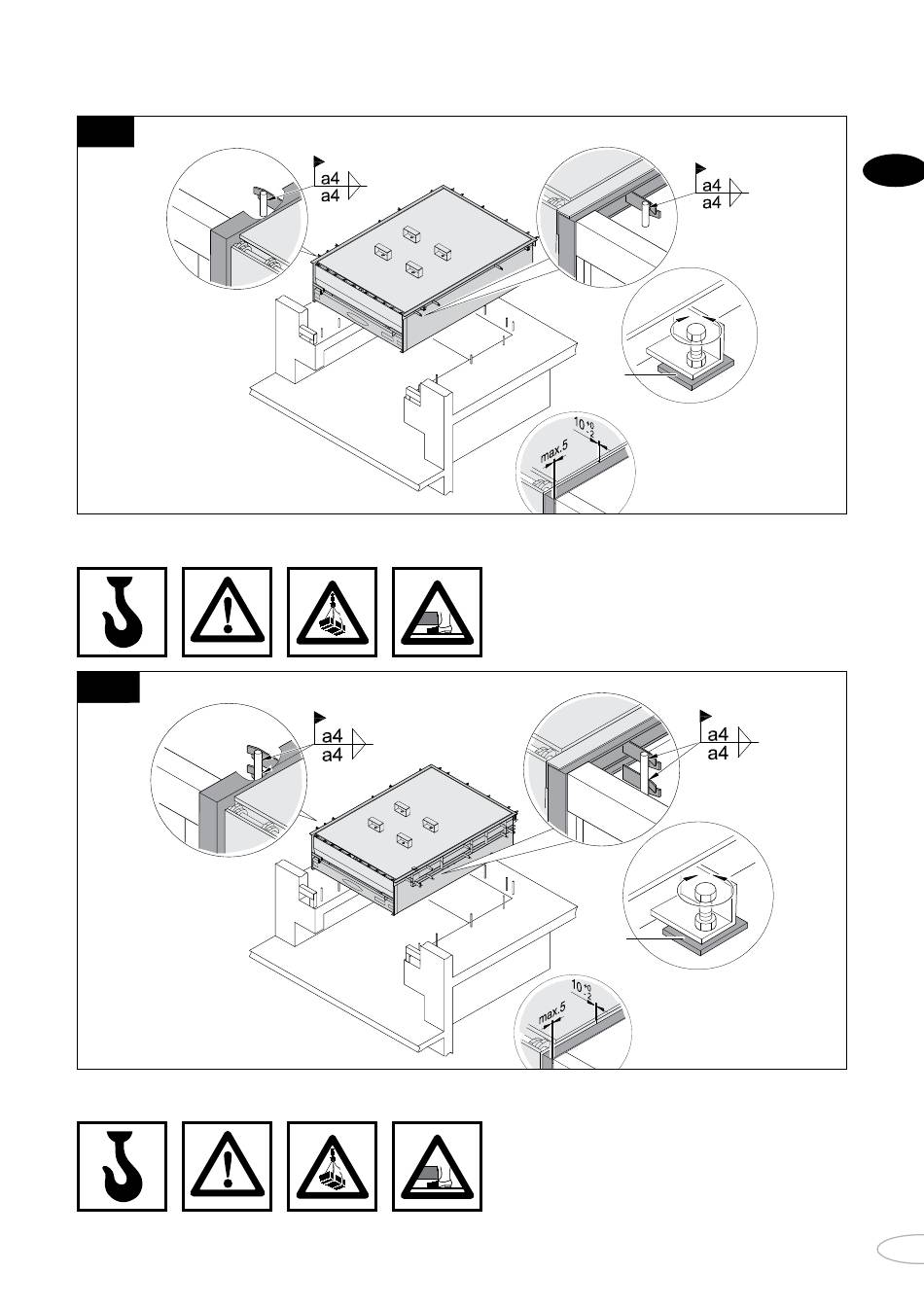

Concrete embedding height 100 - 180 mm
10.2 10.2
Instruction
Concrete embedding height 190 - 250 mm
This installation manual must be given to the customer and kept safely during the entire period of use!
*Fl 60 x 5 - 90
* not included in scope of supply
Health hazard when welding galvanised components:
Welding galvanised parts produces vapours which can be harm-
ful to health if inhaled. To avoid this, grind the zinc coating off the
parts that are to be welded.
General instruction: the image may differ at detail level.
*Fl 60 x 5 - 90
* not included in scope of supply
Health hazard when welding galvanised components:
Welding galvanised parts produces vapours which can be harm-
ful to health if inhaled. To avoid this, grind the zinc coating off the
parts that are to be welded.
General instruction: the image may differ at detail level.

10. Frame DZ
