EQUIPMENT INSTALLATION continued

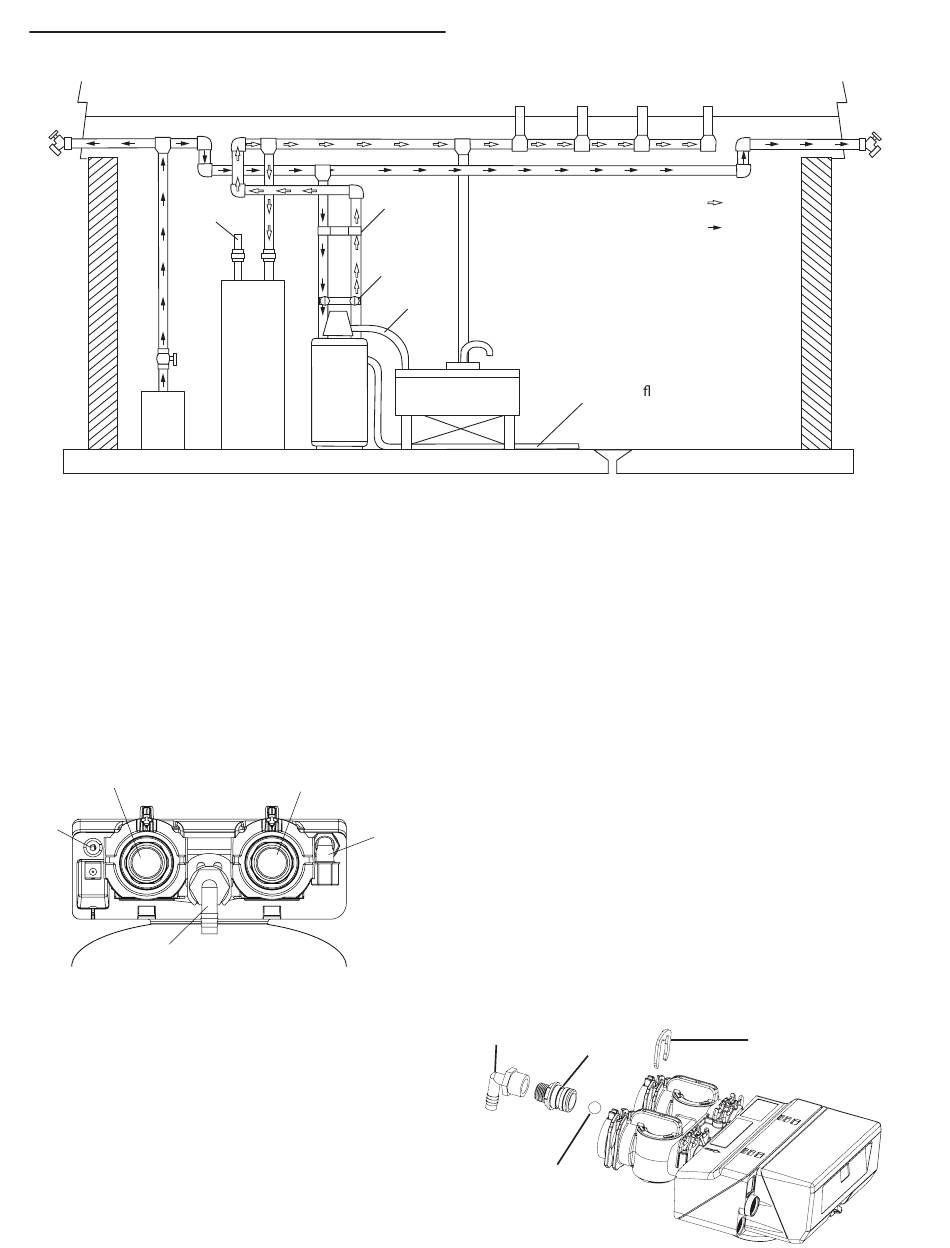

Figure 3 Standard Basement Before Installation . Cold Water
Lines Shown
Outside
Faucet
Hot Water
Outlet
Pump
or
Meter
Figure 4 Softened Water Flow
Grounding the Plumbing
It is important that the plumbing system be electrically
grounded . When a water softener is installed a non-metalic
bypass valve may interrupt the grounding. To maintain
continuity, a grounding strap can be purchased at a hardware
store . When it is installed the strap will connect the plumbing
into the softener to the plumbing out of the softener .
If you have other water treating equipment such as; chlorinator,
sediment filter, neutralizer, iron filter, or taste & odor filter they
should be installed upstream of the water softener .
You may wish to consult a water professional if additional water
treating equipment is to be installed .
Valve Layout
Outlet 1" NPT
Meter
Cable
Drain
1/2" Tube
Figure 5
Drain Line Flow Control
The drain line flow control (DLFC) requires assembly
(Figure 6) .
1 . Locate parts and a roll of Teflon tape.The plumbing
adapters should be removed (Figure 8 Connector
Assembly) .
2 . Wrap the tape over threads of the flow control.
3 . Screw the flow control and the 90° elbow together. Hand
6 • OC11 OM34K and OM40K
Grounding
Strap
Bypass
Drain Line
Water
Heater
Softener
Inlet 1" NPT
To Brine Tank
3/8" NPT
Bath Tub Lavatory Toilet
Brine Tank Over ow Drain
Laundry Tubs
tighten .
4 . Place the ball into the flow control and insert the assembly
into the drain line opening .
5 . Push the assembly in and secure with the drain line clip .
90° Elbow
Flow Control
Control Ball
Kitchen
Soft Water
Hard Water
Floor Drain
Drain Line Clip
Outside
Faucet
