Before operating this unit, please read these instructions completely.
Il est recommandé de lire attentivement ce manuel avant d'utiliser l'appareil.
Operating Instructions
Manuel d'utilisation

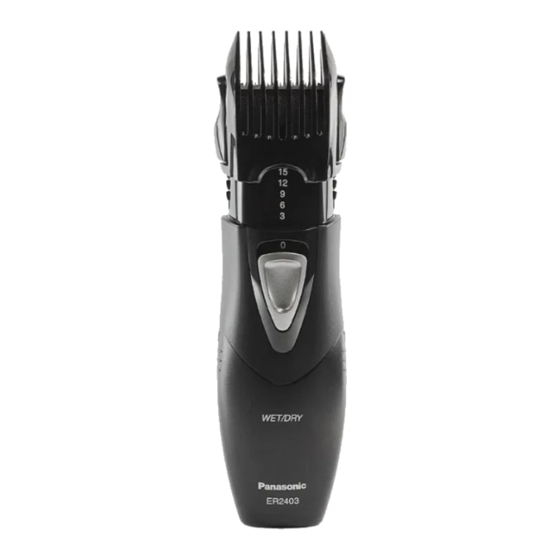

Beard/Hair Trimmer
Tondeuse Barbe/Cheveux
N° de modèles ER2403
2
8
14
Model No. ER2403

Publicité

Table des Matières
loading

Sommaire des Matières pour Panasonic ER2403

  • Page 1 Operating Instructions Manuel d’utilisation Beard/Hair Trimmer Tondeuse Barbe/Cheveux Model No. ER2403 N° de modèles ER2403 English Français Espanõl Before operating this unit, please read these instructions completely. Il est recommandé de lire attentivement ce manuel avant d’utiliser l’appareil.
  • Page 2: Important

    Important Cautions for use and storage  • The appliance may become warm during operation. This is normal. • Turn off the appliance before changing the trimming length or removing the comb attachment. • Close supervision is necessary when the appliance is used by, on, or near children or invalids.
  • Page 3: Parts Identification

    Parts identification A Main body    1 Mounting hook   2 Trimming length  indicator  3 Switch 4 Battery cover   B Blade block 5 Cleaning lever   6 Moving blade 7 Stationary blade  C Comb attachment D Oil E Cleaning brush...
  • Page 4: Using The Trimmer

    Using the trimmer Trimming your moustache  1. Apply a few drops of the oil to the blades. 2. Grasp the sides of the comb attachment and move it to the desired trimming length (between 3 mm and 15 mm). Indicator Trimming length 3 mm (1/8˝) 6 mm (1/4˝) 9 mm (3/8˝) 12 mm (1/2˝) 15 mm (5/8˝) 3. Slide the switch on the main body upwards to turn on the trimmer. 4. Move the trimmer upwards with the switch on the main body facing downwards as illustrated. Shaping your moustache  1. Remove the comb attachment and turn on the trimmer. 2. Trim around your moustache.
  • Page 5: Cleaning The Trimmer

    Shaping your sideburns  1. Remove the comb attachment and turn on the trimmer. 2. Place the trimmer at a right angle to your skin and cut your sideburns. Trimming your body hair  You can also trim your body hair. Cleaning the trimmer Using the cleaning brush  1. Remove the comb attachment. 2. Hold the main body, place your thumb against the blades and then push them away from the main body. 3. Brush off any hair trimmings from the main body and from around the blade. 4. Brush any hair trimmings out from between the stationary blade and the moving blade while pressing down the cleaning lever to raise the moving blade. Washing with water  The following is the symbol for a wet trimmer. The symbol means the hand-held part may be used in a bath or shower.
  • Page 6: Lubrication

    1. Remove the blade. 2. Rinse off any hair trimmings that are sticking to the blades with running water. 3. Rinse out any hair trimmings that are inside the trimmer with running water. • The battery cover should not be removed when washing the main body. 4. Gently shake the trimmer 4 or 5 times and then wipe off any water drops from the trimmer and the blade. 5. Place the trimmer on a towel with the switch on the main body facing downwards to let it dry fully. Lubrication Lubricate the blades before using them or after cleaning them. 1. Apply a few drops of the oil to the points indicated by the arrows.
  • Page 7 FOR YOUR CONVENIENCE, WE HAVE ESTABLISHED A TOLL- FREE (IN USA ONLY) NATIONAL ACCESSORY PURCHASE HOT LINE AT 1-800-332-5368. IN CANADA, CONTACT PANASONIC CANADA INC. AT THE ADDRESS OR TELEPHONE NUMBER ON THE BACK PAGE.
  • Page 8: Caracteristiques Techniques

    Important  Précautions pour l’utilisation et le rangement • L’appareil peut devenir chaud pendant son fonctionnement. Cela est normal. • Eteindre l’appareil avant de changer la longueur de taille ou retirer la fixation du peigne. • Une grande vigilance est nécessaire lorsque l’appareil est utilisé par des enfants ou des personnes handicapées, sur eux ou en leur présence.
  • Page 9: Remplacement Des Piles

    Nomenclature A Corps principal     1 Crochet de montage  2 Indicateur de la  longueur de taille  3 Interrupteur  4 Couvercle des piles  B Lame 5 Levier de nettoyage   6 Lame mobile 7 Lame fixe ...
  • Page 10: Utilisation De La Tondeuse

    Utilisation de la tondeuse  Raser votre moustache 1. Appliquer quelques gouttes d’huile sur les lames. 2. Saisir les côtés de la fixation du peigne et les déplacer à la longueur de taille souhaitée (entre 3 mm et 15 mm). Indicateur Longueur de taille 3 mm (1/8˝) 6 mm (1/4˝) 9 mm (3/8˝) 12 mm (1/2˝)
  • Page 11: Nettoyage De La Tondeuse

     Modeler vos favoris 1. Enlever la fixation du peigne, et allumer la tondeuse. 2. Placer la tondeuse perpendiculairement à votre peau et tailler vos favoris.  Rasage des poils Vous pouvez aussi vous raser les poils. Nettoyage de la tondeuse  Utilisation de la brosse de nettoyage 1. Enlevez la fixation du peigne.
  • Page 12: Lubrification

    1. Retirer la lame. 2. Rincer à l’eau courante pour enlever tous les poils taillés collés aux lames. 3. Rincer à l’eau courante pour enlever tous les poils taillés collés à l’intérieur de la tondeuse. • Ne pas retirer le couvercle des piles pendant le nettoyage du corps principal.
  • Page 13 POUR PLUS DE RENSEIGNEMENTS, COMMUNIQUER AVEC L’UNE DES SUCCURSALES MENTIONNÉES À L’ENDOS DU MANUEL. POUR LE CANADA, CONTACTER L’UNE DES SUCCURSALES DE VENTE INDIQUÉES AU DOS.
  • Page 14 Importante  Precauciones para el uso y almacenamiento • El aparato podría calentarse durante su funcionamiento. Esto es normal. • Apague el aparato antes de cambiar la longitud de corte o quitar el accesorio de peinado. • Es necesaria una supervisión cercana cuando el dispositivo sea utilizado por o cerca de niños o minusválidos.
  • Page 15: Identificación De Las Partes

    Identificación de las partes A Cuerpo principal     1 Gancho de montaje  2 Indicador de longitud  de corte  3 Interruptor  4 Tapa de batería  B Bloqueo de cuchilla 5 Palanca de limpieza   6 Cuchilla movible ...
  • Page 16 Utilización del cortapatillas  Recorte del bigote 1. Aplique unas cuantas gotas de aceite a las cuchillas. 2. Coja el accesorio de peinado por los lados y muévalo a la longitud de corte deseada (entre 3 mm y 15 mm). Indicador Longitud de corte 3 mm (1/8˝) 6 mm (1/4˝) 9 mm (3/8˝)
  • Page 17: Limpieza Del Recortador

     Darle forma a las patillas 1. Retire el accesorio de peinado y encienda el recortador. 2. Coloque el recortador en ángulo recto con su piel y corte las patillas.  Recorte del bello de su cuerpo Puede también recortar el bello de su cuerpo. Limpieza del recortador ...
  • Page 18 1. Retire la cuchilla. 2. Enjuague y quite cualquier recorte de cabello que se encuentre atorado en las cuchillas con agua corriente. 3. Enjuague y quite cualquier recorte de cabello que se encuentre dentro del recortador con agua corriente. • No retire la tapa de batería al lavar el cuerpo principal.
  • Page 19 PARA SU CONVENIENCIA, AHORA DISPONEMOS DE UNA LÍNEA NACIONAL DE LLAMADA GRATIS PARA LA COMPRA DE ACCESORIOS (SOLEMENTE EN USA); LLAME AL 1-800- 332-5368. PARA CANADÁ, CONTACTE A NUESTRAS SUCURSALES DE VENTA QUE SE MENCIONAN EN LA CONTRATAPA.
  • Page 20 IN USA CONTACT: Panasonic Consumer Electronics Company One Panasonic Way 2F-3 Secaucus, NJ 0094 IN PUERTO RICO CONTACT: Panasonic Puerto Rico, Inc. San Gabriel Industrial Park 65th Infantry Avenue KM9.5 Carolina, Puerto Rico 00630 IN CANADA CONTACT: AU CANADA, CONTACTER: Panasonic Canada Inc. 50 Ambler Drive, Mississauga, Ontario L4W 2T3 (905) 624-5010 En México: Panasonic de México, S.A de C.V. México D.F. Amores 1120, Col. del Valle, 03100 Tel: 54 88 10 00 Service • Assistance • Accessories...
