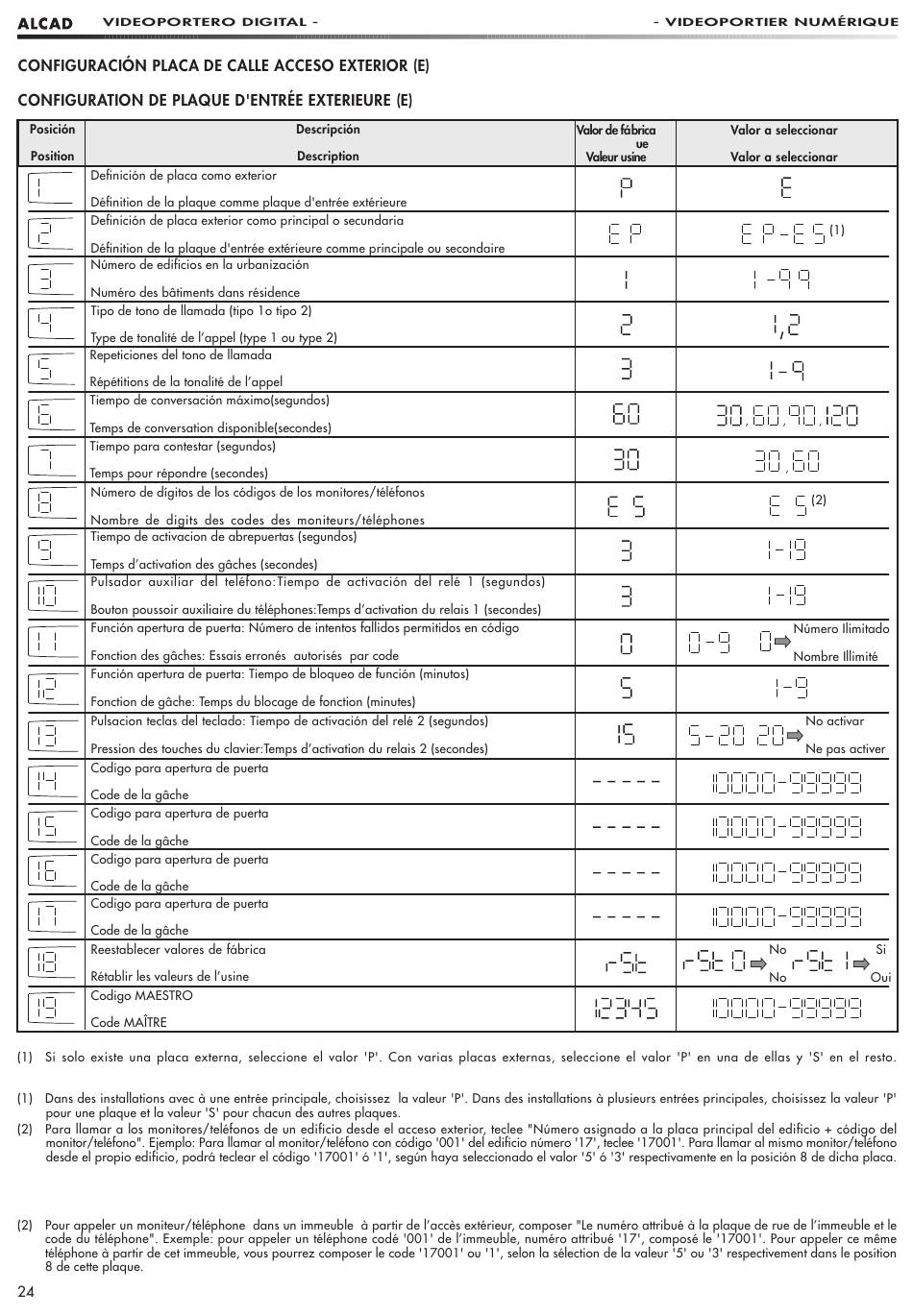

CONFIGURATION OF EXTERNAL ENTRANCE PANEL (E)
Position
Definition of panel as external entrance panel
Definition of external panel as main or secondary entrance panel
Number of buildings in the estate
Type of call tone (type 1 or type 2)
Number of times call tone is repeated
Maximum time setting for conversation (seconds)
Time setting to answer call (seconds)
Number of digits in the monitor/telephone codes
Length of time electric lock is activated (seconds)
Auxiliary pushbutton on the telephone:Time that relay 1 is activated (seconds)
Door-opening function: Number of failed attemps to enter code allowed
Door-opening function: Length of time function remains blocked(minutes)
Pressing keys on the keypad: Time that relay 2 is activated (seconds)
Door-opening code
Door-opening code
Door-opening code
Door-opening code
Revert to default values
MASTER code
(1) For installations with single exterior entrance panel, choose the value 'P'. For several exterior entrance panels, assign the value 'P' to one panel and the
value 'S' to each of the other panels.
(2) To make a call to the monitor/telephone of a building from the exterior entrance panel, key in “Number assigned to the main panel of the building +
monitor/telephone code”. For example: To make a call to the monitor/telephone with code ‘001’ of the building number ‘17’, key in ‘17001’. To make a
call to the same monitor/telephone from the building, it will be possible to key in the code ‘17001’ or ‘1’, depending on the value selected in position 8 of
that panel, ‘5’ or ‘3’.
DIGITAL VIDEO DOOR ENTRY SYSTEMS
Description
Default val Value to be chosen
Unlimited number
Do not activate
No Yes
