• This product is for use indoors.
• When using a commercially available stand or mounting
bracket, use a stand or mounting bracket that comply with
VESA specifications.
• Since the monitor is heavy, consult your dealer before
installing, removing or moving the monitor.
• Mounting the monitor on the wall requires special expertise
and the work must be performed by an authorized SHARP
dealer. You should never attempt to perform any of this
work yourself. Our company will bear no responsibility
for accidents or injuries caused by improper mounting or
mishandling.
• Use the monitor with the surface perpendicular to a level
surface. If necessary, the monitor may be tilted up to 20
degrees upward.
• When moving the monitor, be sure to hold it around the
periphery. Do not grasp the screen or tray. This may cause
product damage, failure, or injury.
• This monitor should be used at an ambient temperature
between 41°F (5°C) and 95°F (35°C). Provide enough
space around the monitor to prevent heat from
accumulating inside.

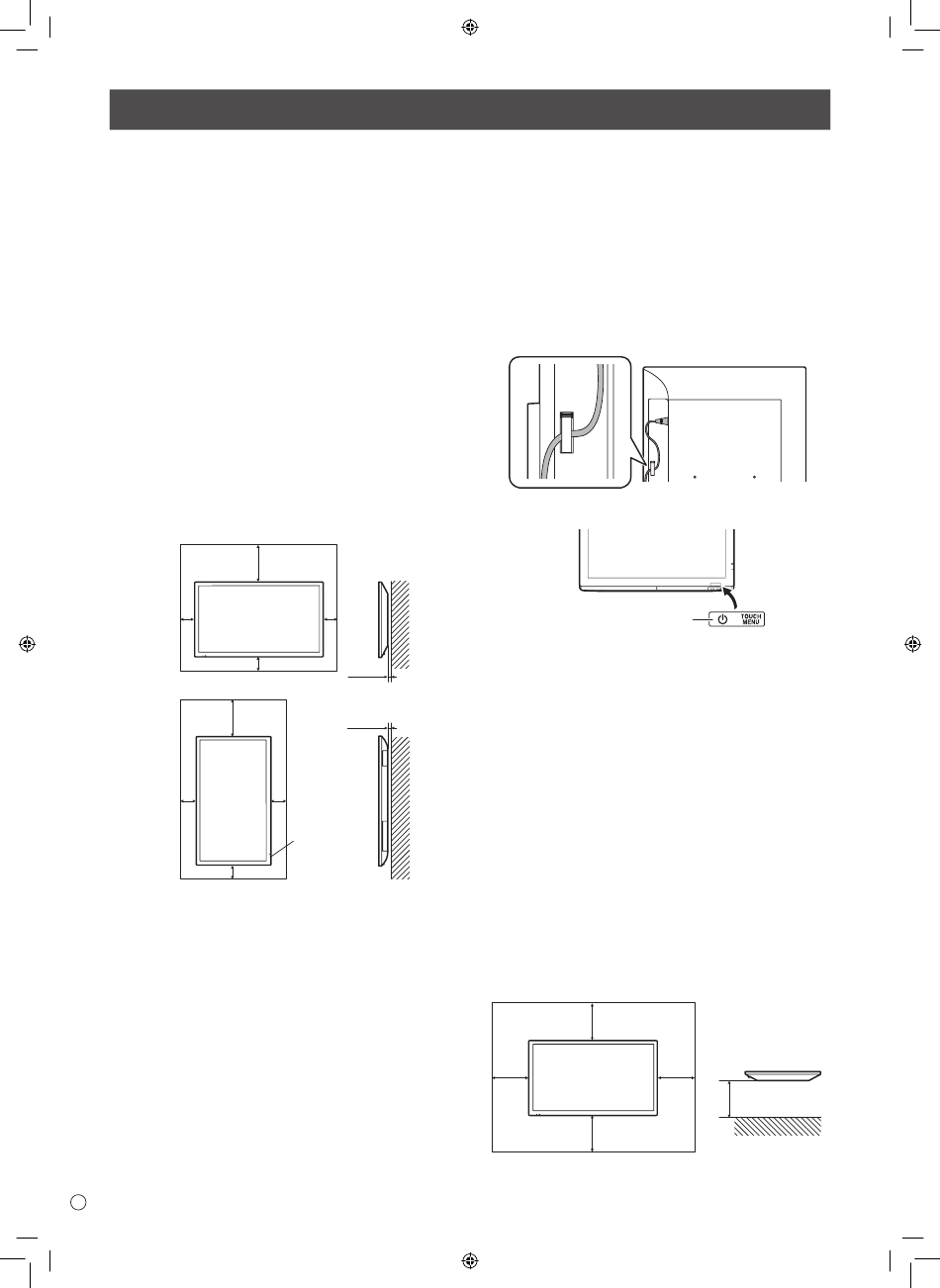

For the monitor in landscape orientation
2
[50]
For the monitor in portrait orientation
7-7/8 [200]
2
[50]
2 [50]
• If it is difficult to provide sufficient space for any reason
such as the installation of the monitor inside a housing, or
if the ambient temperature may be outside of the range
of 41°F (5°C) to 95°F (35°C), install a fan or take other
measures to keep the ambient temperature within the
required range.
• When installing two or more monitor units side-by-side,
provide space of at least 3/16 inch (5 mm) around them
to prevent stress on the adjacent unit or structure due to
thermal expansion.
• Do not block any ventilation openings. If the temperature
inside the monitor rises, this could lead to a malfunction.
• Do not place the monitor on a device which generates heat.
4
E

MOUNTING PRECAUTIONS

Unit: inch [mm]
7-7/8 [200]
2
[50]
2 [50]
5/16 [7]
Unit: inch [mm]
5/16 [7]
2
[50]
Power LED
• Adhere to the following when installing the monitor in its
portrait orientation. Failing to adhere to the following may
cause malfunctions.
- Install the monitor such that the power LED is located on
the bottom side.
- Set the PORTRAIT/LANDSCAPE INSTALL on the
MONITOR menu to PORTRAIT. (See OPERATION
MANUAL.)
- Be sure to clamp the power cord (supplied) by using the
supplied cable clamp (affixing type). When clamping the
power cord, take care not to stress the terminal of the
power cord. Do not bend the power cord excessively.
• Use the supplied vertical sticker when you install the
monitor in portrait orientation.
Operation panel
Flat installation
• When using the monitor laying flat on a surface (when
the monitor is tilted 20 degrees or more upward from the
perpendicular in relation to a level surface), consult an
authorized SHARP dealer because there are some specific
mounting conditions. Adhere to the following. Failing to
adhere to the following may cause malfunctions.
- Set HORIZONTAL INSTALLATION in the MONITOR
menu to UPWARD. (See OPERATION MANUAL.)
- Use the monitor at the ambient temperature within the
range of 41°F (5°C) to 86°F (30°C). Provide 7-7/8 inch
(200 mm) or more space between the monitor and the
floor or other mounting surfaces and surrounding objects
to prevent heat from accumulating inside. If it is difficult
to provide sufficient space or if the ambient temperature
may be outside of the range of 41°F (5°C) to 86°F (30°C),
install a fan or take other measures to keep the ambient
temperature within the required range.
- Do not press hard on the LCD panel or otherwise subject
it to impacts.
Flat installation (UPWARD)
7-7/8 [200]
7-7/8
[200]
7-7/8 [200]
Unit: inch [mm]
7-7/8
[200]
7-7/8
[200]
