Warranty; Rough-In Dimensions - Toto TS170D Manuel D'installation Et D'utilisation

Dual volume control
valve trim
TS170D
Dual volume control
valve
TSKD
Thermostatic mixing
valve trim
TS170T
Thermostatic mixing valve
TSKT

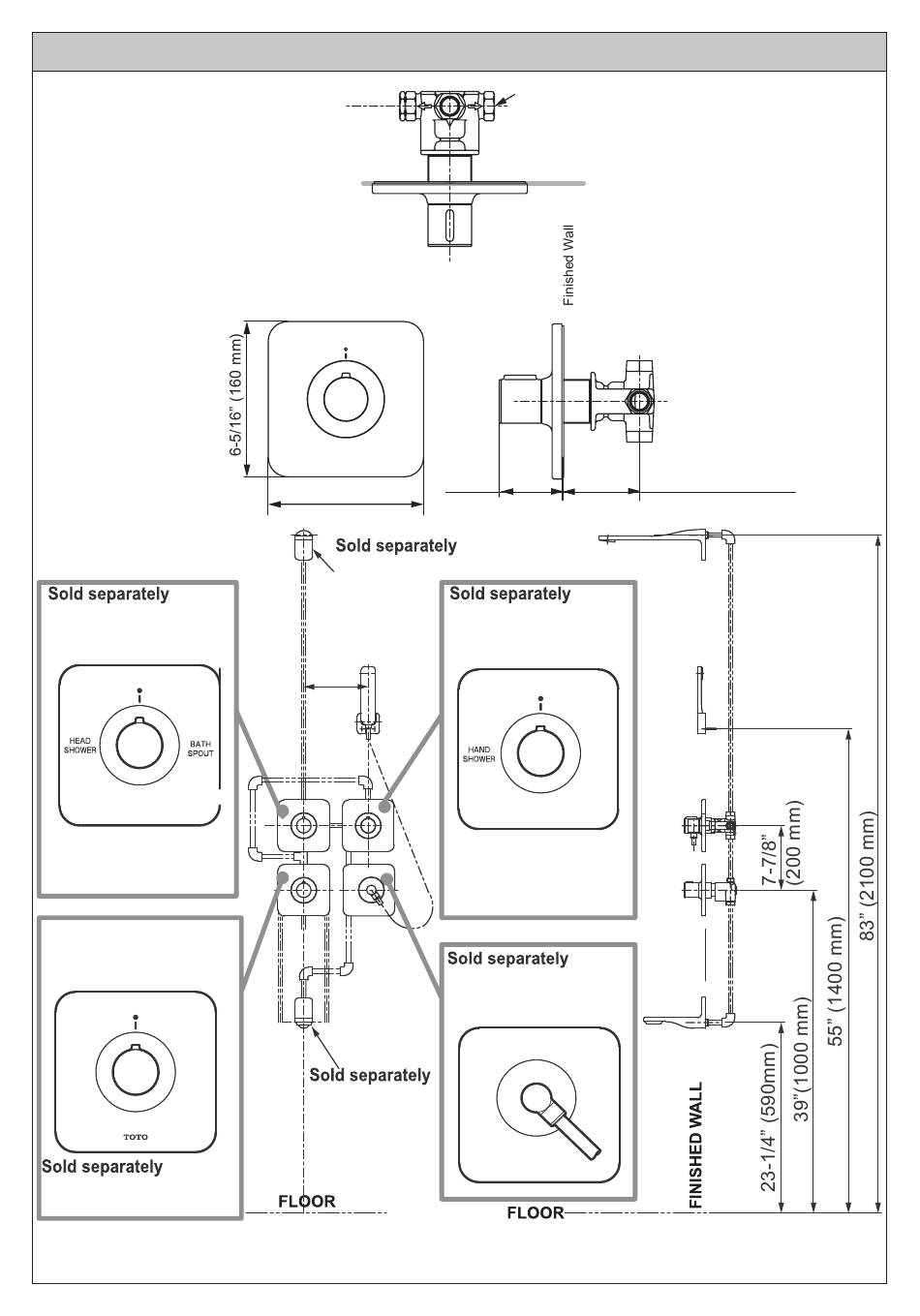

RoUGh-In DIMenSIonS

2-9/16"
6-5/16" (160 mm)
65 mm
Showerhead
TS170A
Single volume control
valve trim (handshower)
TS170C1
7-7/8"
(200 mm)
Single volume
control valve
TSKA
Handshower and
handshower trim
TS170H
Bath spout
TS170E
6
1/2" NPT
Finished Wall
2-15/16" (75mm) MIN
3-9/16" (90mm) MAX
