Mounting the Hood
1
7. Hood heights between 40" to 50" require lateral support brackets to be installed to the two top
support frame cut off arms and their corresponding bottom support frame arms. Install lateral
support brackets by (12) M4 x 8 sheet metal screws shown in FIG. D.

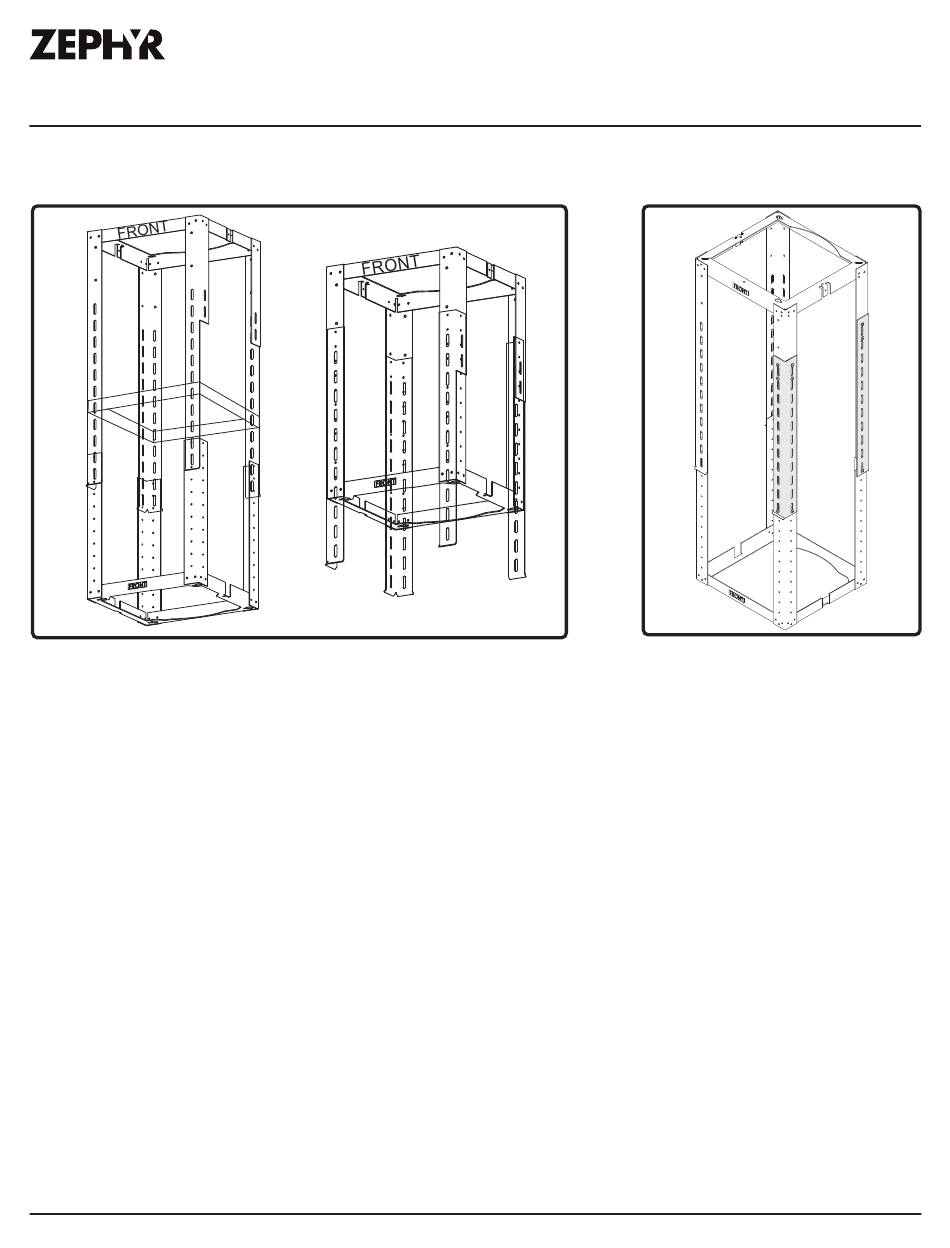

8. Hood heights between 45" to 50" require a square support bracket to be installed inside the
support frame. Install square support bracket to top support frame arms by (8) M4 x 8 sheet metal
screws. (FIG. E1) Top support frame arms extend past lower support frame bracket with shorter
hood heights. (FIG. E2).
9. Lift support frame assembly up to the ceiling making sure the word "front" on the top support
frame faces the front of the hood where the controls will be located (FIG. F). The key-holes on the
top support frame should cover the wood screws previously installed in the ceiling. Slide support
frame towards narrow end of key-holes to lock the frame in place.
10. Install the last (2) 1-1/2" wood screws with washers into the two remaining corners of the top
support frame to secure it to the ceiling. Tighten all screws.
Modena Island Use, Care, and Installation Guide
2
FIG. E
Installation Instructions
FIG. F
