10 | Starting up the Tronic 3000C Pro

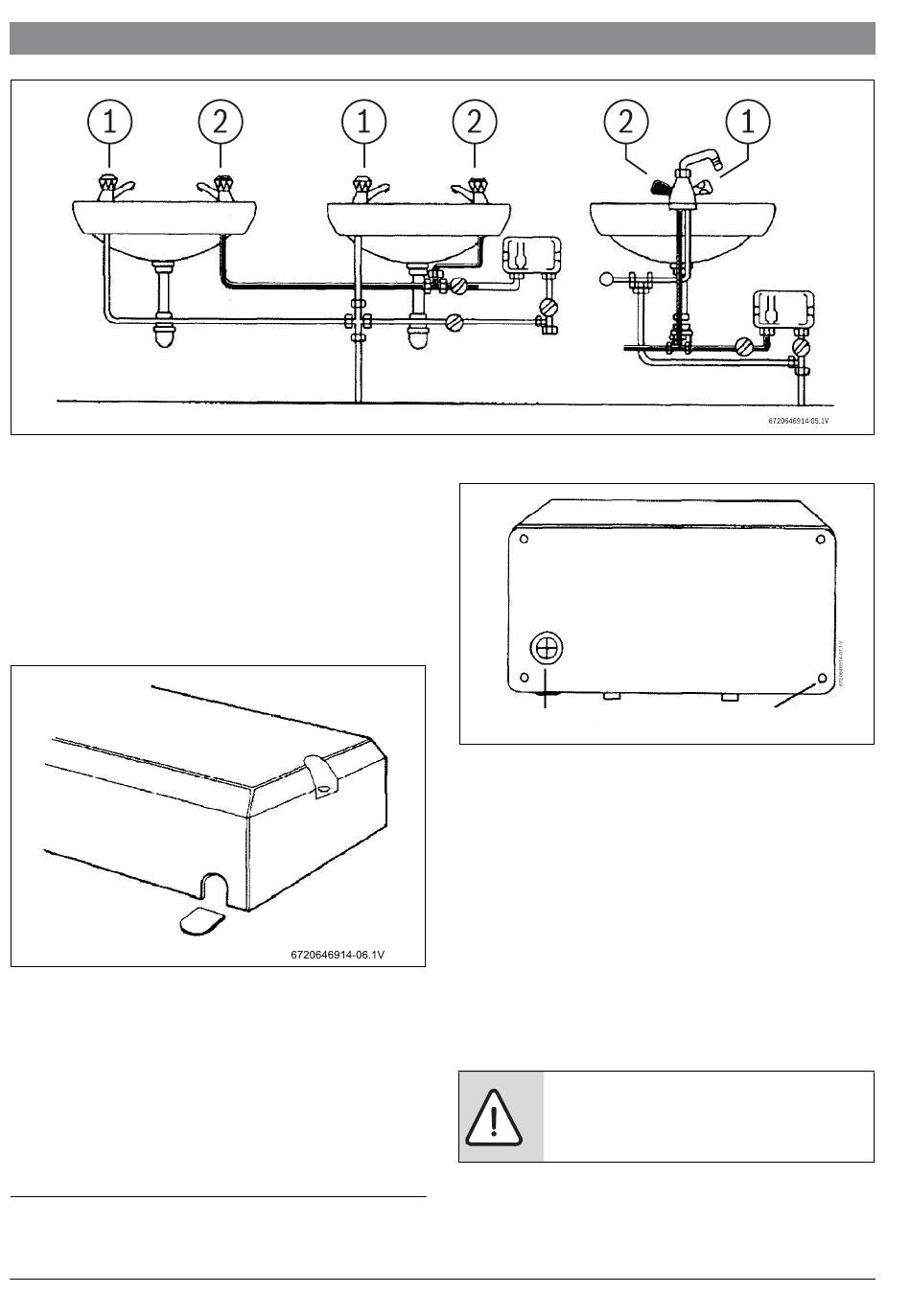

Fig. 4 Examples of installations (Show front view)
[1] Cold water
[2] Hot water
4.5.2 Deciding the wiring route
You have a choice of whether to feed the electric cable through
the cover bottom or through the back of the unit,
▶ If it is going to be through the cover bottom, cut out the
plastic lug to expose the rubber sleeve (Fig. 5 ):
Fig. 5 Unit cover
▶ If it is going through the back of the cover unit, cut through
the grommet on the backplate with a sharp knife. Make
sure that you do not remove the grommet from the
backplate (Fig. 6 ):
5 Starting up the Tronic 3000C Pro
6 720 647 088 (2017/05)
1
Fig. 6 Back of unit
[1] Grommet
[2] Fixing holes
▶ Feed the cable through the grommet before you mount the
unit to the wall. If you are using an approved cable fitting,
remove the grommet.
4.5.3 Mounting on the wall
▶ Undo the retaining screws on the cover and take the cover
of the unit. Hold the backplate in position against the wall
while you mark the four mounting holes.
▶ Drill the holes and secure the unit to the wall using the four
no. 8 wood screws supplied.
WARNING:
▶ Do not install a non-return check valve
within 6 feet of the inlet.
2
