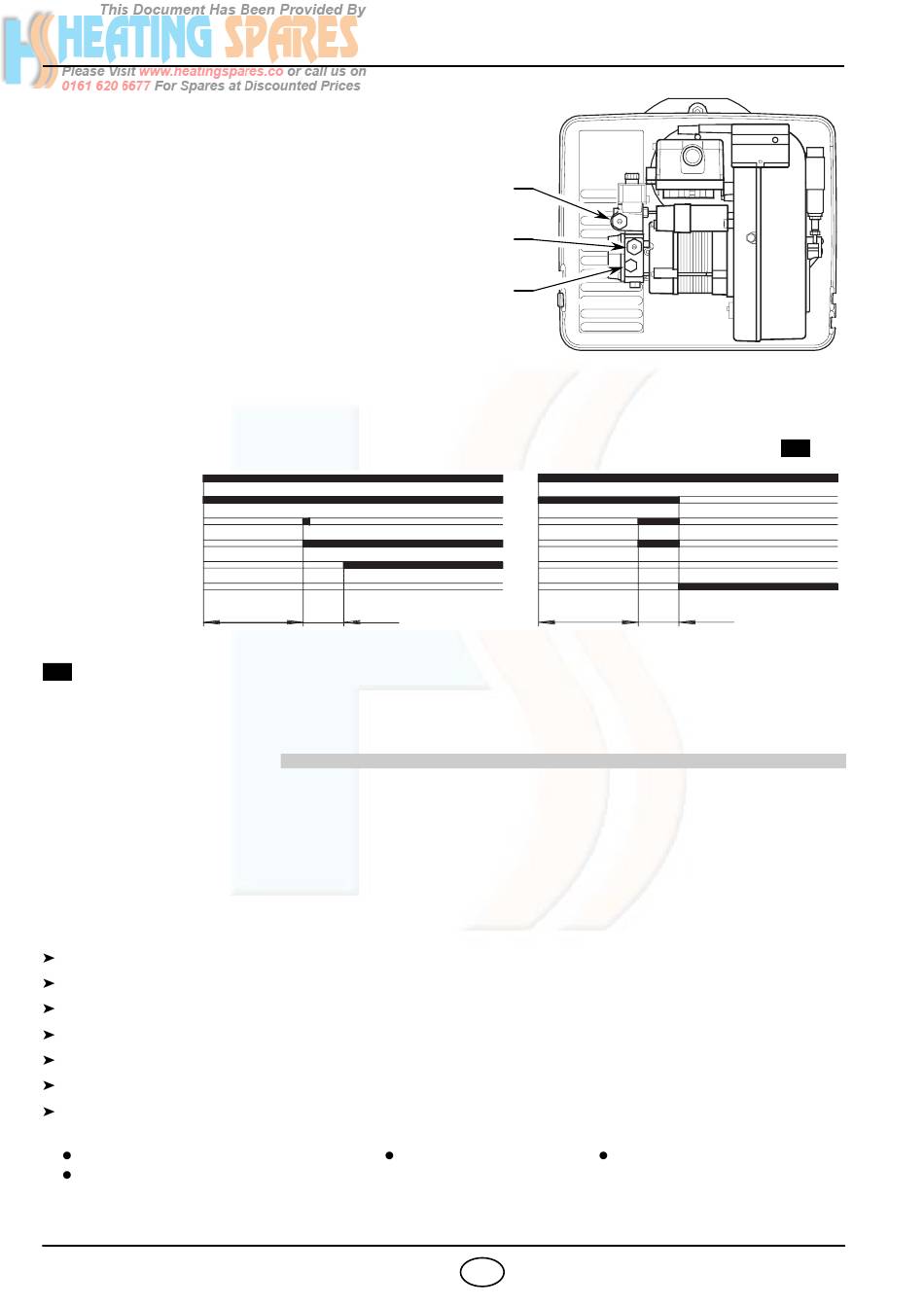

STAGE ADJUSTMENT
Adjustment of air shutter
Unloosen the nut (6), turn the screw (7) until the air shutter
(1) reaches the position desired.
Then lock the nut (6).
Pressure regulation
This is set at 14 bar at the factory.
Should such pressure be reset or changed, just turn the
screw (8).
The pressure gauge must be mounted in place of cap (5).
4.9 BURNER START-UP CYCLE
Normal
Thermostat
Green led and motor
Ignition transformer
st
1
stage valve
nd
2
stage valve
Lock-out lamp
E
Lock out is indicated by a lamp on the control box (3, fig. 1, page 1).
5.
MAINTENANCE
The burner requires periodic maintenance carried out by a qualified and authorised technician in conformity
with legislation and local standards.
Maintenance is essential for the reliability of the burner, avoiding the excessive consumption of fuel and
consequent pollution.
Before carrying out any cleaning or control always first switch off the electrical supply to the
burner acting on the main switch of the system.
THE BASIC CHECKS ARE:
Check that there are not obstructions or dents in the supply or return oil pipes.
Clean the filter in the oil suction line and in the pump.
Clean the flame detector, (fig. 12, page 5).
Check for correct fuel consumption.
Replace the nozzle (fig. 14, page 7) and check the correct position of electrodes (fig. 15, page 7).
Clean the combustion head in the fuel exit area, on the diffuser disc.
Leave the burner working without interruptions for 10 min. and check the right settings at 1 st and 2 nd
stage of all components stated in this manual. Then carry out a combustion check verifying:
Smoke temperature at the chimney;
Smoke value according to opacity smokes index according to Bacharach scale.
2900
Supplied By www.heating spares.co Tel. 0161 620 6677
~
~
12s
5s
Fig. 19
4
8
5
Lock-out due to failure to light
~
Content of CO
( % );
2
9
GB
~
12s
5s
Content of CO (ppm);
