5.4 Mounting ThunderION (slide bracket)

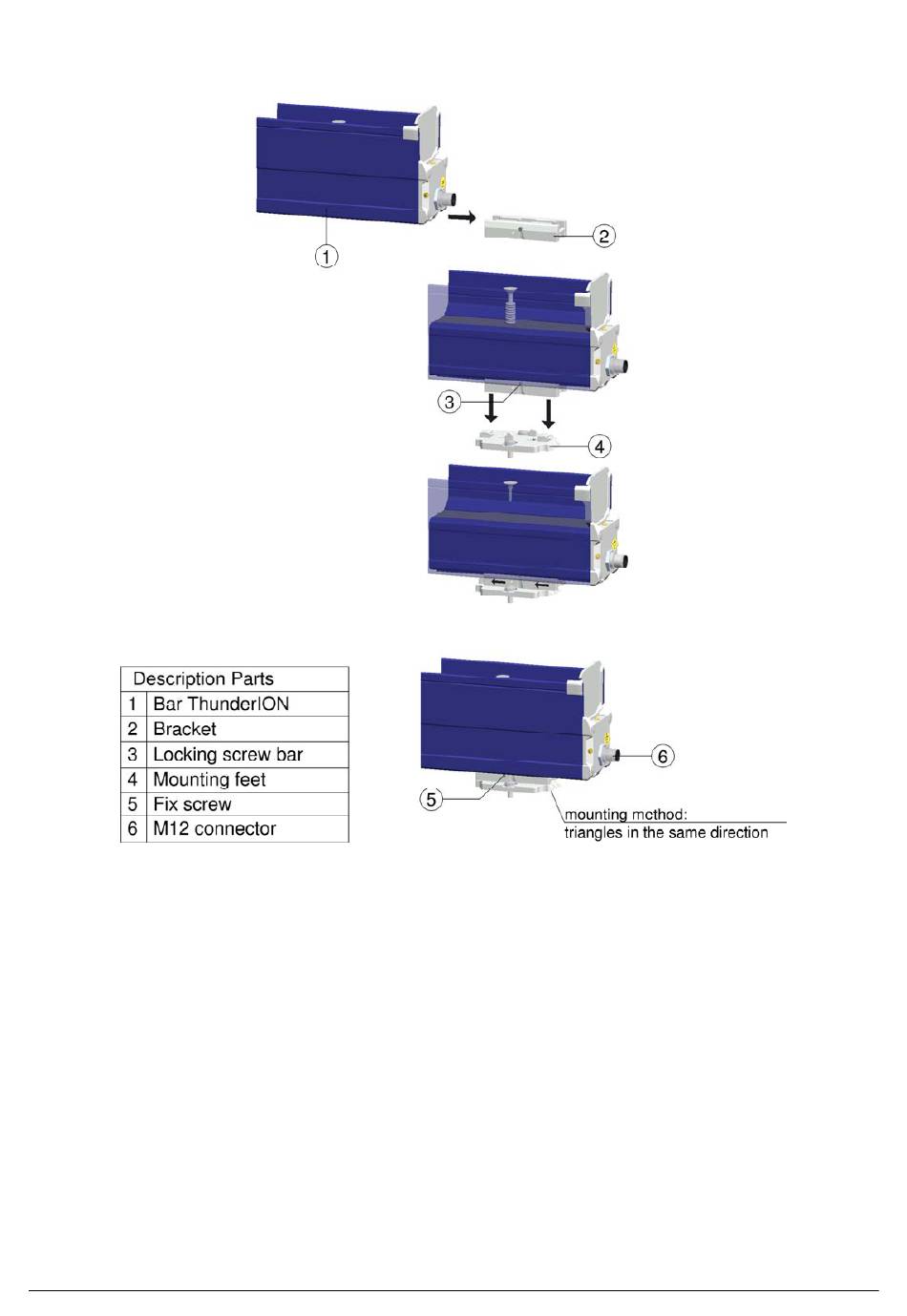

Figure 8: Mounting with slide bracket
1. Mount the anti-static bar using the mounting materials provided (see fig. 3, 4, 5 and 6).
2. Mount the feet (nr.4) to the machine, keeping the triangles (mounting method) in the
same direction.
3. Slide the brackets (nr.2) onto the anti-static bar (nr.1).
Keep the distance(s) between the brackets (nr.2) and the mounting feet (nr.4) equal and
fixate the brackets using the adjusting screw (nr.3).
4. Set the anti-static bar with the brackets onto the mounting feet and slide the entire device
in the opposite direction of the triangles (mounting method).
5. Secure the anti-static bar in the mounting feet by turning the adjusting screws (nr.5) into
the bracket. You should at least secure the two outer brackets.
6. Connect the anti-static bar according paragraph 5.6. Make sure that the cable is lead
safely to the power supply.
