Fig. 7: Installation in unit series ESS...K, ESF...K, ESFZ...K,
3.5
Supply connection

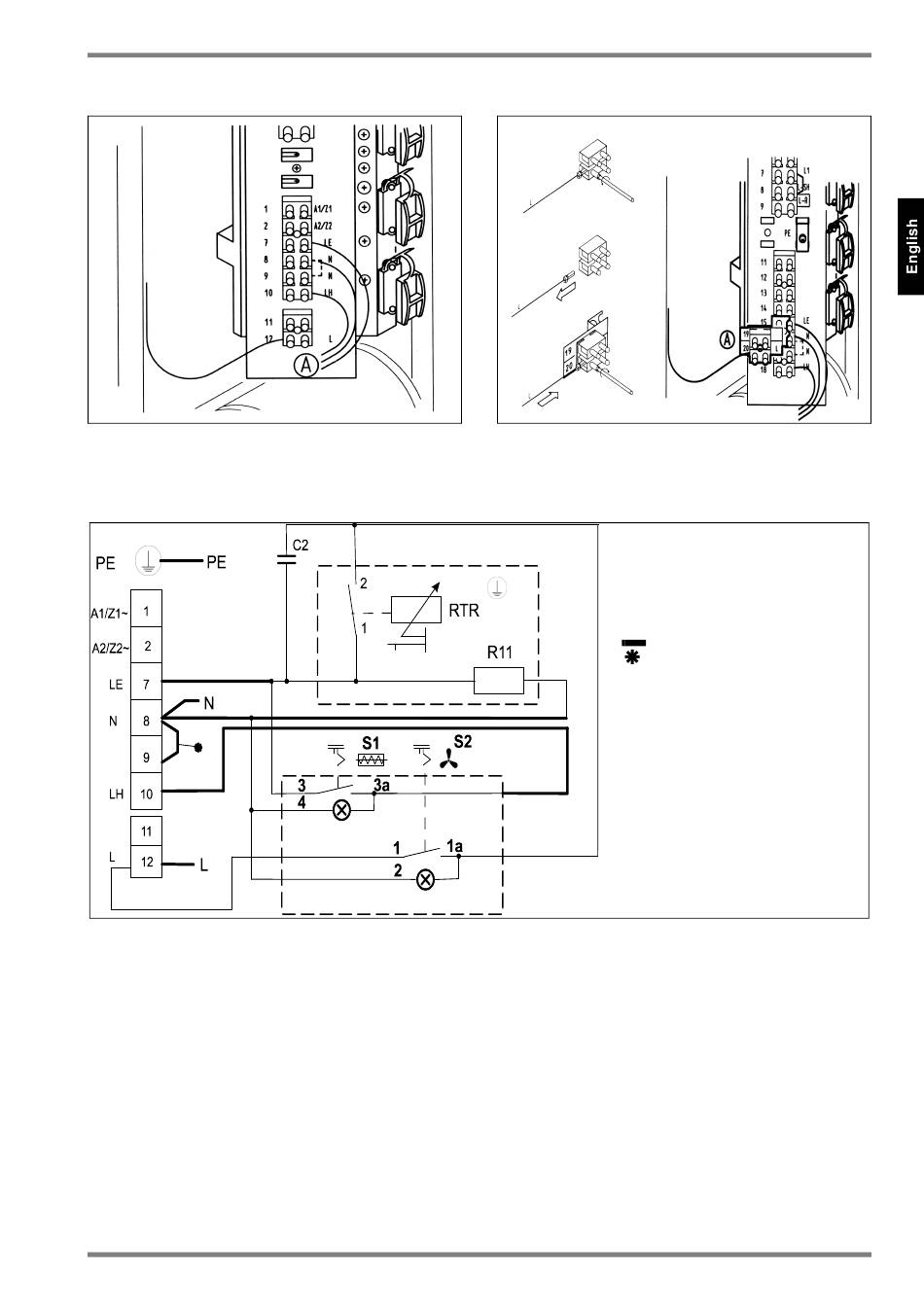

Fig. 9: Supply connection for ESS...K, ESF...K, ESFZ...K, VFMi...
www.dimplex.de/en
VFMi...
459270.66.03 · 07/14/C
Fig. 8: Installation in unit series: VFDi..., VNDi..., VTDi...,
RTR -Temperature controller
C2 - Noise suppression capacitor
R10 - Series resistor
R11 - Thermal resistor
S1 - Auxiliary heating switch
S2 - Mains on/off switch
- Connected by installer
Depends on model
RTEV 99
FSD..., FZD..., VFR...
