hreaded Bushing
T

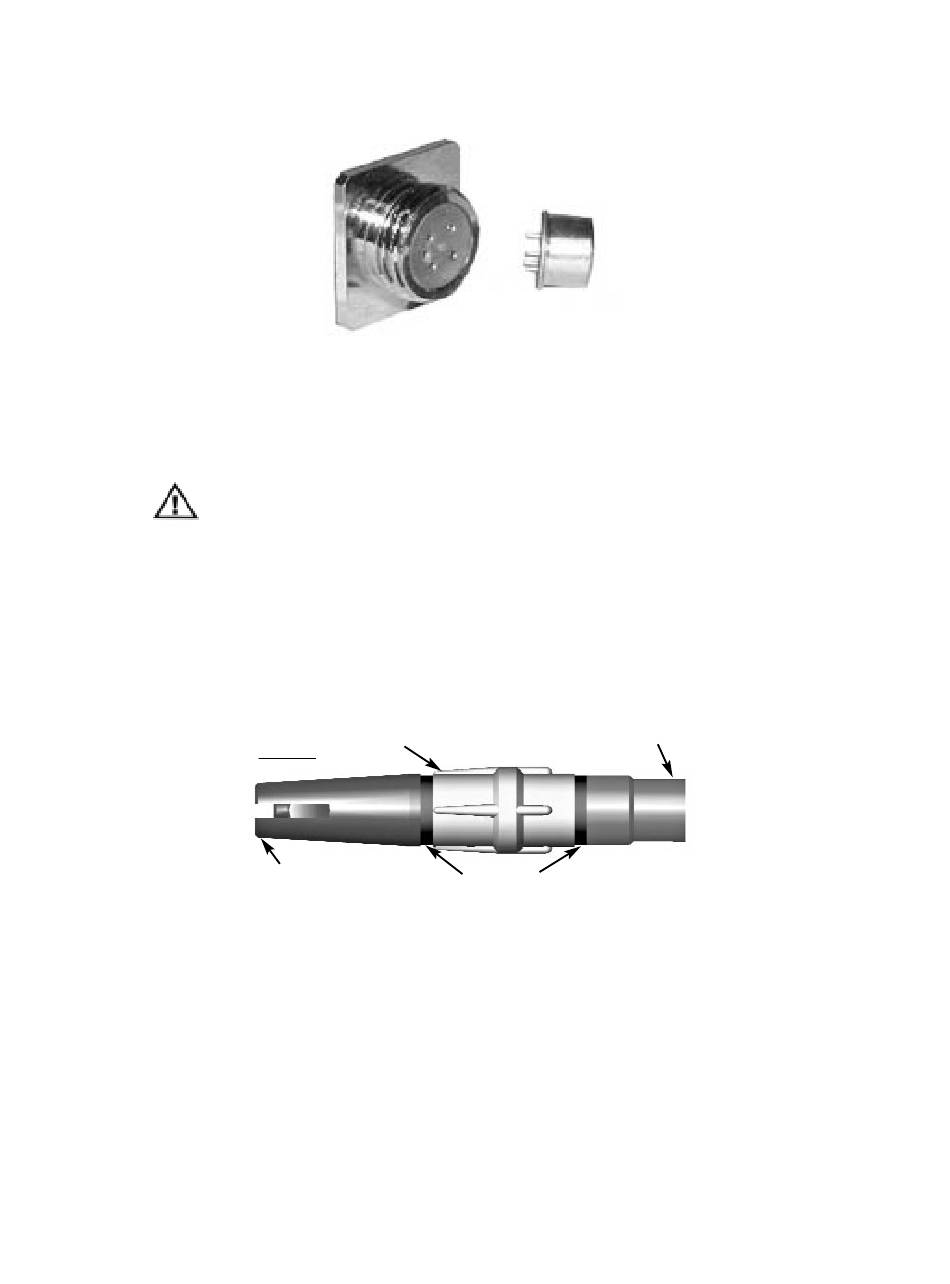

5. Grasp the sensor and align the pins with the corresponding holes. CAUTION: the sensor can
only be inserted one way. When properly aligned, firmly push the sensor into the connector
until it stops.
6. Install the flexible probe by screwing it clock-wise onto the threaded brass bushing around
the sensor until it is finger tight.
CAUTION: NEVER operate the unit without the flexible probe properly installed.
Sensor contamination, erratic performance and other problems may occur.
Additionally, the sensor will become quite hot during operation, which could
be dangerous.

PROBE TIP AND FILTER

The pointed tip of the flexible probe is removable for cleaning and access to the filter cartridge.
(see Figure 9). Once the tip is removed access to the filter cartridge is possible.

FILTER CARTRIDGE

INSTALL AS SHOWN
TIP
1. Remove the probe tip by firmly grasping both the probe and the tip and rotating the tip
counter-clockwise.
2. Inspect the filter inside the filter cartridge. If any discoloration or particulate is
visible, the filter cartridge should be discarded and replaced. A pack of replacement filter
cartridge is included with your unit. Additional filter cartridge may be ordered – refer to the
Replacement Parts section on page 17 for the correct part number.
FIG 8
Sensor
Pins
PROBE ASSEMBLY
"O" RING
15
FIG 9
