Geze Tsa 360 - entrematic PSL Retrofit Kit Manuel D'installation

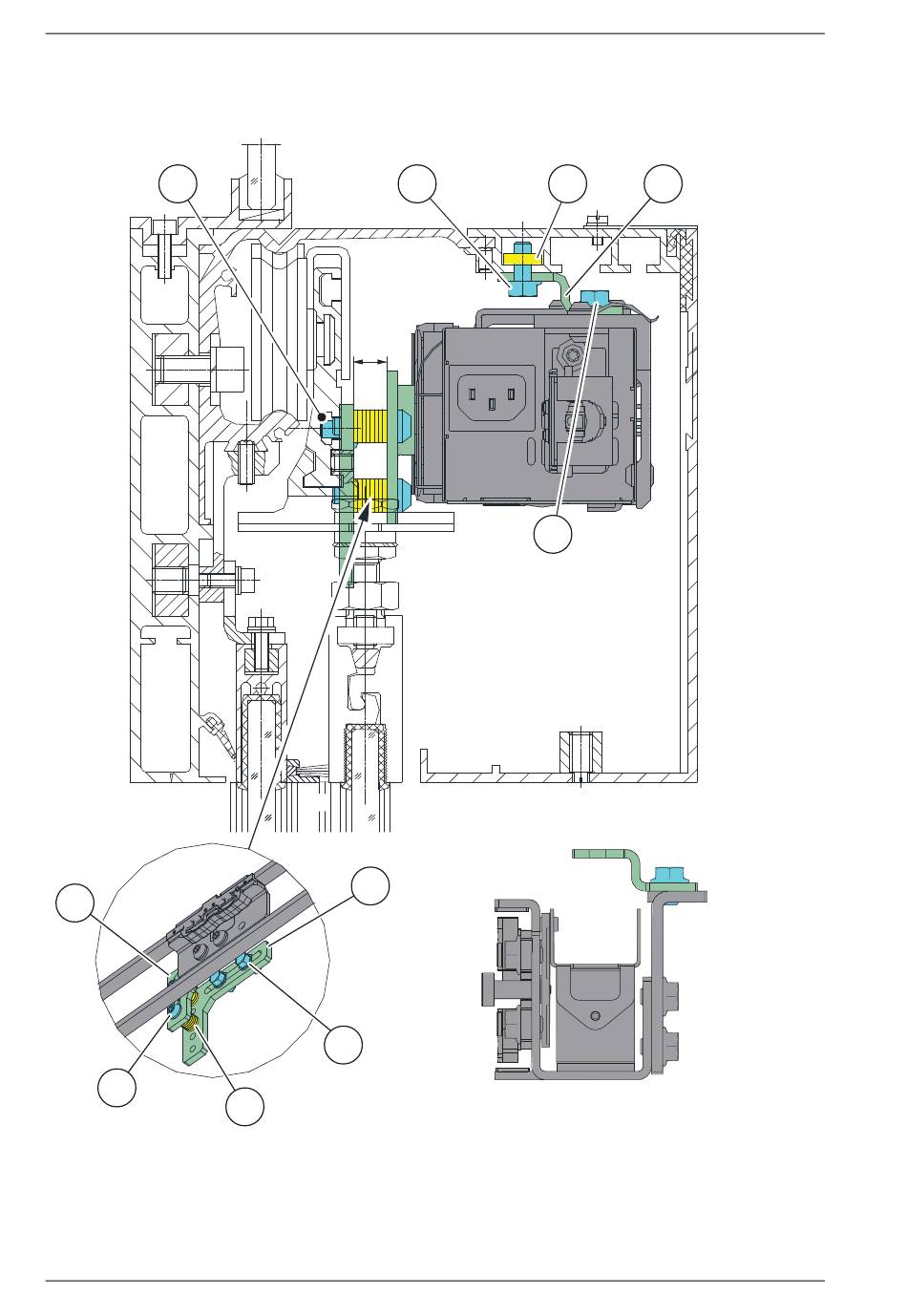

4 Installation mécanique

GEZE TSA 360

Original T-nuts or
ISO 4035 (ML6M)
M6 FZB 8.8 (4x)
31
24
36
ISO 14583 (MRT-TT)
M6x20 FZB 8.8 (4x)
50
DIN 6921 (M6SF)
M6x14 FZB 8.8 (6x)
12
25
DIN 6921 (M6SF)
M6x12 FZB 8.8 (4x)
32
ISO 7089 (BRB)
14
6.4x12x1.5 FZB (32x)
24
25
28
Edition 2020-03-12
Square nut M6 (6x)
33 29
11
DIN 6921 (M6SF)
M6x8 FZB 8.8 (6x)
Support de connexion
Support 1
Support de montage
28
