Dorma Es 70 - entrematic PSL Retrofit Kit Manuel D'installation

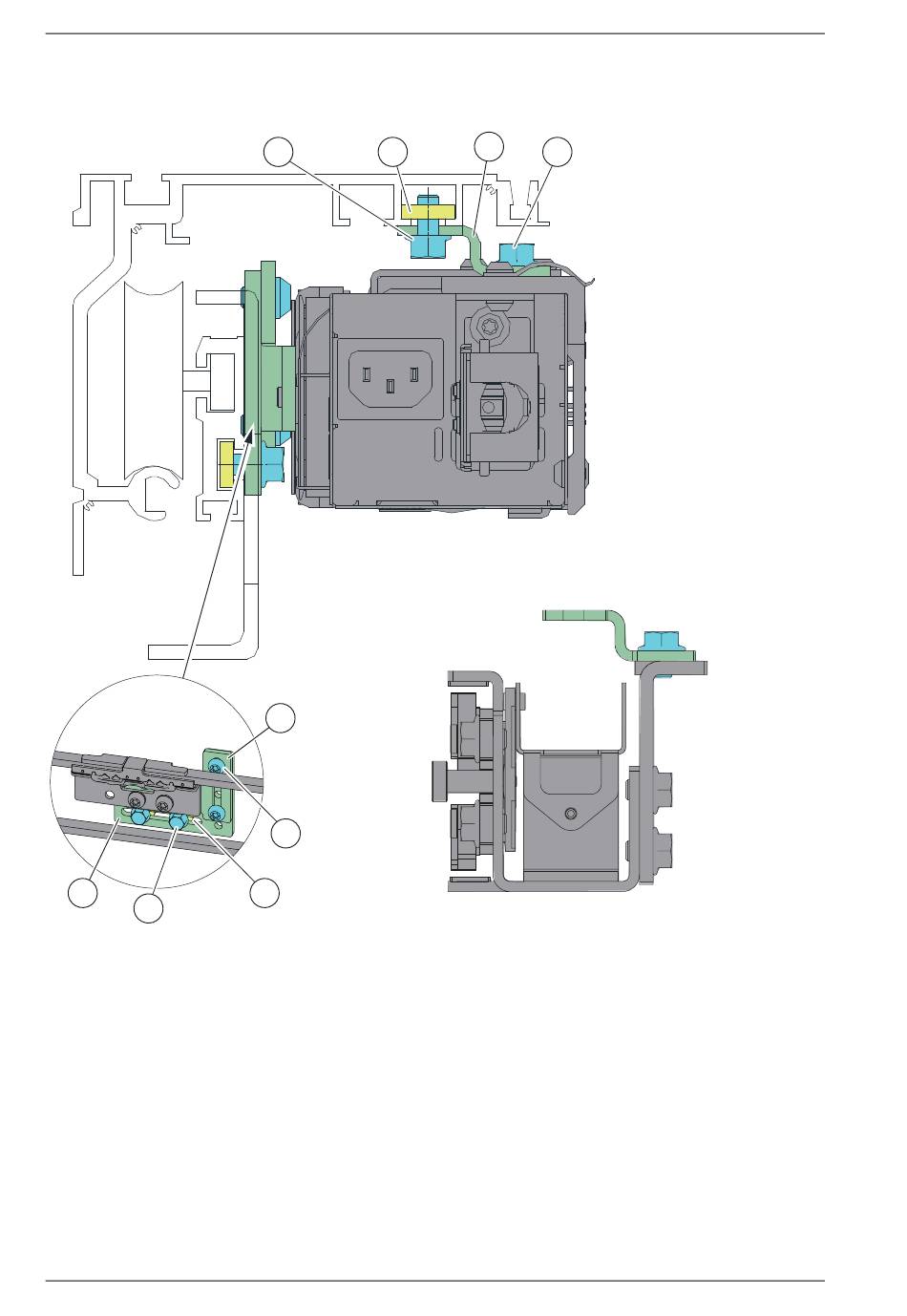

4 Installation mécanique

DORMA ES 70

25
32
DIN 6921 (M6SF)
M6x12 FZB 8.8 (4x)
38
DIN 6921 (M6SF)
M6x14 FZB 8.8 (6x) Square nut M6 (6x)
33 29
24
ISO 14583 (MRT-TT)
4
M6x10 FZB 8.8 (4x)
29 Square nut M6 (4x)
24
28
Edition 2020-03-12
28
DIN 6921 (M6SF)
11
M6x8 FZB 8.8 (6x)
Support de connexion
Support de montage
1018482-EMfr-FR-3.0
