MOUNTING PRECAUTIONS

• This product is for use indoors.
• Since the monitor is heavy, consult your dealer before
installing, removing or moving the monitor.
• When installing, removing or moving the monitor, ensure
that this is carried out by at least 2 people.
• A mounting bracket compliant with VESA specifications
is required. Do not use any screw holes other than VESA
holes for installation.
• When moving the monitor, be sure to hold it with either
handles or the corners on the bottom of the unit. Do not
hold the LCD panel. This may cause product damage,
failure, or injury.
• Install the monitor with the surface perpendicular to a level
surface. If necessary, the monitor may be tilted up to 20
degrees upward or downward.
• When performing an installation where the monitor is
stacked, please install it such that load is not placed on the
monitor frame.
• Mounting the monitor on the wall requires special expertise
and the work must be performed by an authorized SHARP
dealer. You should never attempt to perform any of this
work yourself. Our company will bear no responsibility
for accidents or injuries caused by improper mounting or
mishandling.
• This monitor should be used at an ambient temperature
between 32°F (0°C) and 104°F (40°C).
• Be careful of high temperatures in the surrounding area.
When installing the monitor inside a housing, or if the
ambient temperature may be outside of the range of 32ºF
(0ºC) to 104ºF (40ºC), install a fan or take other measures
to keep the ambient temperature within the required range.
• Temperature condition may change when using the display
together with the optional equipments recommended by
SHARP. In such cases, please check the temperature
condition specified by the optional equipments.
• Adhere to the following when installing the monitor in its
vertical orientation. Failing to adhere to the following may
cause malfunctions.
IMPORTANT INFORMATION ............................................1
DEAR SHARP CUSTOMER ..............................................3
SAFETY PRECAUTIONS ..................................................3
TIPS AND SAFETY INSTRUCTIONS ...............................5
MOUNTING PRECAUTIONS ............................................6
Supplied Components .....................................................7
Connecting Peripheral Equipment .................................7
Multiple monitor connection .........................................8
Preparing the Remote Control Unit ..............................10
Installing the batteries ................................................10
Remote control operation range .................................10
Connecting the Power Cord .........................................10
This manual contains instructions regarding connection and installation.
For other instructions, refer to the instruction manuals in the "Manual" folder on the included CD-ROM.
Adobe Reader is required in order to view the instruction manuals.
6
E
- To install in horizontal orientation, rotate the monitor 90
degrees to the right.
- Set the MONITOR on the SETUP menu to PORTRAIT.
(See Operation guide.)
- Be sure to secure the power cord (supplied) to the cable
clamp attachment below with the supplied cable clamp.
Make sure that the power cord (supplied) does not supply
power to the terminal when being secured and do not
over bend the power cord (supplied).
• Do not block any ventilation openings. If the temperature
inside the monitor rises, this could lead to a malfunction.
• After mounting, please carefully ensure the monitor is
secure, and not able to come loose from the wall or mount.
• Do not place the monitor on a device which generates heat.
• Be sure to use a wall-mount bracket designed or
designated for mounting the monitor.
• This monitor is designed to be installed on a concrete wall
or pillar. Reinforced work might be necessary for some
materials such as plaster / thin plastic board / wood before
starting installation.
This monitor and bracket must be installed on a wall which
can endure at least 4 times or more the weight of the
monitor. Install by the most suitable method for the material
and the structure.
Contents
Binding Cables ............................................................... 11
Removing the Handles .................................................. 11
Affixing the Protection Covers ..................................... 11
Turning Power On/Off ....................................................12
Turning on the main power.........................................12
Turning power on/off ..................................................12
Disabling power on/off operations ..............................12

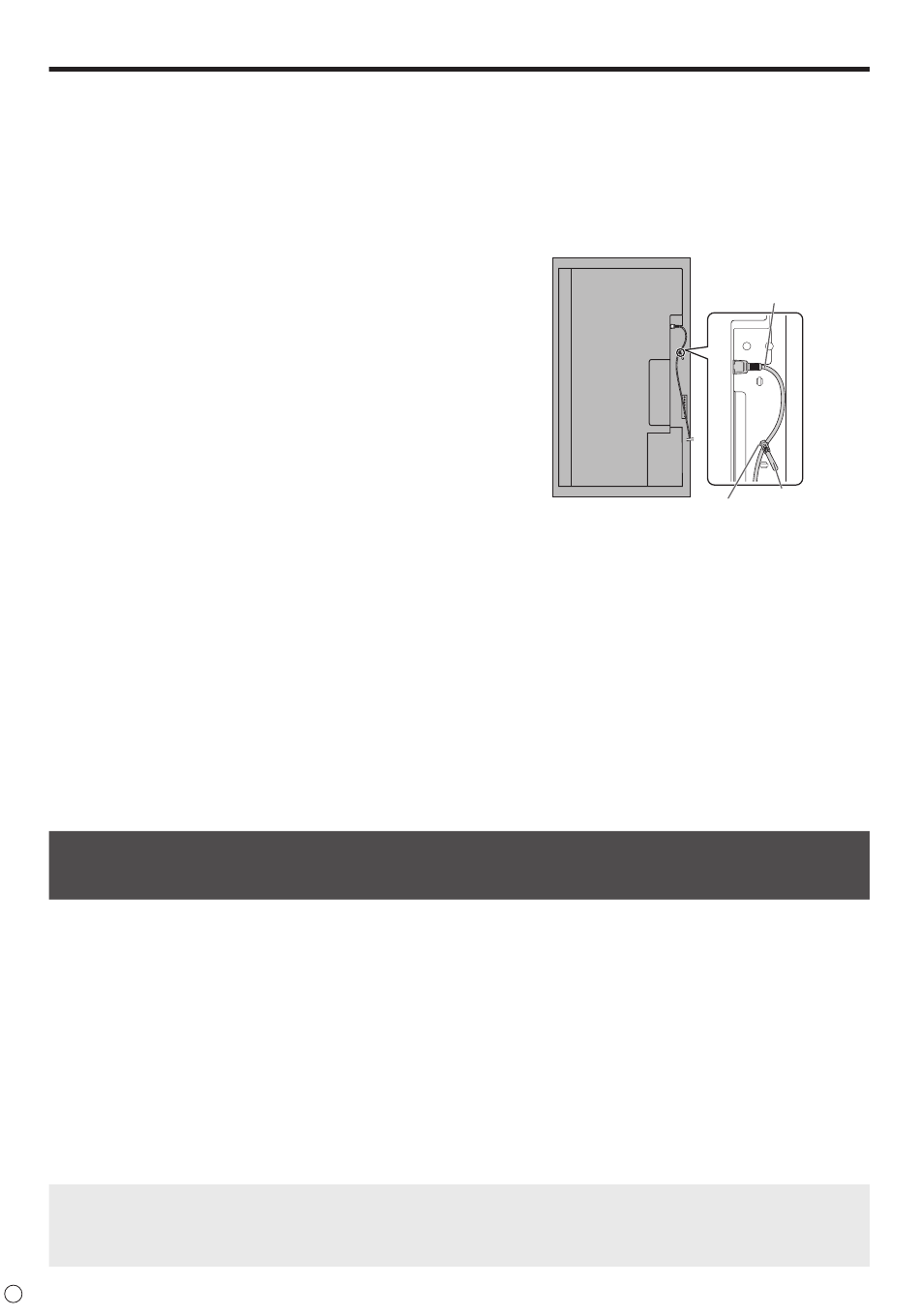

Power cord (Supplied)
