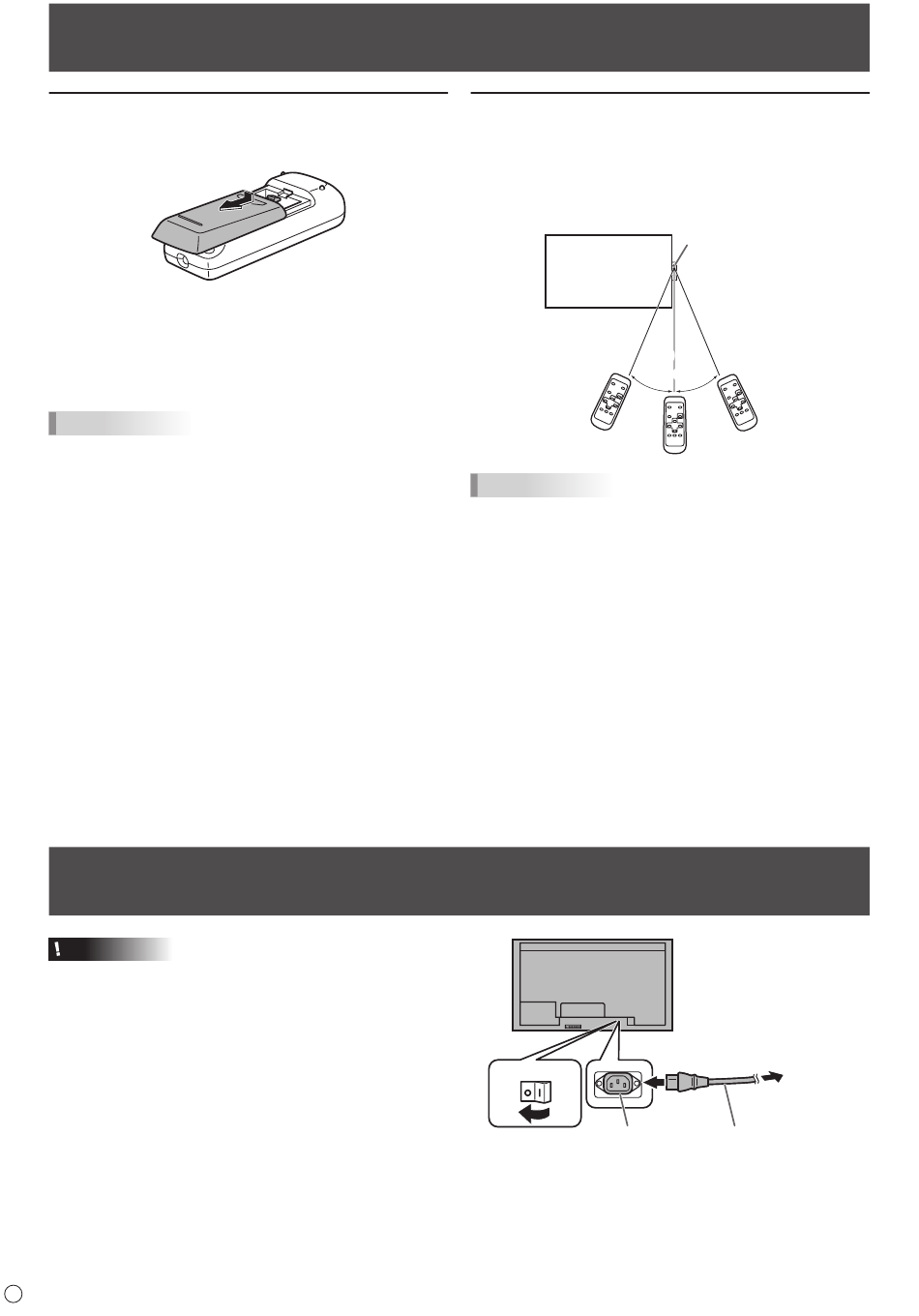

Preparing the Remote Control Unit

Installing the batteries

1. Press the cover gently and slide it in the direction of the
arrow.
2. See the instructions in the compartment and put in the
batteries (R-6 ("AA" size) x 2) (supplied with the PN-ZR01
(optional)) with their plus (+) and minus (-) sides oriented
correctly.
3. Close the cover.
TIPS
• When the batteries become exhausted replace them with
new (commercially available) batteries.
• The supplied batteries (R-6 ("AA" size) x 2) may become
exhausted quickly depending on how they are stored.
• If you will not be using the remote control for a long time,
remove the batteries.
• Use manganese or alkaline batteries only.
Caution
• Use only the power cord supplied with the monitor.
1. Turn off the main power switch.
2. Plug the power cord (supplied) into the AC input terminal.
3. Plug the power cord (supplied) into the AC power outlet.
10
E

Connecting the Power Cord

Remote control operation range

The operation range of the PN-ZR01 (optional) remote control
unit is approx. 23 feet (7 m) when aimed directly at the remote
control sensor box. When used at an angle of approx 10° from
the center to the top/bottom/right/left of the remote control
sensor, use it within a distance of approx 16.4 feet (5 m).
16.4 feet
(5 m)
10º
TIPS
• Do not expose the remote control unit to shock by dropping
or stepping on it. This could lead to a malfunction.
• Do not expose the remote control unit to liquids, and do not
place it in an area with high humidity.
• The remote control unit may not work properly if the remote
control sensor is under direct sunlight or strong lighting.
• Objects between the remote control unit and the remote
control sensor may prevent proper operation.
• Replace the batteries when they run low as this may
shorten the remote control's operation range.
• If a fluorescent light is illuminated near the remote control
unit, it may interfere with proper operation.
• Do not use it with the remote control of other equipment
such as air conditioner, stereo components, etc.
• Adjust the angle of the PN-ZR01 (optional) remote control
sensor and have it face the area where operation with the
remote control unit will take place.
Main power switch
1
AC input terminal
Remote control
sensor
16.4 feet
(5 m)
23.0 feet 23.0 feet
(7 m) (7 m)
10º
3
For power
outlet
2
Power cord (Supplied)
