Index to Parts and Controls

Refer to the pages indicated in parentheses for details.

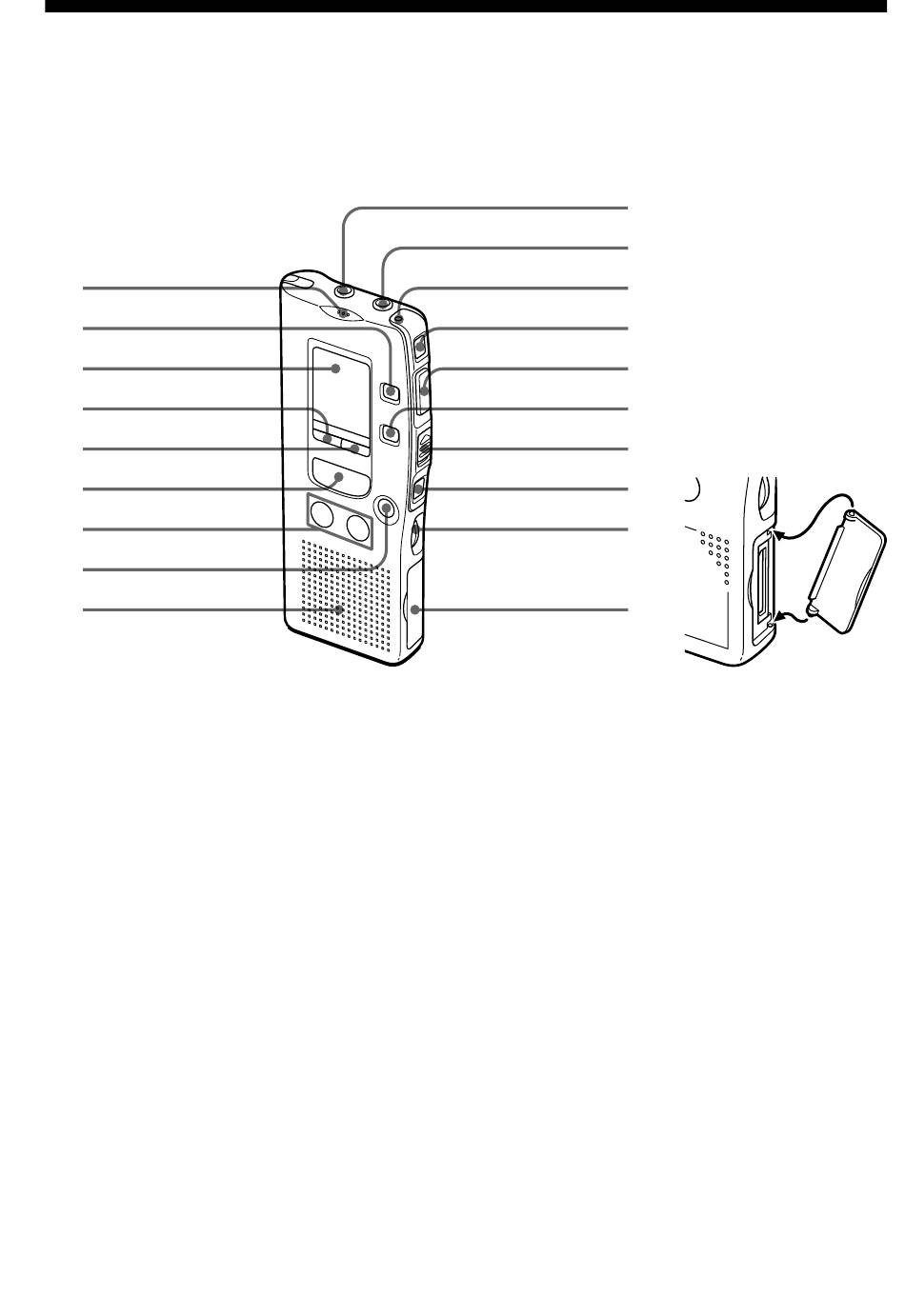

Main unit

1
2
3
4
5
6
7
8
9
1 MIC (built-in microphone)
(10)
2 INDEX button (24)
3 Display window (43)

4 DISPLAY button(34)

5 MENU button (8, 28, 35, 36,
38)
6 NPLAY/STOP•EXECUTE
(play/stop•enter) button
(8, 15, 29, 35, 36, 38)
7 .REVIEW/>CUE (fast
backward, review/fast
forward, cue•selection of
menu mode) button (8, 14,
28, 35, 36, 38)
8 xSTOP button (11, 16)
9 Speaker
42
GB
!º
!¡
!™
!£
!¢
!∞
!§
!¶
!•
!ª
q; MIC (PLUG IN POWER) jack
(22)
qa EAR (earphone) jack (12, 15)
qs OPR (operation) indicator
(10, 15)
qd X PAUSE button(11, 16)
qf zREC (record) /STOP
button(10, 21)
qg FILE button (10, 14)
qh HOLD switch(33)
qj ERASE button (18)
qk VOL (volume) control(15)
ql DIGITAL ?/a connector for
connecting to a computer (5)
When the
DIGITAL ?/a
connector cover is
accidentally
detached, attach it
as illustrated.
2
1
