REV 468344 Instructions De Montage page 8

GB
Manual Instruction
Ausstattung:
Transmission range:
Chime function:
Frequency:
Battery:
Features:

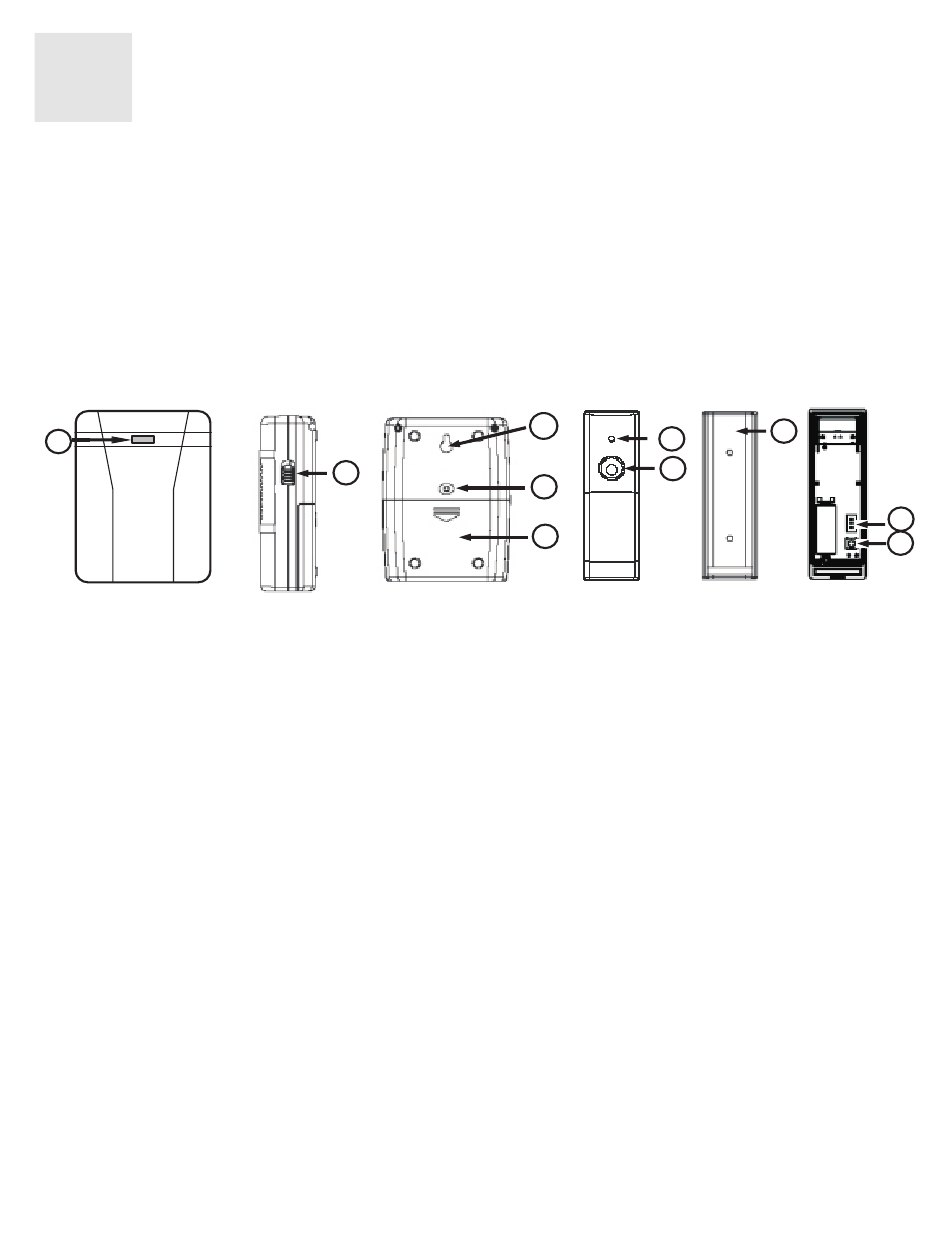

3
#1 On/Off
#2 SET Button
#3 LED indicator
#4 Battery Case
#5 Push button
#6 LED indicator
#7 Battery Case
#8 SET Code button Push to generate new code
#9 3 pin plug
#10 hang-up lug
Replace the batteries:
Chime unit:
The batteries (3 pieces, 1,5V, type C) are inserted on the backside of the chime,
after the cover #4 (push cover in the direction of the arrow) is opened. Pay
attention to the polarity, which is marked in the battery case.
Push-button:
The batteries (1 piece, 12V, type 23A) is inserted in the push-button, after the
cover #7 (the lock-in on the front of the push-button must be pushed in with
a screwdriver) is opened. Pay attention to the polarity, which is marked in the
push-button. The push-button is delivered with already inserted batteries.
approx. 50m (outdoor)
3 melodies for selection
433MHz
3x1,5V DC type C (receiver / door chime)
1x12V DC type 23A (transmitter / push button)
Ein
1
Aus
On/Off-Button of the door chime
Automatic code search in the case of
interference (32000 coding combinations)
Light on when learning code
Required batteries: 3x1,5V DC type C
Button to activate chime
Light on, when pressing or generating new code
Required batteries: 1x12V DC type 23A
3 melodies for selection
for wall assembl
10
6
5
2
4
7
9
8
