The range must be connected only to the type of gas
for which it is certified. If the range is to be connected to
propane gas, ensure that the propane gas supply tank is
equipped with its own high pressure regulator in addition to
the pressure regulator supplied with the range (See "Step
5: Gas Requirements and Hookup" on page 13.).
NOTE:
The range is designed for flush installation to the back wall.
For a successful installation, it may be necessary to
reposition the gas supply line and the electrical cord as the
range is pushed back to its final position.
-- SUGGESTION: This may be accomplished by carefully
pulling on a rope or twine looped around the gas or
electrical supply line as the range is pushed back into
its final installed position.

Electrical Supply

Installation of the range must be planned so that rough-in of
terminal block for the receptacle or conduit connection will
allow maximum clearance to the rear of the unit.
When the power supply cord or conduit is connected to the
mating receptacle or terminal block cover, the combined
plug/receptacle or terminal block cover/conduit connector
should protrude no more than 2" (51 mm) from the rear
wall. See Figure 5.
Receptacle
2" (51 mm) maximum
when plugged in
Conduit
2" (51 mm)
maximum

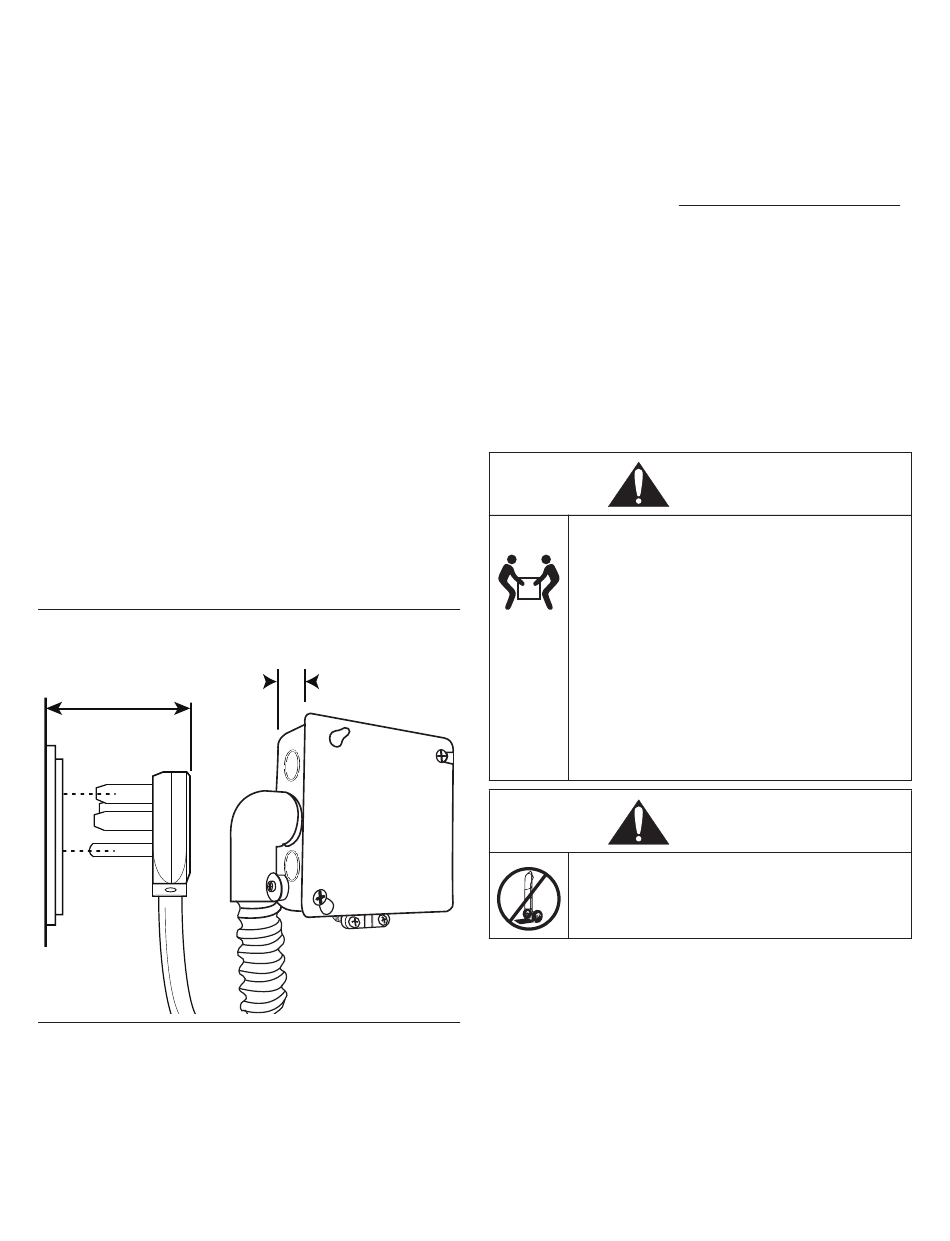

Figure 5: Wall Connection
Refer to Figure 10 on page 16 for location of terminal block
on unit. To minimize binding when the unit is connected to
the receptacle or terminal block, orient the receptacle or
conduit connector, and slide back into position.
When using a receptacle it may be necessary to recess the
receptacle's housing into the rear wall. Refer to Local
Electrical Code to determine the minimum volume for all
electrical / junction boxes. Follow all local electrical codes.
Mount the receptacle securely to a wall stud, then seal
around the receptacle's housing.
NOTE:
Canadian models have power cord supplied with range.
Step 3: Unpacking and Moving
the Range
The unit is heavy and should be handled
accordingly. Proper safety equipment such as
gloves and adequate manpower of at least
two people must be used in moving the range
to avoid injury and to avoid damage to the
unit or the floor. Rings, watches, and any
other loose items that may damage the unit
or otherwise might become entangled with
the unit should be removed.
Hidden surfaces may have sharp edges. Use
caution when reaching behind or under
appliance.
Do not use a hand truck or appliance dolly on
the back or front of the unit. Handle from the
side only.
CAUTION:
CAUTION:
English 9
