This manual outlines all necessary instructions for the safe and the correct operation of the TOPAL
accessories.
For safety's sake and efficiency of the equipment, you must become familiar with these instructions and
adhere to them before any use of the equipment.
The accessory can be used only by skilled and entitled personnel
Never transport people using this equipment or its accessories.
ƒ
Never exceed the working load limit WLL (see engraving).
ƒ
ƒ A minimum load of 5% of the WLL must be respected
ƒ Never weld on the equipment or alter it.
Always check the truck's WLL
ƒ
Never use the equipment for any lifting other than the type it is designed for.
ƒ
Never go under the load.
ƒ
ƒ When laying down a load, the object must be stable
ƒ Regularly check the correct condition of the equipment (see Storage & Maintenance paragraph).
ƒ Lifting operations can only be done when the environment is free of obstacles
ƒ Only TRACTEL SOLUTIONS spare parts must be used.

DESCRIPTION AND APPLICATIONS OF THE EQUIPMENT

Handling accessory fitted onto the tines of fork lift trucks to suspend a clamp or load via an attachment
point on the beam
The technical sheet T 6033 is at your disposal for technical characteristics and more
ƒ Position the tines of the fork lift truck approximately
50 cm from the floor.

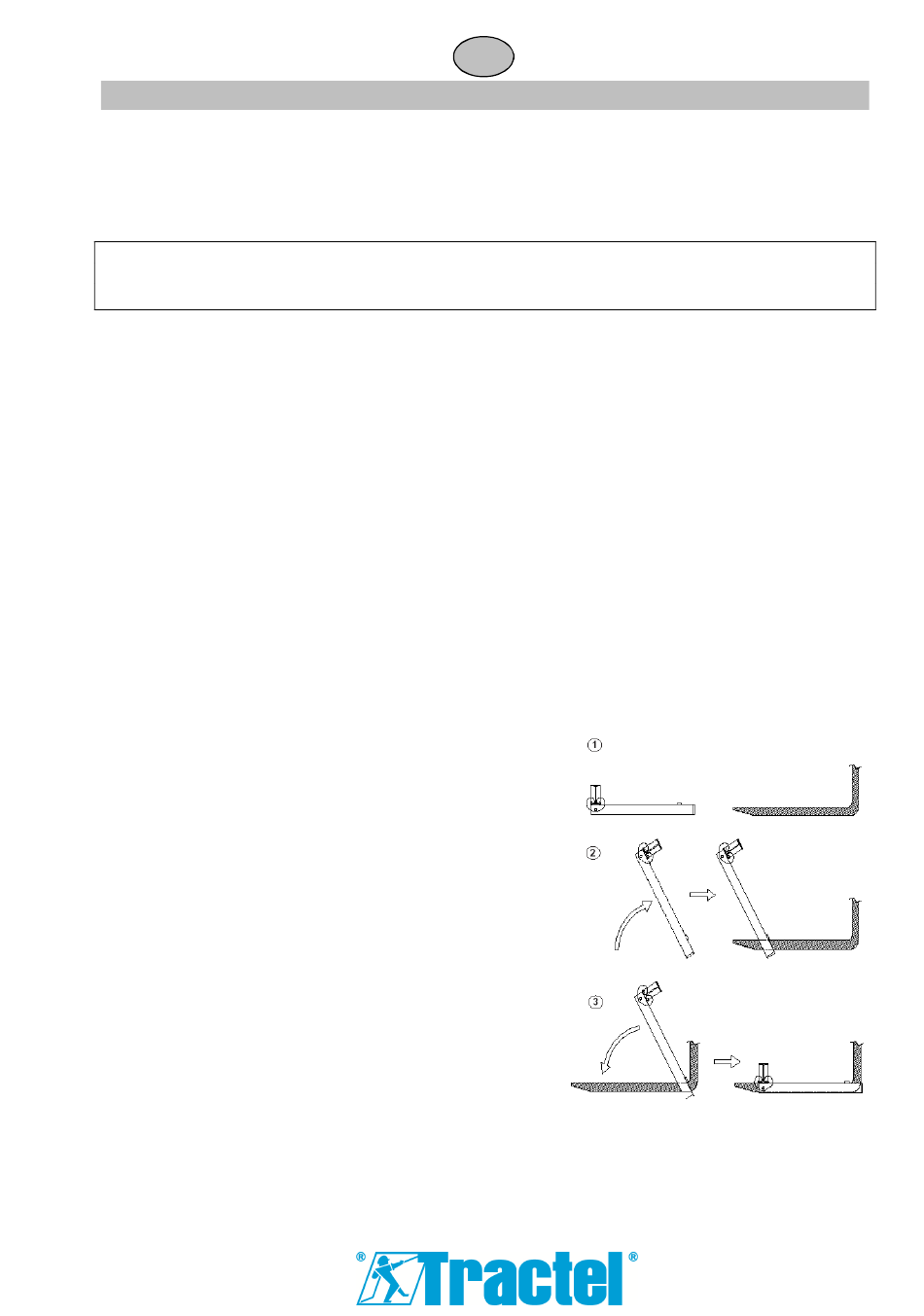

Take a beam with the attachment point at the
ƒ
bottom left (diagram1).
ƒ Incline it (sketch 2).
ƒ Fit the beam into the tines (sketch 3).
Allow the beam to rest on the tines when the bend of
ƒ
the tines is reached at the far right-hand end of the
beam.
ƒ With the vertical uprights abutting in the beam,
perform the lifting operation.
Finally suspend a clamp or load from the attachment
ƒ
point of the beam.
