EU Declaration of conformity
Explication of warning symbols
Safety instructions
Unpacking
Correct use
Set-up and Commissioning
Maintenance and cleaning
Accessories
Technical data
Warranty
Explication of warning symbols
General hazard
This symbol identifies information that is of vital importance for safeguarding your health and safety.
Disregarding this information can lead to health impairment and injuries.
This symbol identifies information and notes that are of importance for correct handling of the unit.
Safety instructions
• Read the operating instructions in full before
starting up and follow the safety instructions.
• Keep the operating instructions in a place where they
can be accessed by everyone.
• Ensure that only trained staff work with the appliance.
• Follow the safety instructions, guidelines, occupational health
and safety and accident prevention regulations.
• The stand pillar must be inserted into the baseplate so that the
guide groove is at the back. Other alignments are not permissib-
le, as otherwise the stand can topple over when a unit is moun-
ted on it.
Set up the stand in a spacious area on an even, stable, clean, non-
slip, dry and fireproof surface.
• Any small unevennesses that cause the stand to rock
must be compensated for with the height-adjustable
feet.
• The T 65 D ULTRA-TURRAX
®
dispersion unit must be lifted on to
the guide head of the telescopic stand with the aid of an assis-
tant, and secured with the two screws and toothed lock washers
(supplied), in accordance with the T 65 D ULTRA-TURRAX
®
ope-
rating instructions. The unit must be mounted in front, vertically
above the baseplate; a different alignment is not permissible, as
otherwise the assembly could topple over.
• The overhead stirrer IKA RW 47 D must be lifted on to the guide
head of the telescopic stand with the aid of an assistant, and
secured with the four screws (supplied), in accordance with the
IKA RW 47 D operating instructions. The unit must be mounted
in front, vertically above the baseplate; a different alignment is
not permissible, as otherwise the assembly could topple over.
6
Contents
• This telescopic stand must be fitted with a safety disconnection
device, which stops the unit if the stand is moved upwards when
the unit is operating.
• Switch the unit off before moving the telescopic stand upwards.
• When lowering the telescopic stand, take care that no parts of
the body get between the safety switches (danger of crushing).
• Only switch the unit on when the tool (agitator or dispersion
unit) is in the vessel.
• The handwheel bolt on the stand can come loose due to vibra-
tion, which would lead to the unit moving down. So, check the
tightness of the handwheel bolt regularly when using the unit,
and retighten it if necessary.
• Raise or lower the stand (after slackening the handwheel bolt)
by applying the manual force as close as possible to the stand
pillar. The further the force is applied from the pillar, the more
force you need to apply, plus there is an increased risk of the
equipment toppling over.
• Secure the vessel against spinning round, by using a clamp, for
example.
• Beachten Sie die Betriebsanleitung des Dispergiergerätes T 65 D
ULTRA-TURRAX
®
oder des Rührgerätes IKA RW 47 D!
Check the appliance and accessories beforehand for damage
each time you use them. Do not use damaged components.
Protect the appliance and accessories from bumps and impacts.
EN
• Unpacking
- Please unpack the device carefully
- In the case of any damage a detailed report must be set im-
mediately (post, rail or forwarder
Page
2
6
6
7
7
7
8
8
Use
8
The T 653 telescopic stand is used solely for mounting T 65 D
8
ULTRA-TURRAX
®
dispersion units.
The R 474 telescopic stand is used solely for mounting IKA RW 47
D agitator units.

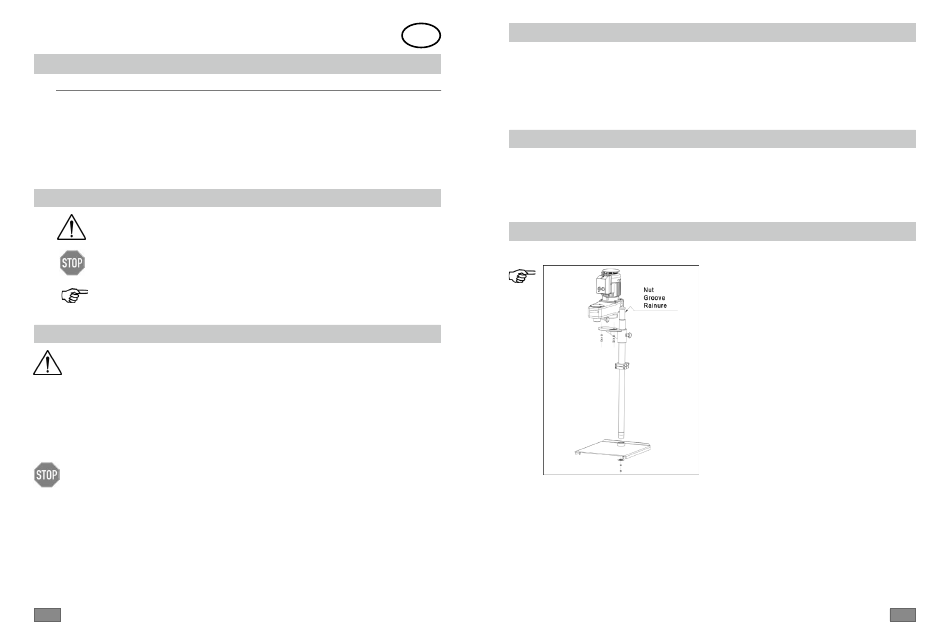

Setting up the stand
The stand pillar is inserted into the baseplate so that the guide
groove is at the back. The black handwheel bolt is then on the
right. The stand pillar is then secured from below with a hexagon
nut, toothed lock washer and a large shaped washer.
All four rubber feet are height-adjustable, so the stand can be set
up so it does not rock, even on uneven floors.
In addition, a hole is provided in the baseplate of the R 474 tele-
scopic stand, for screwing on a 16 mm diameter support rod. A
clamp can be fixed on this rod.
Unpacking
• Delivery scope
Telescopic stand
- Telescopic stand corresponding to
the type ordered T 653 oder R 474
- Operating instructions
For technical reasons associated with shipping, the telescopic
stand is supplied stripped down, as pre-assembled modules..
Correct use
The safety of the user cannot be guaranteed if the appliance is
operated with accessories that are not supplied or recommended
by the manufacturer or if the appliance is operated improperly
contrary to the manufacturer's specifications or if the appliance is
modified by third parties.
Set-up and commissioning
Mounting the unit
The IKA RW 47 D agitator unit or the T 65 D ULTRA-TURRAX
persion unit are placed on the arm of the stand and bolted on from
below with the bolts supplied. The help of an assistant is needed
for screwing on the T 65 D ULTRA-TURRAX
The cable clips included in the delivery package are required for
fixing the power cable of the unit.
Safety disconnection device
The height-adjustable telescopic stand must be fitted with a safe-
ty disconnection device. We recommend installation of the SI 400
safety limit switch together with the SI 474 clamp support. You will
find information on their installation in the operating instructions
of the units.
Commissioning
The stand can be raised and lowered by loosening the handwheel
bolt. The integral gas shock absorber helps to keep the manual
force needed for this as light as possible. The manual force must
be applied close to the stand pillar, so that the stand can be raised
and lowered with only a slight use of force. If the force for raising
or lowering is applied at a distance from the stand pillar, a turning
moment results, leading to increased friction on the pillar guide. As
a result, the stand can only be moved with great difficulty, or can-
not be moved at all. Besides this, the danger of the stand toppling
over is increased.
When the unit is at the correct height, the handwheel bolt is tigh-
tened by hand. Check the tightness of the handwheel bolt regular-
ly when using the unit, and retighten it if necessary.
®
dis-
®
dispersion unit.
