Attention: Leave at least 10 mm between all- glass doors without
a centre gasket in the closing position, in order to avoid contact
between the glass wings.

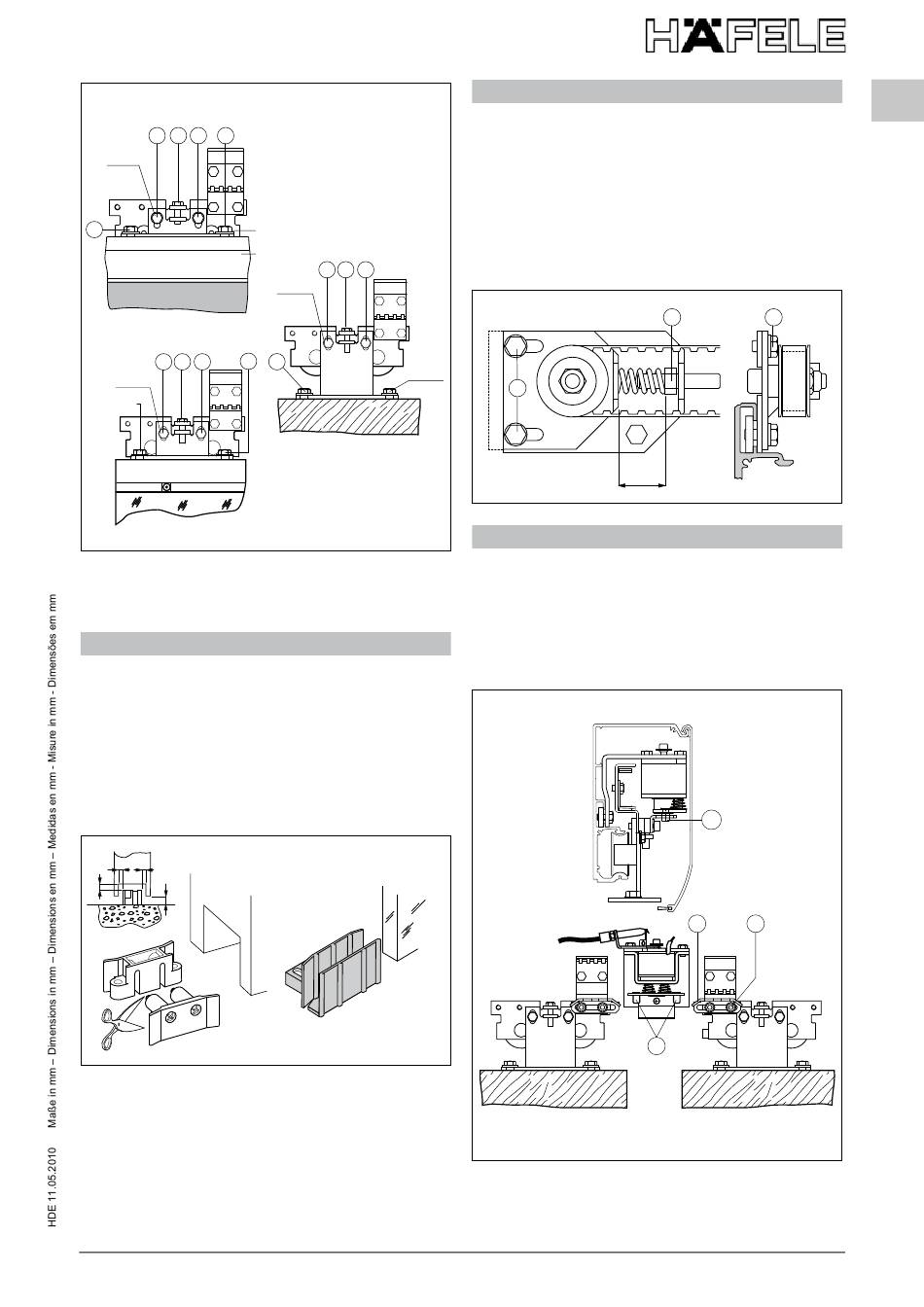

3.5 FLOOR GUIDES
The floor guides must be manufactured of antifriction material,
such as PVC, NYLON, TEFLON.
It is preferable that the length of the guide is not greater than the
overlap of the movable and fixed wing and does not project from
the passage space. The running surface must be smooth over the
entire length of the wing.
(KP515AB) Floor guide for framed door wing (is reduced to the
required size).
(KP369) Floor guide for all-glass door wing.
1 1
5
10
M8x14
P833
M K K
M6x10
J
M8x14
3.6 TIGHTENING THE TOOTHED BELT
-
Loosen the screws [F] and tighten [G] up to the maximum
extension of the spring.
-
Loosen the screws that attach the defelction unit to the running
profile.
-
Manually pull the entire deflection unit to the left and attach it on
the running profile.
-
Loosen the screw [G] until the spring has reached a compressi-
on of 20 mm for transom length (LT) <2600 or 22 mm for cover
length (LT) >2600.
-
Lock the setting with the screws [F].
F
20÷22
3.7 INSTALLATION OF THE LOCKING DEVICE
-
Put the wings in closed position.
-
Attach the locking device to the running gear.
-
Centre the point of contact between [N] and the block stopper
bracket [P] by means of the slotted guides [Q] and manually
check the proper function of the locking device.
-
Lightly lubricate the bolt [N] and the slanted part of the
counterplate [P].
G F
N
P Q
N
