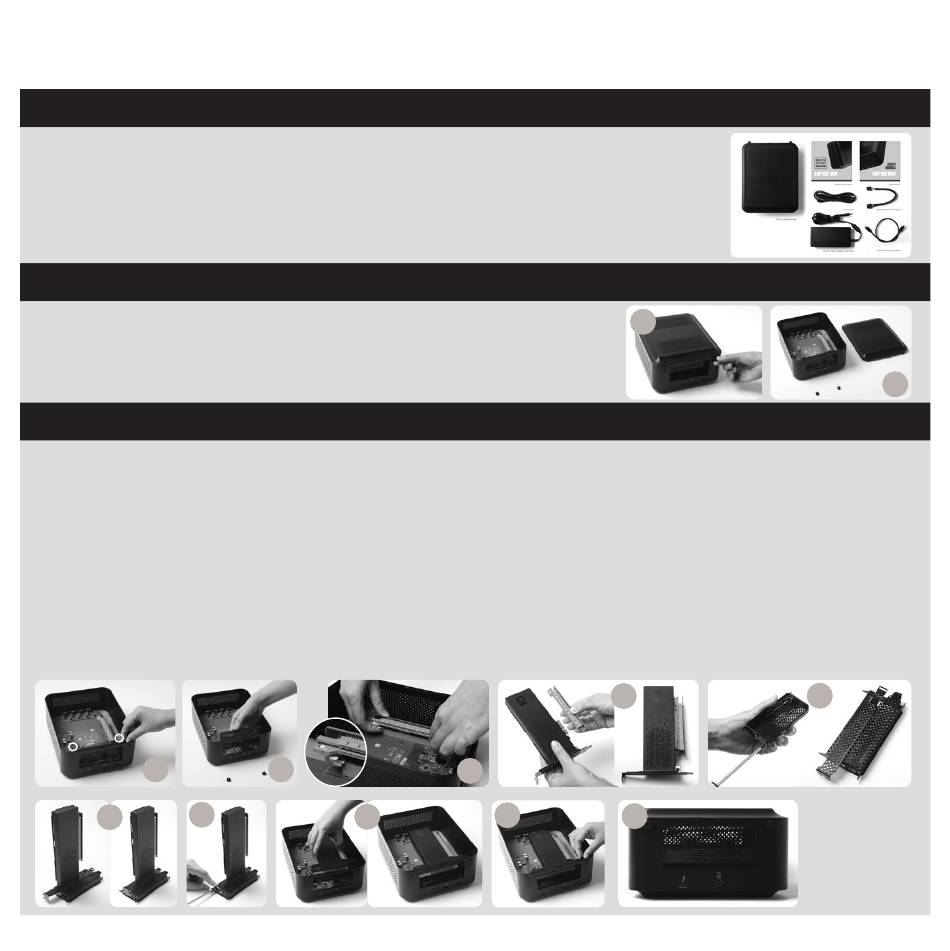

QUICK START GUIDE
PAC K AG E C O N T E N T S
• 1 x ZOTAC AMP BOX MINI
• 1 x 19V DC Power Adapter (230Watt)
• 1 x Power Cable
• 1 x 8pin External Power Cable
• 1 x User Manual
C U S TO M I Z I N G YO U R ZOTAC A M P B OX M I N I
1. Remove the two rear thumb screws.
2. Gently lift up and remove the cover.
I N S TA L L I N G A S I N G L E - S LOT C A R D
1. Remove the two thumb screws from the frame bracket.
2. Gently lift up and remove the frame bracket.
3. Press the lever of riser card and remove the riser card from the PCIe slot.
4. Install the riser card to your card (taking PCIe SSD as an example).
5. Remove the lower screw and remove the lower single-slot bracket.
6. Install the single-slot card to the frame bracket as shown below.
7. Install the screw.
8. Insert the frame bracket with single-slot card into the Box, and press the riser card into the PCIe
slot.
9. Install the thumb screws.
10. Reinstall the cover and the rear thumb screws.
