Concise User's Guide

RAID Setup Procedure

Part I: BIOS
1. Start-up your computer and press F2 to enter the BIOS.
2. Go to the Advanced menu, select SATA Mode Selection and
press Enter.
3. Select RAID.
4. Press Esc and go to the Boot menu.
5. Set the CD/DVD-ROM Drive (make sure the Microsoft
Windows OS disc is inserted) as the first device in the boot
order from the Boot menu.
6. Select Exit Saving Changes from the Exit menu (or press
F10) and press Enter to exit the BIOS and reboot the
computer.
6 - RAID Setup
Part II: Intel Matrix
1. Press Ctrl + i to enter RAID configuration menu.

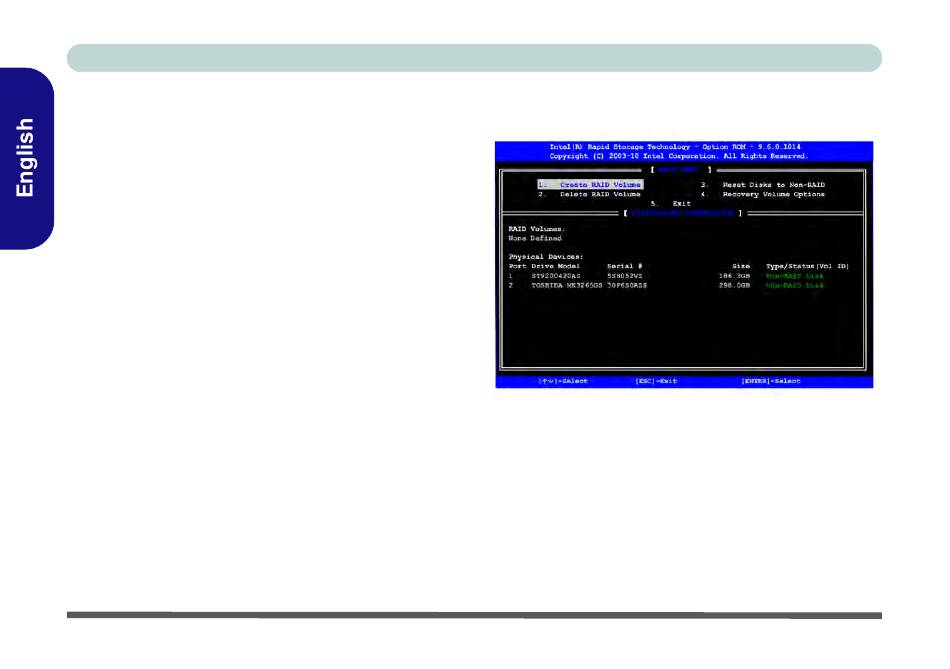

Figure 2 - Intel(R) Matrix Storage Manager Option ROM
2. Select 1.Create RAID Volume and press Enter.
3. Type the RAID volume name and then press Tab or Enter to
advance to the next field.
4. Specify (use the up and down arrow keys) the RAID level
(RAID 0 or RAID 1 or RAID 5 or Recovery - see
page 5) and then press Tab or Enter to advance to the next
field.
5. Press Enter and the system will select the physical disks to
use.
Table 1 on
