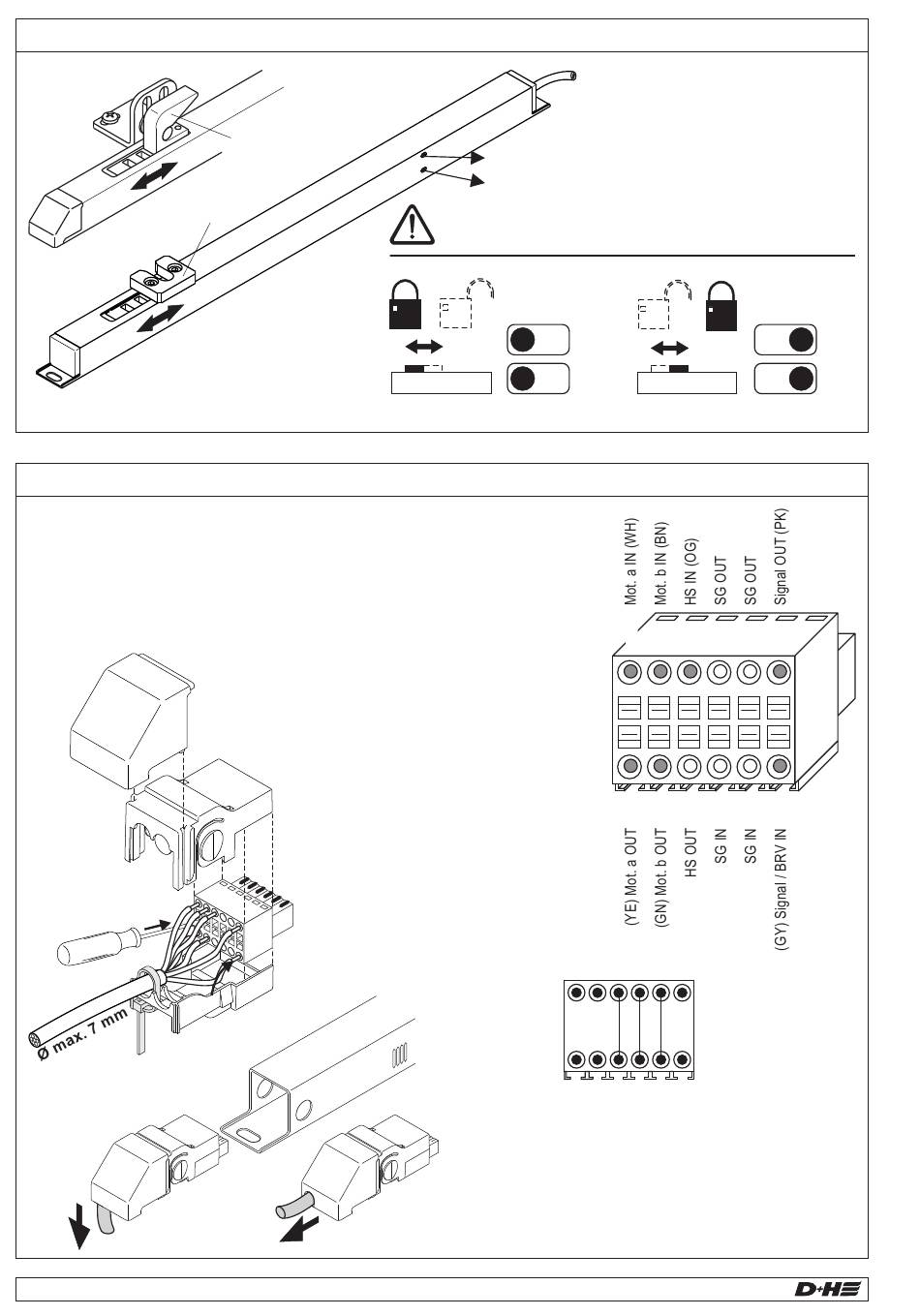

Adjustment of locking/ unlocking direction
PI-VLD

Plug connection

Please note:
When delivered, the drive is prepared with a "BRV" status signal via
junction-box for the connection of a window drive (page 16). For other
connection variants some strands need to be cut. (page 14/15)
< optional >
6/16
VLD 51/038
RE-VLD
Factory-set
Clamping range :
0,2 ... 1,0 mm²
(solid or flexible)
(WH) white
(BN) brown
(OG) orange
(YE) yellow
(GN) green
(PK) pink
(GY) grey
S1
S2
Locking direction is the direction in which
both the switches point!
S1
S2
Loop through terminals:
For looping through of e.g. alarm
contacts or drive- position
indicators, the floating connecting
terminals (position indicator IN,
position indicator OUT) can be
maximally loaded with 60 V / 1 A.
English
1 2 3 4 5 6
7 8 9 10 11 12
99.821.62 4.1/09/13
S1
S2
