Please consider that unauthorized modifications on the device are forbidden due to safety reasons!
If this device will be operated in any way different to the one described in this manual, the product may suffer
damages and the guarantee becomes void. Furthermore, any other operation may lead to dangers like
short-circuit, burns, electric shock, lamp explosion, crash etc.

RIGGING

The device can be installed in a rack or on a plane surface.

Rack-installation

This device is built for 19" racks (483 mm). The rack you use should be a Double-Door-Rack where you can
open the frontpanel and the rear panel. The rack should be provided with a cooling fan. When mounting the
device into the rack, please make sure that there is enough space around the device so that the heated air
can be passed on. Steady overheating will damage your device.
You can fix the device with four screws M6 in the rack.

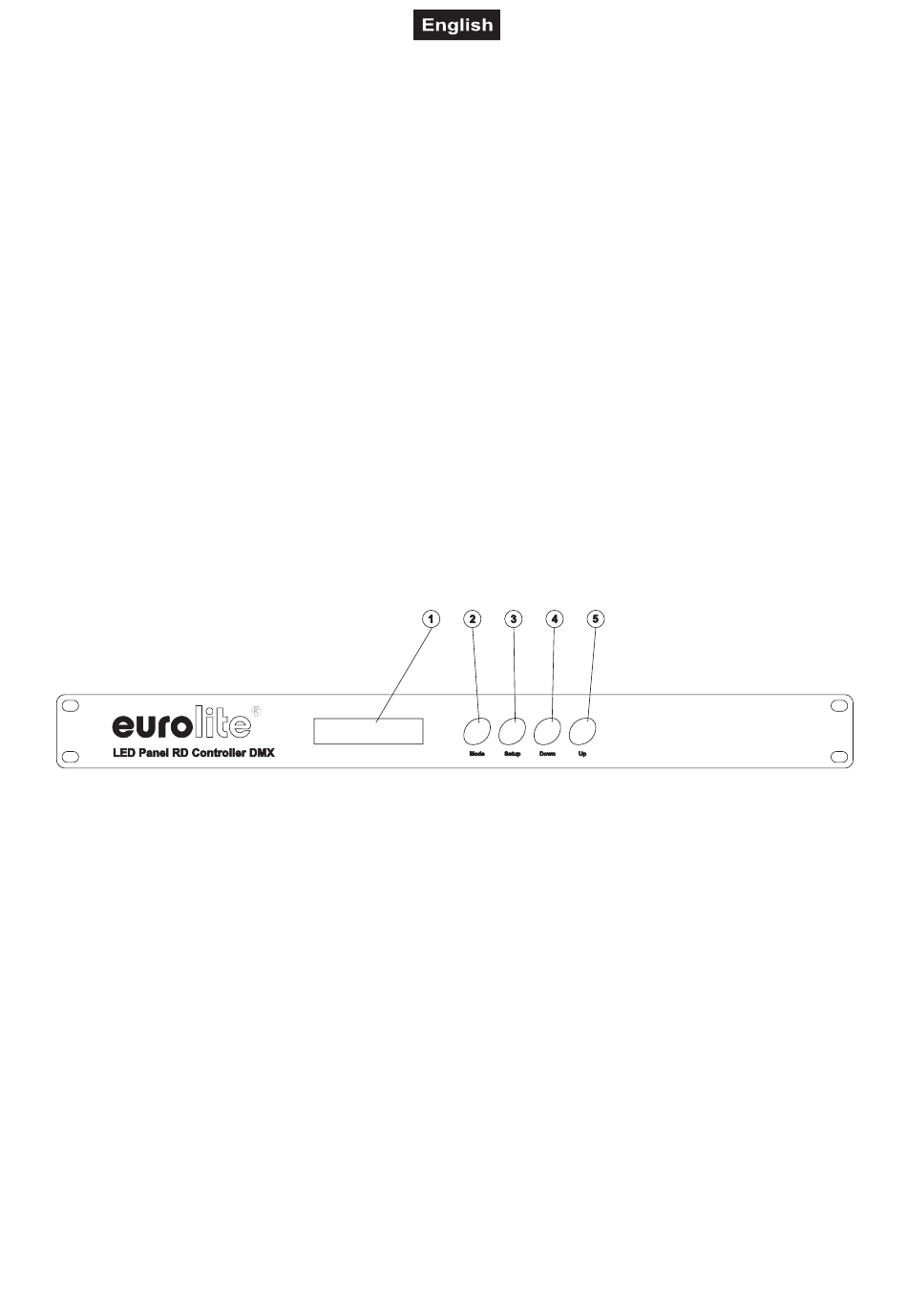

OVERVIEW

(1) Display
(2) MODE button
(3) SET UP button
(4) DOWN button
(5) UP button
