3 - UNPACKING YOUR SYSTEM

Carefully remove your unit from its packaging. Inspect for damage. If damage is noted, contact your shipping carrier and file a claim.
Assemble the Unit
1. Use a 13 mm nut wrench to remove the 2 mounting lugs under the unit from the transport pallet.
2. Carefully move the unit down from the transport pallet. Be 2 people.
3. Before operating on the unit, be sure it is turned off and the cord is unplugged from the wall.
4. Put on Personal Protective Equipment.
5. For negative-air setup, do these steps. If used as an air purifier, skip to step 6.
a. Fix the transition plate on the top of the unit using the provided screws.
b. Use a compression clamp to attach Ø 250 mm round flexible ducting (supplied by your local dealer) to the transition plate.
c. Run the flexible ducting as recommended by the mechanical plan and attach to a transition piece (ceiling register box, etc.,
purchased or fabricated on site) to complete a path for the air to exhaust from the negative-air pressure area. Caulk or tape all
seams. Run the flexible duct per applicable codes and requirements, with no hard bends or obstructions.
6. Remove the bottom door panel on the left side of the unit.
7. Inspect the filters and make sure they are well stacked and have not been dislodged or damaged during shipping. Make sure the
filter locking system is well tight.
8. Replace the door panel.
9. Plug the unit into a grounded outlet.

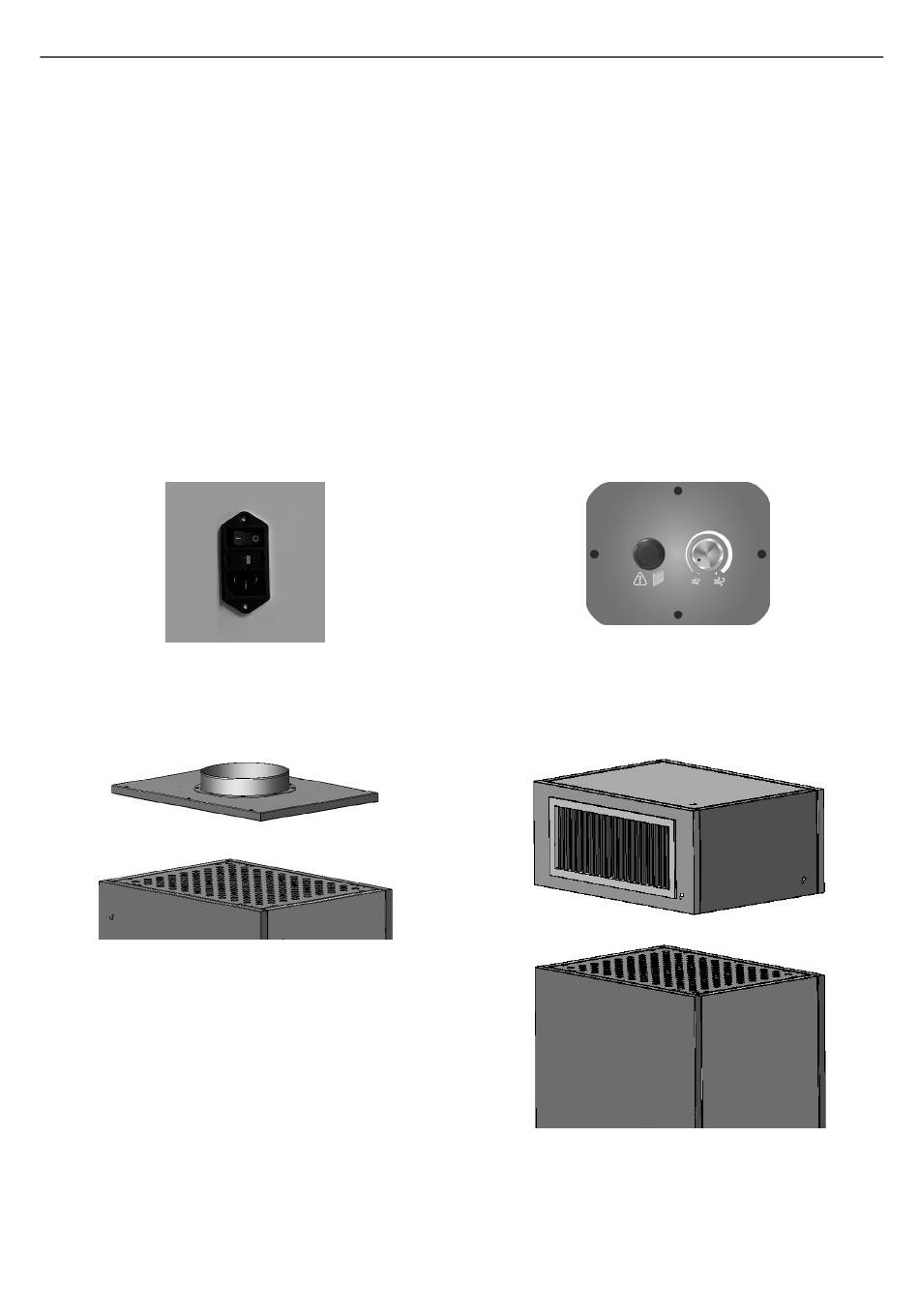

Fig. 2 - ON/OFF switch / C14 Cable plug
Fig. 4 - Transition plate
Fig. 3 - Control Panels
Fig. 5 - Diffuser
5
