Klipsch REFERENCE PREMIERE RP-280F Mode D'emploi page 7

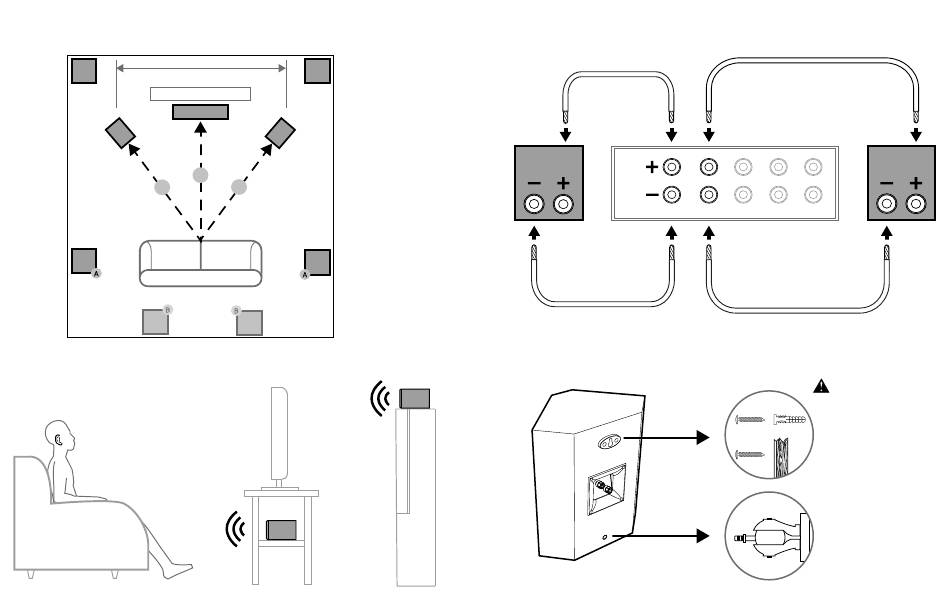

FIGURE 1
SPEAKER PLACEMENT IN LISTENING AREA
6' - 15'
S
Sub
TV
S
L
L
X
X
SL
SL
Optional Side Surround Placement (Option A is preferred)
SL
SL
FIGURE 2
CENTER CHANNEL
Front Right
S
Sub
S
C
TV
R
C
R
Y
Z X=Y=Z
Y
Z X=Y=Z
SR
SR
SR
SR
OR
BELOW
Front Right Front Left
Front Left
FIGURE 3
STANDARD CONNECTIONS
FIGURE 4
WALL MOUNTING
ABOVE
SL
SR
Front Right Front Left
VIA KEYHOLE
OR
VIA THREADED INSERT
CAUTION!
Do not use keyhole
for ceiling mounting!
#10
2.5" - 3" panhead wood screws
Mount in wall stud or use
anchors - leave 1/4" exposed
3/8-16 x 0.5"
*Wall brackets not included
